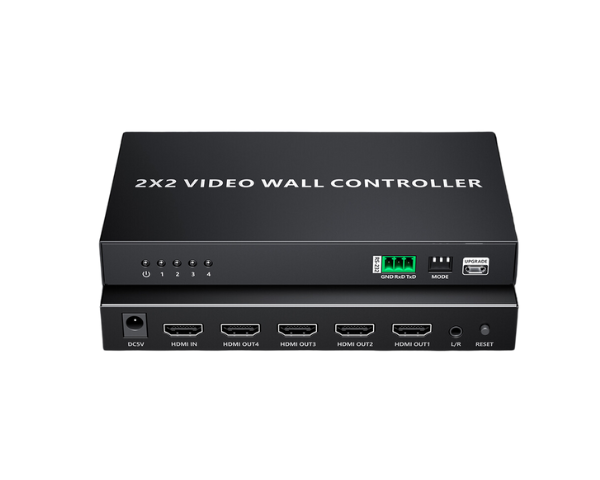

Video Wall Controller 1080P@60Hz LKV104VW

Model: LKV104VW
SKU: 20-09-0022
In Stock
149,00 €
In Stock
Add to wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
Other people want this. 3 people have this in their carts right now.
SKU: 20-09-0022 Categories: ,
  • 1 HDMI INPUT / 4 HDMI OUTPUTS
  • Supports 1×1/1×2/1×3/1×4/2×2 SCREEN MODES

Description

Large Screen Video Wall Controller with adjustables screen LKV104VW

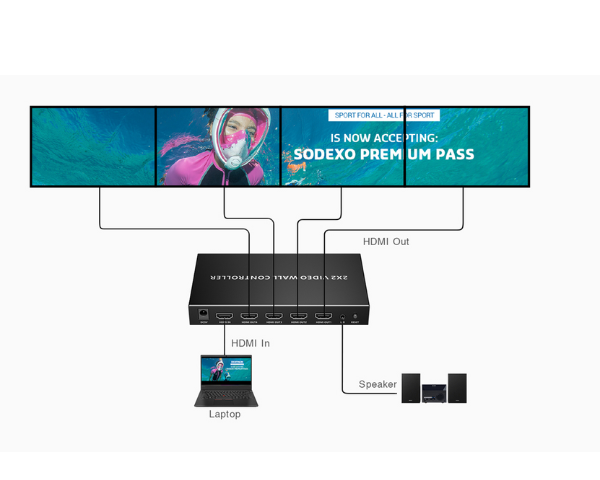

This product is a 1-in-4-out video wall controller, supporting one HDMI source input and four HDMI outputs. It supports 1×1/1×2/1×3/1×4/2×2 splicing modes, which you can set by RS-232 or dip switch.

You can flexibly adapt the product to different installation requirements, making it suitable for security monitoring, rail transit, broadcasting, smart cities, home theatre, training, and other fields.



Features

  • Supports 1 HDMI signal input and 4 HDMI signal output
  • Support up to 1920×1200@60Hz resolution downwards compatible
  • Support a variety of splicing modes such as 1×1 / 1×2 / 1×3 / 1×4 / 2×2
  • Support dip switch switching splicing mode
  • Support RS-232 control instruction
  • Support 3.5mm left/right channel audio output
  • Support 180 degree rotation of HDMI 1/2 Display image in 2×2 mode

20-09-0022

SKU: 20-09-0022

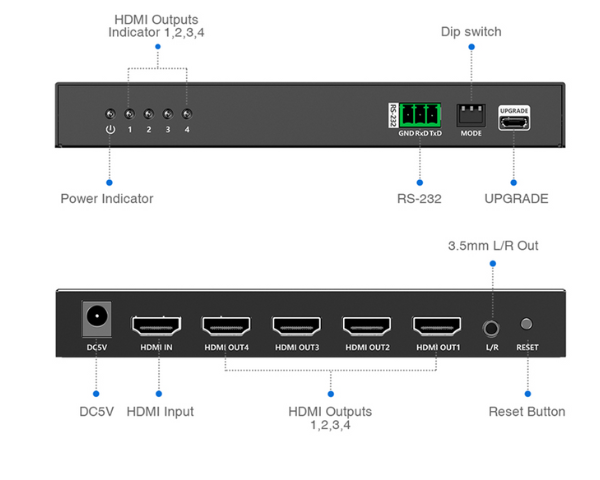

HDMI Input : 1x HDMI
HDMI Output : 4x HDMI
Compatibility : HDMI 1.4, HDCP 1.4
Resolutions : 1080P@60/50/30/25/24Hz, 720P@60/50Hz, 576P@50Hz, 480P@60Hz, 1920x1200@60Hz, 1680x1050@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x960@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1024x768@60Hz, 800x600@60Hz, 640x480@60Hz
HDMI Output : PCM
Mode : 1x1/2x1/1x2/2x2/3x1/1x3/4x1/1x4
Splice Settings : DIP Switch RS-232 (GND/ RxD/TxD)
Default baud rate: 9600 Only when the dip switch is set to ‘111’ can the splicing mode be switched by RS-232 instruction
Power Supply : DC5V/1A
Power Consumption : ＜4W
Working temperature : -20℃~60℃
Storage temperature : -30℃~70℃
Humidity : 0~90%RH（No condensation）
Weight : 381g
Color : Black
Dimensions : 160(L)*90(W)*20.6(H)mm
Protection : ESD protection

Additional information

HDMI Distribution Mode

WALL CONTROLLER
Resolution

1080P

Manual

LKV724P User Manual
