149221 TELEVES ”V” ZENIT 5G LTE (21-48)

Model: 149221
SKU: 03-01-0013
In Stock
49,90
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
Other people want this. 1 people have this in their carts right now.
SKU: 03-01-0013 Categories: ,

Download PDF

5G LTE UHF ANTENNA TELEVES





Description

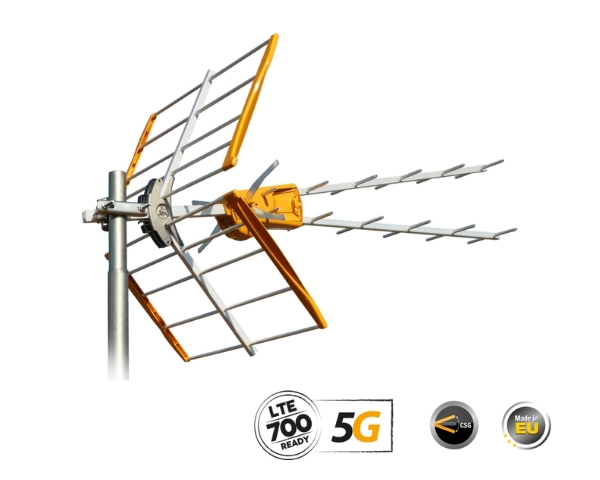

149221  Televes ”V” ZENIT 5G LTE UHF antenna (21-48), has a V-type structure with 10 elements dihedral angled reflector. It consists of two vertically stacked Yagi in phase, which results in a compact antenna thanks to its excellent ratio between gain and length. Designed for UHF reception it includes a filtering feature with a high rejection for bands beyond channel 48, without losing flatness in the frequency response of the pass-band (channels 21-48).

The best balance between robustness and compactness
The VZenit antenna has a V-type structure: it consists in two vertically stacked Yagi in phase, which results in a compact antenna thanks to its excellent ratio between gain and length.
For UHF reception it includes a filtering feature with a high rejection for bands beyond channel 48, without losing flatness in the frequency response of the pass-band (channels 21-48). This makes it suitable for the 2nd Digital Dividend (LTE700).

Highlights

  • Quick and secure reflector assembly system
  • Robust mechanics with outstanding performance in vibrating situations
  • Compact: excellent ratio between gain and length
  • Flatness of the frequency response in the UHF band

Discover

  • Built with aluminium (corrosion resistant ) for a long service life, and in ABS plastic for high weather resistance
  • The mast-mounting system utilizes Zamak to provide sturdiness and stability in adverse weather conditions
  • Designed and manufactured in Europe, our products undergo the most stringent quality controls
  • The connection box includes a balun for impedance matching
Bands
UHF
Frequency range MHz
470 ... 698
Channels
21 ... 48
Gain dBi
15
F/B ratio dB
> 23
Wind load (@130Km/h) N 93
Wind load (@150Km/h) N 128
Mast diameter mm 20 ... 50

Additional information

Weight 1,76 kg
Dimensions 74 × 40 × 32 cm
Brand

Televes

Manual

Download Images 149221 V ZENIT 5G MANUAL
Download Images 149221 V ZENIT 5G LEAFLET
Download Images 149221 V ZENIT 5G DoC
