| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n |
| Plug Type | US |
| Interface | 2*10/100Mbps Ethernet Port |
| Button | Pair, Reset, Wi-Fi/Wi-Fi Clone |
| Power Consumption | Maximum: Maximum: 5.6W Typical: 5.2W |
| LED Indicator | Power, Powerline, Ethernet, Wi-Fi |
| Dimensions ( W x D x H ) | 2.1 × 1.6 ×3.7 in (54 × 40 × 94 mm) |
| Range | Up to 300 meters/1000 feet over existing electrical wiring |
| WIRELESS FEATURES | |
|---|---|
| Wireless Security | WPA-PSK / WPA2-PSK, WEP Encryptions |
| SOFTWARE FEATURES | |
|---|---|
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES Encryption Wireless Security: WPA-PSK / WPA2-PSK, WEP Encryptions |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS, UL |

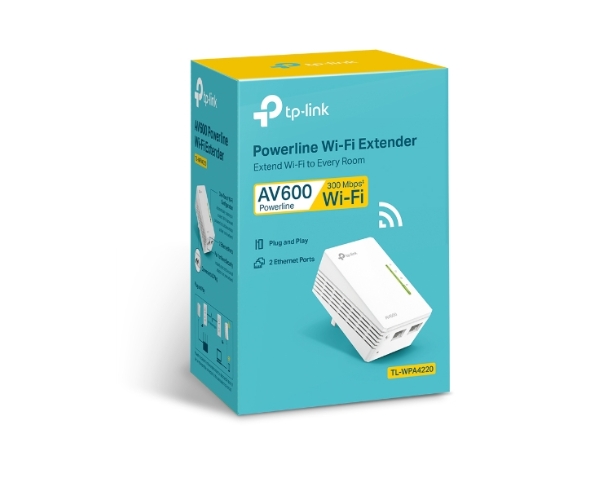

| Package Contents | ● AV600 Powerline Wi-Fi Extender: TL-WPA4220 ● Ethernet Cable × 1 ● Quick Installation Guide |
| System Requirements | Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux |
| Environment | Operating Temperature: 0 °C~40 °C (32 °F~104 °F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Brand | Tp-Link |
|---|

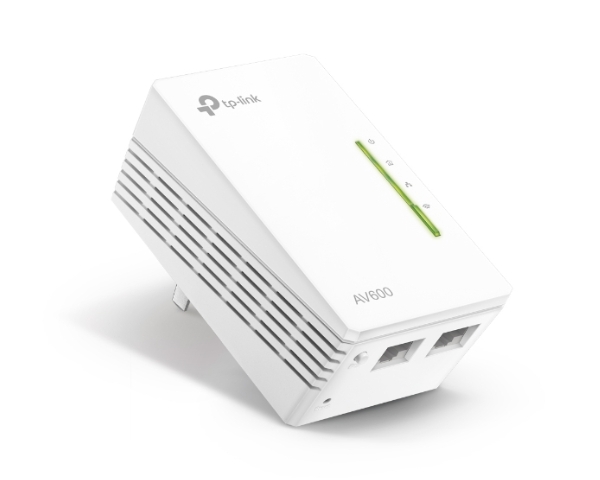

The TL-WPA4220 transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling. With advanced HomePlug AV2, TL-WPA4220, an add-on unit, is perfect for further extending the existing powerline network, providing stable and high-speed data transfer rates of up to 600 Mbps on a line length of up to 300 meters and bringing wired and wireless network simultaneously to anywhere there is a power outlet.
Plug the powerline adapter in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! No configuration is required. Just enjoy the seamless, high speed wired and wireless network.
Press the “Pair” button on both adapters to create a more secure network.
Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.
With two fast Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. One Ethernet cable is included in the box.
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com/support/download/.
