Omada TP-Link Gigabit Outdoor Access Point EAP-225

Model: EAP-225 Outdoor
SKU: 44-01-0008
In Stock
114,90
In Stock
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
SKU: 44-01-0008 Categories: , Tag:
  • AC1200 / 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1167 Mbps Wi-Fi speeds
  • Package include power supply!

Description

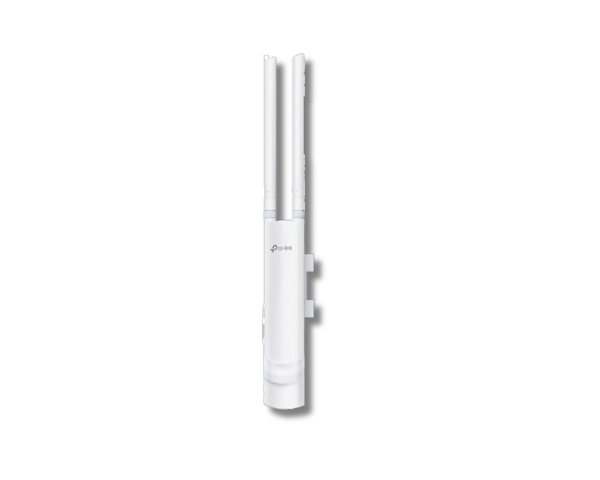

Gigabit Outdoor Access Point EAP225-Outdoor V1 Omada AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Ideal for Outdoor Environment:  IP65 weatherproof enclosure for outdoor Wi-Fi applications.
Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1167 Mbps Wi-Fi speeds.
Long-Range Coverage: This Gigabit Outdoor Access Point is Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Omada Mesh Technology:  Enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.*
PoE Support:  Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.

44-01-0008

Superior Wi-Fi Performance and Long-Range Coverage using Omada TP-Link

  • Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior Wi-Fi booster peroformance and long-range coverage over 2.4GHz and 5GHz wireless bands
HARDWARE FEATURES

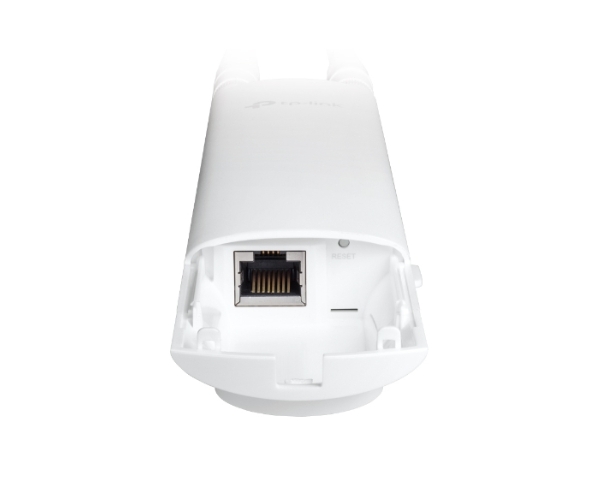

Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
Button Reset
Power Supply • 802.3af/at PoE (Alternative A)
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 10.5 W
Dimensions ( W x D x H ) • 215.7×45×37.7 mm (without antenna & mounting kit)
• 403.8×90.7×55.2 mm (with antenna & mounting kit)
Antenna • 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Weatherproof Enclosure IP65
Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate • 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 5.5, 11Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions • Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents • Access Point EAP225-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Ruber Insert
• Waterproof Antenna
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing



Additional information

Brand

Omada TP-Link

AP Mounting Type

Pole/Mast, Wall Mount

Ethernet Speed

Gigabit

Wi-Fi Generation

Wi-Fi 5

Video

Application Example

Adopting a TP-Link Omada business access point for personal use is not much different than setting it up for business use. Here’s a step-by-step guide on how a normal customer can set up and adopt a TP-Link Omada business access point:

  1. Unboxing and Placing the Device:
    • Take out the access point (AP) from its packaging.
    • Choose a suitable location for the AP. Ideally, it should be centrally located in the area you want to cover.
  2. Connecting the Access Point:
    • Use an Ethernet cable to connect the AP to a PoE (Power over Ethernet) switch, or use the provided PoE adapter if one came with your device. This provides both power and a network connection to the AP.
    • If you’re using a PoE adapter, one end of the Ethernet cable will go into the AP, and the other end into the “OUT” port of the PoE adapter. Then connect another Ethernet cable from the “IN” port of the PoE adapter to your router or switch.
  3. Setting up the Omada Controller:
    • The Omada system uses a software-based controller to manage the APs. Download the Omada Controller software from the TP-Link website.
    • Install and run the Omada Controller on a computer that’s connected to the same network.
    • Follow the on-screen instructions to set up the controller. This will involve setting a username and password and some initial configurations.
  4. Adopting the Access Point:
    • Once the Omada Controller software is running, it should automatically detect your AP. If it’s the first time the AP is being set up, it will appear as “Pending” or “Ready to Adopt.”
    • Click on the AP and choose “Adopt.” This will incorporate the AP into your network and allow the Omada Controller to manage it.
  5. Configuring the Access Point:
    • After adopting, click on the AP again in the Omada Controller interface.
    • You can now configure various settings like the SSID (network name), password, radio channels, and more.
    • Apply the settings. The AP will reboot and start broadcasting the SSID you’ve set.
  6. Advanced Configurations (optional):
    • Omada business access points offer several advanced features suitable for businesses like multiple SSIDs, VLANs, guest networks, bandwidth control, and more. Explore these options if you want more granular control over your network.
  7. Mobile Management (optional):
    • TP-Link offers the Omada app which you can install on your smartphone. This allows you to manage and monitor your APs on-the-go.

Remember to periodically check for firmware updates for both the AP and the Omada Controller software to ensure that you’re running the latest security and performance enhancements.
