Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out SG2005P-PD
- PoE++ In
- 4 PoE+ Output Ports
- Up to 64 W PoE Budget
- Outdoor Weatherproof
- Centralized Cloud Management
Only 2 left in stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

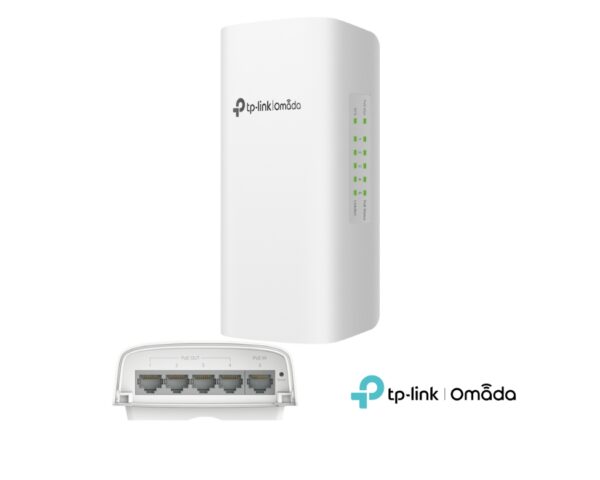

The TP-Link Omada SG2005P-PD is a compact outdoor-managed Gigabit PoE passthrough switch featuring 1 PoE++ input port and 4 PoE+ output ports. Designed for outdoor surveillance, wireless networking, and remote deployments, it supports PoE transmission up to 200 meters, cloud management through Omada SDN, advanced Layer 2+ features, VLANs, QoS, ACL security, and IP55 weatherproof protection.
Technical Features
- 1 Gigabit PoE++ Input Port
- 4 Gigabit PoE+ Output Ports
- Up to 64W PoE Budget
- 200m Extended PoE Distance
- IP55 Weatherproof Housing
- Cloud Management via Omada SDN
- Static Routing
- VLAN Support
- Advanced QoS
- ACL Security
- IPv4 & IPv6 Support
- Outdoor Pole & Wall Mounting
- Fanless Design
Technical Details
- Standards & Protocols
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3x
- IEEE 802.1d
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1q
- IEEE 802.1p
- IEEE 802.1x
- Interfaces

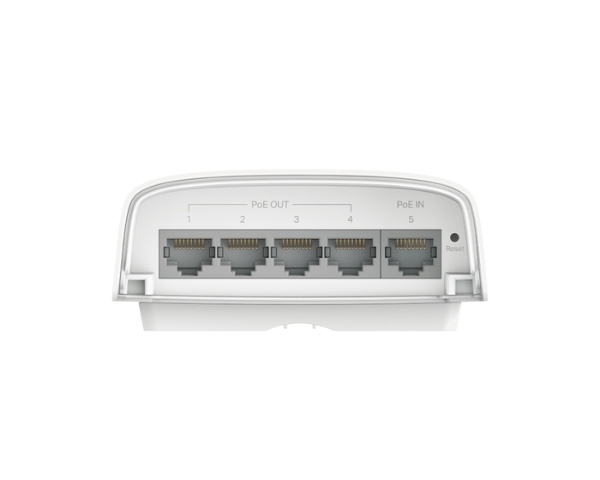

- 1 × 10/100/1000 Mbps RJ45 PoE Input Port (802.3af/at/bt)
- 4 × 10/100/1000 Mbps RJ45 PoE Output Ports (802.3af/at)
- Network Media
- 10BASE-T: UTP Category 3, 4, 5 (Max. 100m)
- 100BASE-TX / 1000BASE-T: UTP Category 5, 5e Or Above (Max. 100m)
- Fan
- Fanless Design
- Power Supply
- Powered By IEEE 802.3af/at/bt PoE Source
- PoE Features
- PoE Input Port: Port 5 (802.3af/at/bt)
- PoE Output Ports: Ports 1-4 (802.3af/at)
- 64W Budget With 802.3bt Type 4 (90W Input)
- 44W Budget With 802.3bt Type 3 (60W Input)
- 19W Budget With 802.3at Input
- 6W Budget With 802.3af Input
- Dimensions
- 100 × 38.5 × 170 mm
- Power Consumption
- Maximum: 71.5W
- Heat Dissipation
- 243.99 BTU/hr
- Performance
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB
- Quality of Service (QoS)
- 802.1p CoS / DSCP Priority
- 8 Priority Queues
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Configuration
- Bandwidth Control
- Port / Flow-Based Rate Limiting
- Storm Control
- Broadcast / Multicast / Unknown-Unicast Control
- L2 & L2+ Features
- 32 IPv4 / IPv6 Interfaces
- Static Routing (32 IPv4 / IPv6 Routes)
- DHCP Server
- DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Static ARP
- Proxy ARP
- Gratuitous ARP
- Static Link Aggregation
- 802.3ad LACP
- Up To 8 Aggregation Groups
- STP / RSTP / MSTP
- BPDU Protection
- Root Protection
- Loopback Detection
- 802.3x Flow Control
- Port Mirroring
- CPU Mirroring
- DLDP
- LLDP / LLDP-MED
- Multicast Features
- IGMP Snooping v1/v2/v3
- IGMP Querier
- MVR
- Multicast Filtering
- MLD Snooping v1/v2
- 511 Shared IPv4/IPv6 Multicast Groups
- VLAN Features
- 802.1Q VLAN
- Up To 4K VLAN Groups
- MAC VLAN
- Protocol VLAN
- Voice VLAN
- GVRP
- Access Control Lists (ACL)
- Support Up To 230 Entries
- Time-Based ACL
- MAC ACL
- IPv4 ACL
- IPv6 ACL
- Combined ACL
- Permit / Deny Rules
- Rate Limiting
- Traffic Redirection
- QoS Remarking
- Port Binding
- VLAN Binding
- Security Features
- AAA Authentication
- 802.1X Authentication
- RADIUS Support
- MAB Authentication
- Guest VLAN
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- IP Source Guard
- IPv6 Source Guard
- DoS Protection
- Port Security
- Port Isolation
- HTTPS Management
- SSH Management
- IPv6 Features
- Dual IPv4 / IPv6 Stack
- MLD Snooping
- Neighbor Discovery (ND)
- Path MTU Discovery
- ICMPv6
- TCPv6 / UDPv6
- DHCPv6 Client
- Ping6
- Traceroute6
- IPv6 SSH
- IPv6 SNMP
- IPv6 SSL
- Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
- Cloud Access
- Zero-Touch Provisioning
- Web GUI
- CLI
- SNMP v1/v2c/v3
- SNMP Trap / Inform
- RMON
- CPU Monitoring
- Cable Diagnostics
- EEE
- SNTP
- System Log
- Certifications
- CE
- FCC
- RoHS
- Environment
- Operating Temperature: -40°C To 60°C
- Storage Temperature: -40°C To 70°C
- Operating Humidity: 10%–90% RH Non-Condensing
- Storage Humidity: 5%–90% RH Non-Condensing
Package Contents
- SG2005P-PD
- Mounting Kits
- Installation Guide
| Manufacturer | Omada TP-Link |
|---|---|
| Speed | Gigabit |
| Switch Type | Cloud Managed |
| Device Total Ports | 5 |
| Power over Ethernet (PoE) | PoE+, PoE++ |
| POE Budget | 64W |
| POE Switch | Yes |
| POE Ports | 4 |
