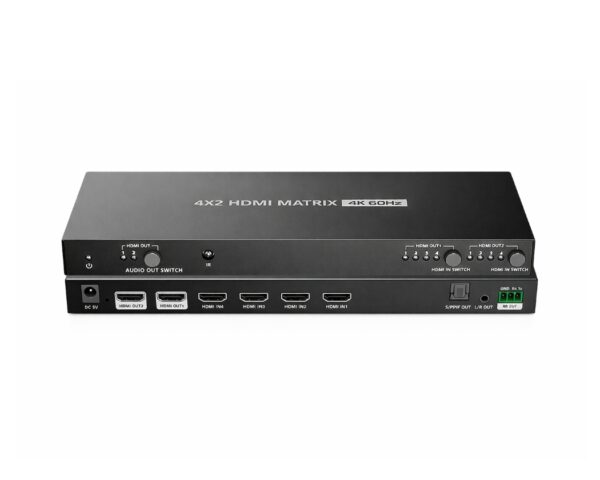

This 4-in 2-out HDMI™ matrix switch, which can switch 4 HDMI™ input signals to 2 HDMI™ displays as required. It supports up to 4096×2160@60Hz HDR resolution, with multiple switching methods (IR remote control, buttons, RS-232) to flexibly match input and output devices. HDMI™ outputs support auto down-scaling. Additional audio output is supported through the S/PDIF port and stereo jack. This device is a reliable, ultra-high-definition video transmission solution widely used in security monitoring, education and training, exhibition and broadcasting, command center, and other scenarios.
Key Features:
- Supports 4096 × 2160 (4K) resolution
- HDR10 support
- Supports widescreen resolutions
- Audio extraction function
- Multiple control methods
- Auto down-scaling
- Power-off memory
- 24/7 continuous operation support
Highlights:

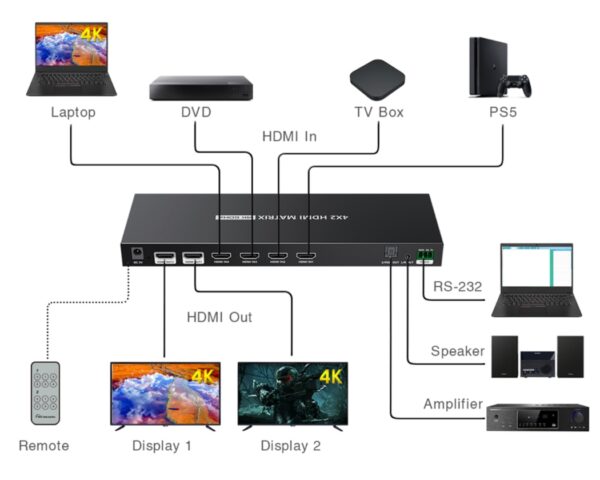

- 4K Ultra HD Content, Enjoy Visual Feast – Allows easy switching or splitting of four HDMI sources with resolutions up to 4096 × 2160 @ 60Hz to two different displays.
- Supports HDMI 2.0, HDCP 2.2, HDR10, and 3D, delivering significantly improved image quality and a superior viewing experience for your content.
- More Widescreen Resolutions – Supports ultra-widescreen resolutions including: 3440×1440, 2560×1440, 2560×1080, 2048×1080, 1920×1200, and 1920×1440.
- Audio Extraction Feature – Utilizes the audio extraction function to separate audio from HDMI source signals and send it to an external audio system via SPDIF Optical or 3.5mm L/R output. Supports multiple audio formats, including: LPCM 7.1,DTS-HD / DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD 7.1, Dolby Digital, Dolby Atmos

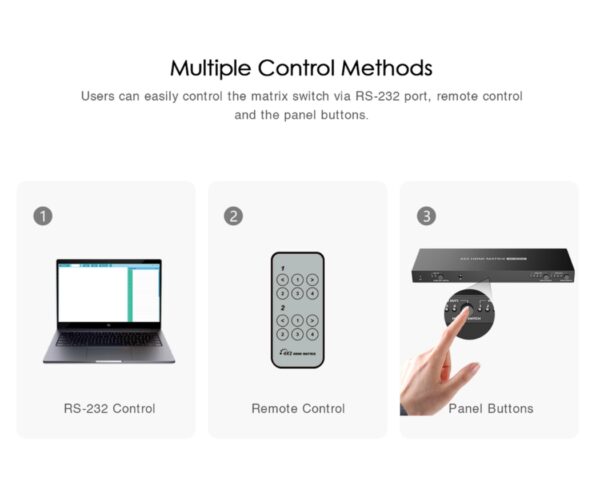

- Support Multiple Control Methods
Technical Details
- HDMI version: HDMI 2.0（HDR, YUV444）, Compatible with HDCP 2.2, HDCP 1.4

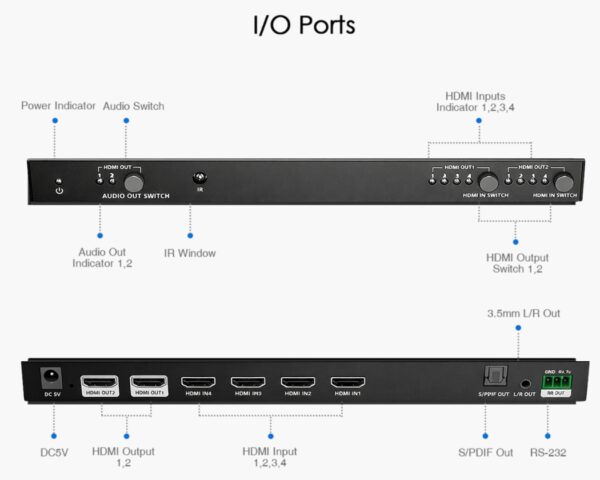

- HDMI interface: 4 HDMI input, 2 HDMI output
- Transmission rate: 18Gbps
- Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25/30/50/60Hz
- Audio format: LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/ Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos
- RS-232: 3 Pin (GND/Rx/Tx), Baud rate 9600
- Voltage: DC 5V/1A
- Power consumption: ＜4W
- Working temperature: -20℃~60℃
- Storage temperature: -30℃~70℃
- Humidity: 0~90%RH (No Condensation)
- Housing: Iron
- Color: Black
- Weight: 375g
- Dimensions: 250.0(L) x 80.0(W) x 21.0(H) mm
- Protection
- ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
| HDD type | HDMI Matrix |
|---|---|
| HDD Maximum Resolution | 4K@60Hz |
| HDD Set-type | Transmitter ( Tx ) |
| HDD Support IR | No |
| HDD Transmit Type | HDMI Cable Direct |
| Manufacturer | Lenkeng |
Downloads
Specifications
| HDMI Version | HDMI 2.0 (HDR, YUV444), compatible with HDCP 2.2 and HDCP 1.4 |
|---|---|
| HDMI Interface | 4 × HDMI Input, 2 × HDMI Output |
| Transmission Rate | 18Gbps |
| Supported Resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25/30/50/60Hz |
| Audio Formats | LPCM 7.1 / DTS-HD / DTS-Audio / Dolby Digital Plus / Dolby TrueHD 7.1 / Dolby Digital 7.1CH / Dolby Atmos |
| RS-232 | 3 Pin (GND / Rx / Tx), Baud Rate 9600 |
| Voltage | DC 5V / 1A |
| Power Consumption | < 4W |
| Working Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 0 ~ 90% RH (No Condensation) |
| Housing | Iron |
| Color | Black |
| Weight | 375g |
| Dimensions | 250.0 (L) × 80.0 (W) × 21.0 (H) mm |
| Protection | ESD Protection: Contact discharge level 2 (±4KV) Air discharge level 3 (±8KV) Standard: IEC61000-4-2 Lightning protection and surge protection |
