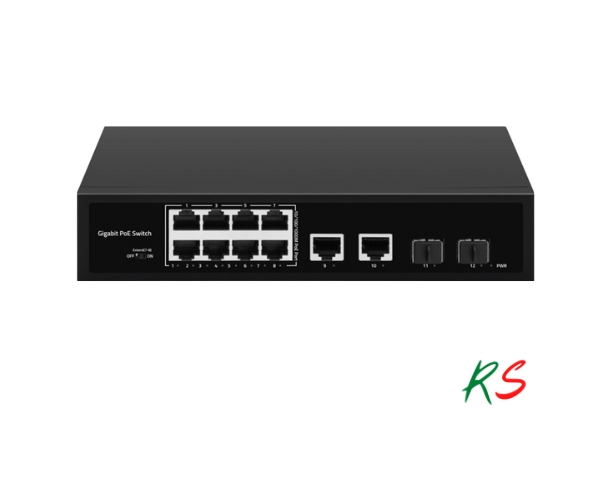

The 12-Port Gigabit PoE+ Switch combines 8 Gigabit PoE ports, 2 Gigabit uplink ports and 2 SFP fiber ports in a compact and reliable networking solution. Featuring AI Extend Mode, PoE Watchdog, QoS Priority and 110W PoE budget, it is ideal for IP surveillance, wireless access points and enterprise network deployments.
Technical Features
- 8 × Gigabit PoE+ Ports
- 2 × Gigabit RJ45 Uplink Ports
- 2 × Gigabit SFP Fiber Ports
- IEEE802.3af/at PoE Support
- 110W Total PoE Budget
- PoE Watchdog Function
- PoE QoS Priority
- AI Extend Mode up to 250m
- 24Gbps Switching Capacity
- 4KV Surge Protection
- 8KV ESD Protection
- Plug and Play Installation
Technical Details
- Model: SST-P8ET2ET2S
- Product: 12-Port Gigabit Intelligent Standard PoE+ Switch with 2 Uplink and 2 SFP
- AC100-240V 50/60Hz
- Interfaces: 8 × Gigabit PoE Ports, 2 × Gigabit Ethernet Ports, 2 × Gigabit SFP Ports
- Chipset: EN8850DH
- Bandwidth: 24Gbps
- Packet Forward Rate: 17.856Mpps
- Package Cache: 448Kbit
- MAC Address Table: 2K
- Jumbo Frame: 9216 Bytes
- Forwarding Mode: Storage & Forward
- MTBF: 100000 Hours
- Network Protocols: IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE802.3z (Gigabit Ethernet Fiber Standard)
- PoE Standards
- IEEE802.3af (15.4W)
- IEEE802.3at (30W) PoE+
- Industry Standards
- EMI: FCC Part 15 CISPR (EN55032) Class A
- EMS: EN61000-4-2 (ESD)
- EMS: EN61000-4-5 (Surge)
- Network Media
- 10Base-T: Cat3, Cat4, Cat5 Class or Above UTP/STP (≤100m)
- 100Base-TX: Cat5 Class or Above UTP/STP (≤100m)
- 1000Base-TX: Cat5 Class or Above UTP/STP (≤100m)
- Optical Media
- Multimode Optical Fiber: 50/125, 62.5/125, 100/140μm
- Single Mode Optical Fiber: 8/125, 8.7/125, 9/125, 10/125μm
- Environmental
- Working Temperature: -10°C ~ 50°C
- Storage Temperature: -40°C ~ 70°C
- Working Humidity: 10% ~ 90%, Non-Condensing
- Storage Humidity: 5% ~ 95%, Non-Condensing
- LED Indicators
- PWR (Power)
- 1-12 Green Link & Data Indicators
- PWR Status
- On: Powered On
- Off: Powered Off
- 1-10 Green Link & Data Status
- On: Link Normal
- Off: Link Blocked
- Flashing: Data Transmitting
- DIP Switch Modes
- Default: All Interfaces Can Communicate With Each Other, Transmission Distance Less Than 100m, Transmission Rate 10/100/1000Mbps Adaptive
- AI Mode Disabled
- Extend: Ports 7-8 Forced To 10Mbps, Transmission Distance Up To 250m
- PoE Watchdog Enabled

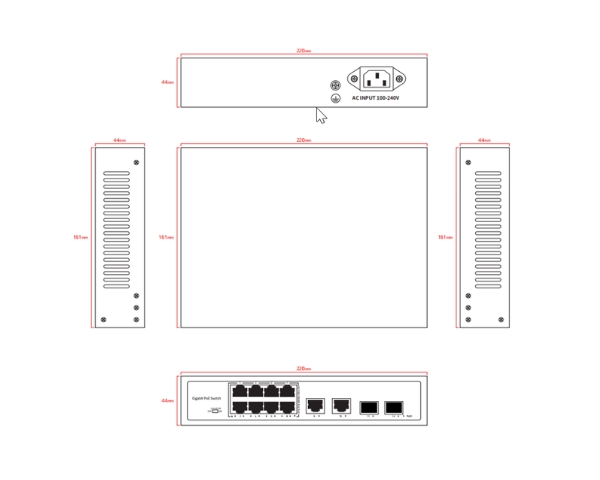

- Product Dimensions: 220 × 161 × 44.5mm
- Package Dimensions: 315 × 215 × 85mm
- Product Net Weight: 0.92kg
- Product Gross Weight: 1.22kg
- Power Specifications
- Input Voltage: AC 100-240V 50-60Hz
- Power Supply Output: 52V / 2.3A 120W
- Power Consumption
- Product Power: ≤10W
- PoE Power: ≤110W
- Package Contents
- Switch × 1
- Power Cord × 1
- User Manual × 1
- Certification × 1
| Manufacturer | RS |
|---|---|
| Switch Type | Managed |
| Speed | Gigabit |
| POE Switch | Yes |
| POE Ports | 8 |
| POE Budget | 110W |
| Power over Ethernet (PoE) | PoE+ |
| No of SFP Ports | 2 |
| SFP Ports | With SFP Ports |
| Mount Type | Desktop |
| Device Total Ports | 12 |
