The NF-716ADHS is an all-in-one CCTV tester featuring a 7-inch Retina touchscreen, IP camera testing, TVI/CVI/AHD/SDI support, PoE output, cable testing, WiFi hotspot, and HDMI input/output. An essential tool for CCTV, networking, and security system installers.
Technical Features

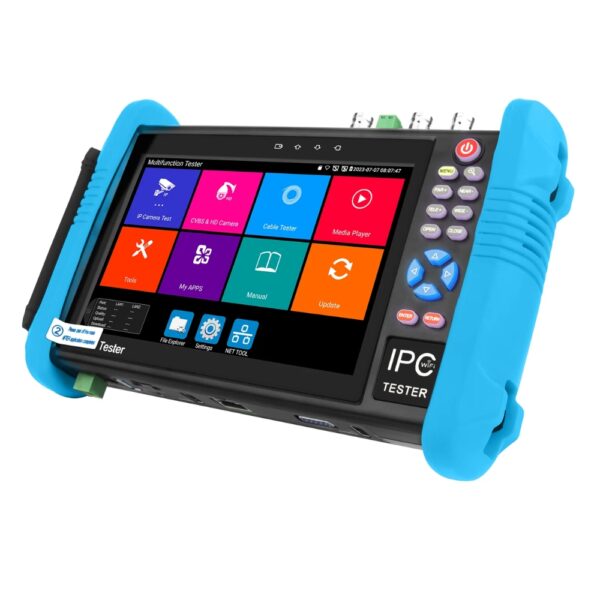

- 7-inch Retina touch screen, 1280*800 resolution.

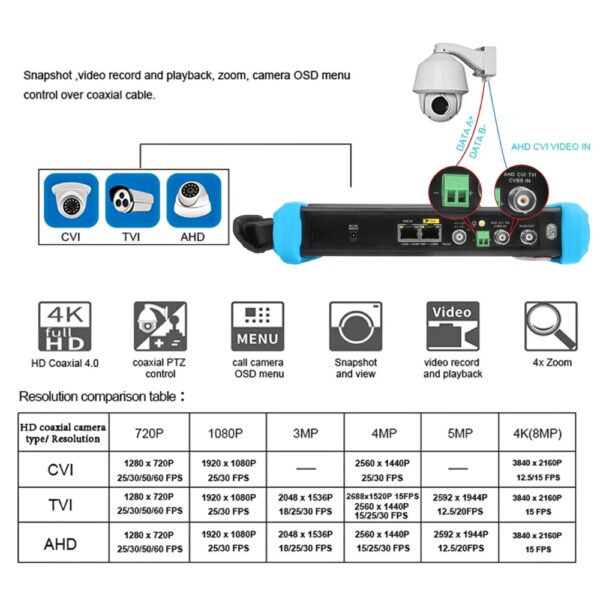

- 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*.
- H.265/H.264, 4K video display via mainstream.
- Dahua, Hikvision, Axis etc ONVIF camera test.
- Built-in WIFI, create WIFI hotspot.

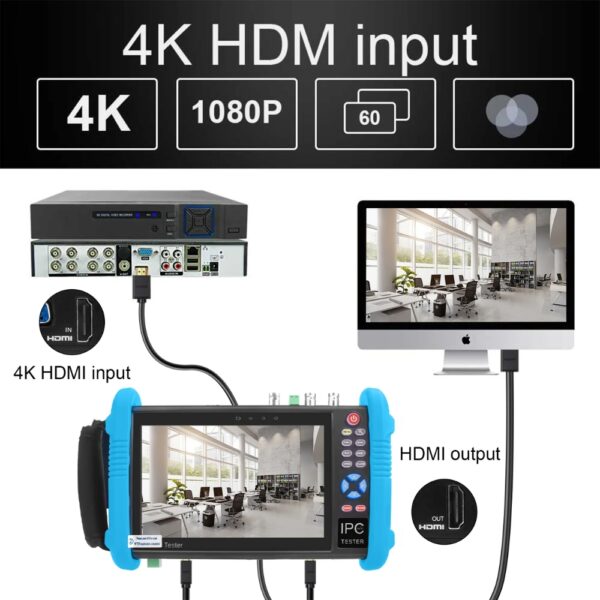

- HDMI input & output, support 1080p.
- DC12V 3A, DC48V PoE power output, max power 25.5W.
- Rapid ONVIF, auto view video and create a testing report.

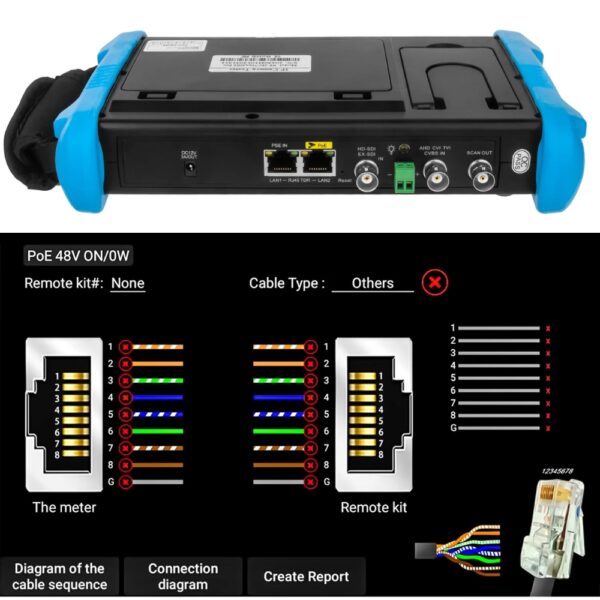

- UTP cable tester/RJ45 cable TDR test, cable quality test.
- Tester Play: Tester, mobile phone, and PC display at the same time.
- Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
Technical Details
- Model: NF-716
- IP Camera Test(4K/H.265/H.264): Yes
- IP&CVBS Test: Yes
- NTSC/PAL: Auto adapt
- PTZ control, RS485 control, Baud 600-115200bps
- UTP Cable Test: Yes
- RJ45 Cable TDR Test: Yes

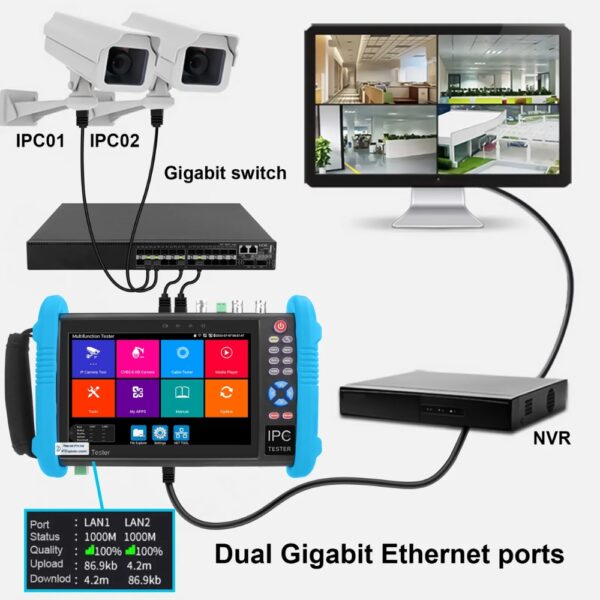

- Network Test: Yes
- Data Monitor: Yes
- PoE Test: Yes
- TesterPlay: Yes
- CVBS Loop Test: Yes
- Coaxial HD Test: Yes
- HDMI Input: Yes
- Display: 7-inch touch screen
- Zoom Image: Yes
- Analog Video Out: Yes
- Wi-Fi: Yes
- Audio test: Yes
- Power Output: 48V PoE power output, max power 24W
- DC12V Power: DC12V 3A power output
- External Power supply : DC 12V 2A
- Charging Time: 5-6 hours
- Working Time: 16 hours
- Power Supply: Built-in 7.6V Lithium polymer battery, 7800mAh
| Manufacturer | Noyafa |
|---|
