CABELCON FC-703 Compressed F-Type
FOR RG6 CABLE
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

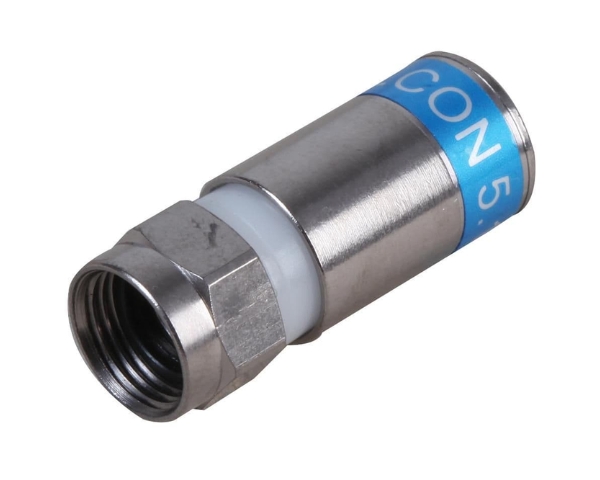

The Cabelcon FC-703 Compression Connector is a premium waterproof F-type connector designed for RG6 coaxial cables with diameters from 6.6mm to 7.8mm. Its advanced compression design allows quick and easy installation without folding the braid under the connector, ensuring a secure and weather-resistant connection. With outstanding shielding performance exceeding 130dB and support for frequencies up to 3GHz, the FC-703 is ideal for satellite TV, cable TV, broadband, and professional RF distribution systems.
Technical Details
- Model:
- Brand: Cabelcon by Cavel
- Connector Type: F Compression Connector Waterproof Design
- Cable Compatibility: RG6 Coaxial Cable
- Cable Diameter: 6.6mm – 7.8mm
- Impedance: 75Ω Nominal
- Frequency Range: 0.3 MHz – 3000 MHz
- Shielding Performance: >130 dB @ 30–1000 MHz, >120 dB @ 1000–3000 MHz
- Transfer Impedance: <0.9 mΩ/m @ 5–30 MHz, <0.02 mΩ/connector @ 5–30 MHz
- Features: Compression Mounting Technology, Waterproof Construction, Easy Push-On Installation, Professional RF Performance, Low Signal Loss, Excellent EMI Shielding
- Applications: Satellite TV Systems, DVB-T / DVB-T2 Antenna Installations, Cable TV Networks (CATV), Broadband Networks, Professional RF Signal Distribution
All tests performed using instruments calibrated in accordance to our ISO 9001 certification. Further technical specifications and installation instructions can be obtained on request.
| Manufacturer | Cabelcon |
|---|
