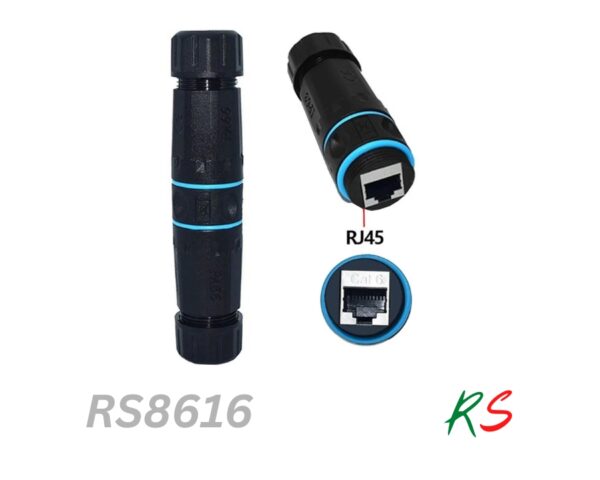

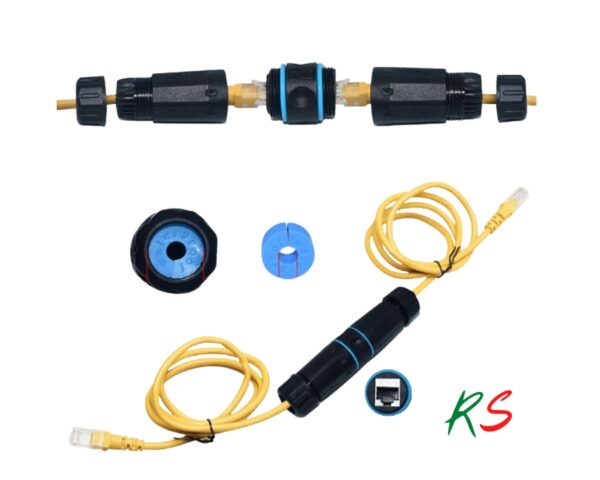

The RS8616 CAT6 Waterproof RJ45 Coupler is a rugged female-to-female inline connector designed for reliable Ethernet connections in outdoor and demanding environments. Featuring an IP66-rated waterproof enclosure, it protects network connections from dust and water while maintaining stable CAT6 data transmission. Ideal for CCTV systems, outdoor access points, industrial networking, and LAN extensions, the RS8616 offers secure connectivity, excellent durability, and quick field installation.
Technical Details
- Model: RS8616
- Brand: RS
- Connector Type: RJ45 Female to Female Coupler, CAT6 Compatible
- IP66 Waterproof
- Dust Resistant
- Outdoor Installation Suitable
- Rated Voltage: 125 VAC RMS
- Rated Current: 1.5A Max
- Contact Resistance: ≤100 mΩ
- Insulation Resistance: ≥1000 MΩ @ 500 VDC
- Dielectric Strength: 750 VAC RMS, 60Hz, 1 Minute
- Housing Material: PA66
- Insert Material: Flame-Retardant PBT
- PCB Material: FR-4, 1.6mm
- RJ45 Contacts: Phosphor Bronze, Nickel & Gold Plated
- Mating Life: ≥750 Cycles
- Supported Cable Diameter: Ø5.0 – 7.5 mm
- Applications: Outdoor CCTV Installations, Outdoor Ethernet Networks, Wireless Access Points, Industrial Ethernet Systems, LAN Cable Extensions
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Packaging: 1pcs in Naylon Bag
| Manufacturer | RS |
|---|---|
| LAN Category | Cat6, Cat6a |
