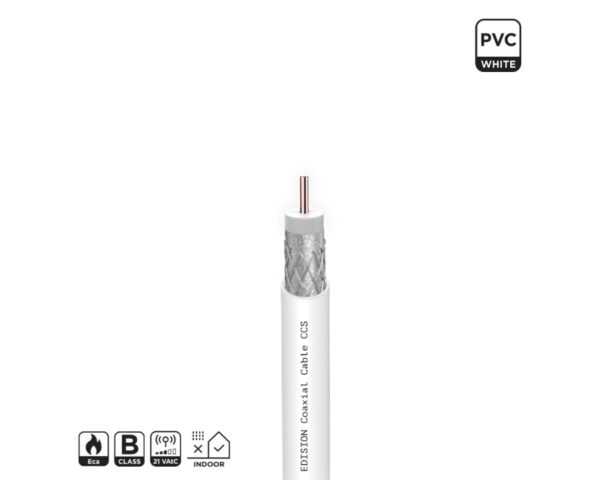

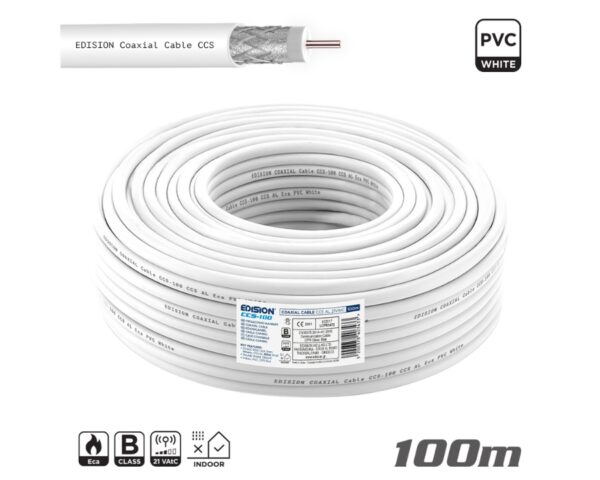

EDISION COAXIAL Cable CCS-100 CCS AL Eca PVC White 100m. Indoor RG6 coaxial cable, in a 100-meter coil, for Digital Terrestrial, Cable and Satellite TV signal distribution in small and medium sized installations. Also suitable for CCTV camera signal. Its inner conductor copper-clad steel (CCS), giving it an enhanced mechanical behaviour. Its PVC outer sheath is double shielded Class B with excellent specifications for its class, characterized by good flexibility and a high protection against heat sources. Compatible with all TV and F 6.5mm plugs.
Technical features:
- Type: Coaxial Cable RG-6, double shielded, 21VAtC indoor CCS-100
- Suitable for Terrestrial, Cable TV, Satellite reception and CCTV installations
- Class B
- CPR Class: Eca
- Standards: EN 55075
- Inner Conductor: Diameter 1,00 ± 0,02 mm / Material: Copper Clad Steel (CCS)
- Foam Dielectric: Diameter 4,7 mm / Material: Polyethylene foam (FPE)
- Foil: Aluminum (AL) with coverage 100%
- Braid: Aluminum mesh (AL) 6x8x0,12 mm (wires) with coverage 30%
- Jacket: Diameter 6,6mm ± 0.10 mm / Material: PVC White
- Impedance: 75 Ohm
- Minimum Bending Radius: 35mm
- Shielding: >75 dB (typ.110dB)
- Return Losses 5-862 MHz: >18 dB / 862-2150 MHz: >16 dB
Attenuation dB per 1 meter:
- 5 MHz / 0,05 dB
- 30 MHz / 0,06 dB
- 50 MHz / 0,07 dB
- 200 MHz / 0,10 dB
- 400 MHz / 0,15 dB
- 500 MHz / 0,16 dB
- 800 MHz / 0,20 dB
- 860 MHz / 0,21 dB
- 1000 MHz / 0,22 dB
- 1350 MHz / 0,25 dB
- 1750 MHz / 0,28 dB
- 2050 MHz / 0,31 dB
- 2150 MHz / 0,32 dB
General:
- – Environmental Operating Temperature: -30°C … +70°C
- – Application: Indoor
- – Length: 100m (marked per 1 meter)
- – Weight: 3,65 kg
- – Color: White
- – Packing: Ring 100m
- – Packing Quantity: 4 pcs x 100m
| Weight | 3.7 kg |
|---|---|
| Dimensions | 56 × 29 × 20 cm |
| Manufacturer | EDISION |
| Length | 100.00m |
