Extension IR Receiver over Coax EDI-Rx
Compatible with:
– HDMI MODULATOR Xtend
– HDMI MODULATOR Xtend lite
– HDMI MODULATOR 3IN1 pro
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

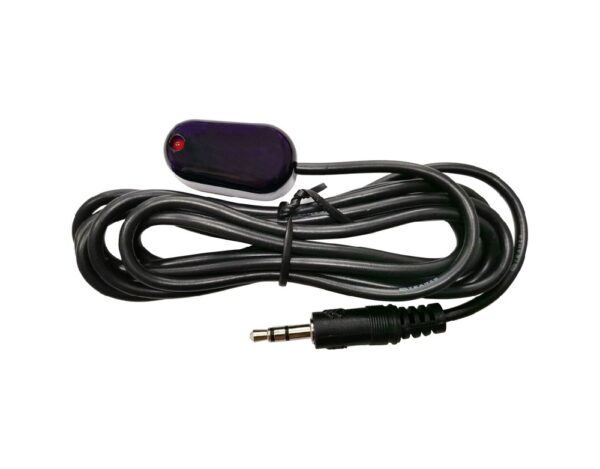

The EXTENSION IR RECEIVER OVER COAX EDI-Rx is an IR receiver for use as an extra IR control TV point by coaxial cable, with SET IR EXTENDER KIT OVER COAX EDI-TxRx. It is desinged For extra control point though coaxial cable for devices such as SAT TV receivers, DTT receivers.
Technical features:
- Ports – Connections: RF IN, RF OUT, IR OUT, DC 5V
- Power over DC to USB cable
- IR Signal LED
- Consists of two devices, sensor and processor for IR transmitter
- Modulation Type ASK
- Frequency bandwidth VHF III (174-230 MHZ) & UHF (470-862 MHZ)
- RF IN Input 1 x Female IEC-type
- RF OUT Output 1 x Male IEC-type
- IR Receiver OUT Stereo Jack 3,5mm (Jack to IR EDI-Rx)
- DC OUT 5V/500mA (DC to USB cable)
- IR Signal LED IR status indication
- Size: W-H-D: 7,8 – 5,8 – 2,8 centimeters
- Sensor color: black
Package includes:
- IR Control System EDI-Rx
- Jack to IR Rx cable

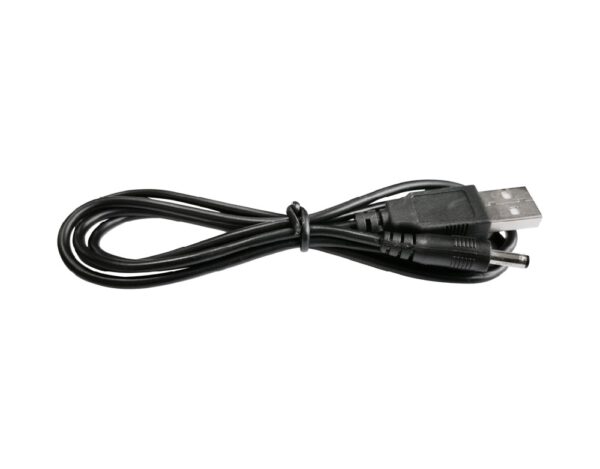

- USB to DC (5V) cable
| Weight | 0.17 kg |
|---|---|
| Manufacturer | EDISION |
| HDD Transmit Type | Over Coax |
