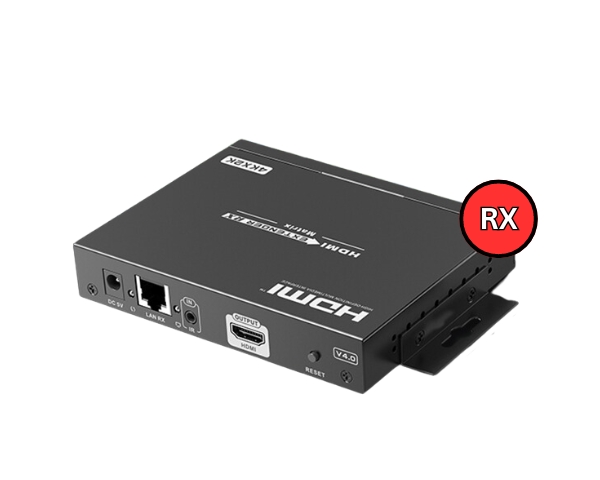

HDMI Matrix Extender over IP LKV683-MATRIX-RX (Display)
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
LKV683-MATRIX-RX HDMI 4K Matrix Extender Receiver enables high-quality HDMI signal distribution over standard network infrastructure. Designed for digital signage, control rooms, retail displays, hospitality, and commercial AV installations, it supports many-to-many matrix configurations, 4K video transmission, zero-latency performance, and remote management through mobile applications. This Receiver unit is installed in the Display Section ( TV)
Technical Features
- 4K@30Hz Video Support
- 120m Transmission Distance
- Zero Latency
- Many-to-Many Matrix Distribution
- Bi-Directional IR Passback
- Multi-Mode Control
- 24/7 Continuous Operation
- Lightning Protection
- Surge Protection
- ESD Protection
Highlights
- Supports HDMI over IP distribution through Gigabit switches
- Receive HDMI signals up to 120m over Cat5e/Cat6 cable
- Many-to-many matrix architecture
- Remote control via mobile APP (iOS & Android)
- Bi-directional IR extension (20-60KHz)
- Zero-latency transmission technology
- Compatible with IGMP network switches
- Suitable for commercial AV and digital signage applications
- Stable operation for 24/7 environments
Technical Details
- HDMI Signal : HDMI 1.4, HDCP Compliant
- Network Bandwidth : 28Mbps
- Supported Resolutions : 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4K×2K @24/25/30Hz
- Audio Format : L/R Stereo Audio
- TMDS Signal : 0.7~1.2Vp-p
- DDC Signal : 5Vp-p
- IR Passback : Supports 20~60KHz IR Devices
- APP Control : iOS Support, Android Support, Device Discovery & Configuration
- Matrix Configuration : Up to 100 Input Sources, Unlimited Output Expansion
- Power Supply : DC 5V/2A
- Power Consumption : RX ≤ 5W
- Dimensions : 164 × 107.6 × 23.6mm
- Weight : 310g
- Working Temperature : 0°C ~ 60°C
- Storage Temperature : -20°C ~ 70°C
- Humidity : 0~95% RH (No Condensation)
- Color : Black
| HDD type | HDMI Matrix |
|---|---|
| HDD HDMI Loop | No |
| HDD Maximum Distance | 120m |
| HDD Maximum Resolution | 4K@30Hz |
| HDD Support IR | Yes |
| HDD RX Power Type | 5V PLUG |
| HDD Set-type | Receiver (Rx) |
| HDD Transmit Type | Over IP |
| Manufacturer | Lenkeng |
