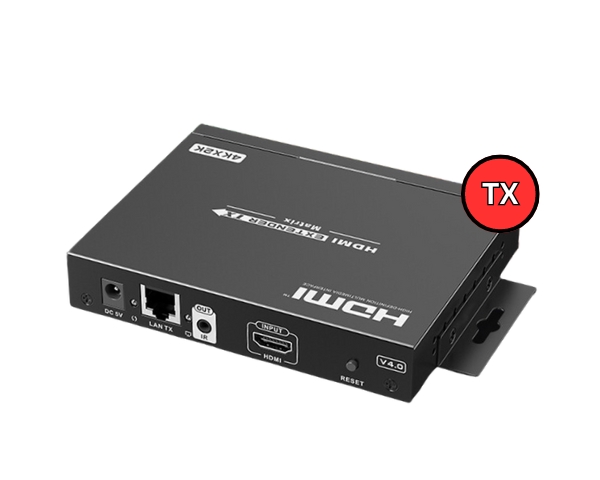

LKV683-MATRIX-TX HDMI 4K Matrix Extender Transmitter enables high-quality HDMI signal distribution over standard network infrastructure. Designed for digital signage, control rooms, retail displays, hospitality, and commercial AV installations, it supports many-to-many matrix configurations, 4K video transmission, zero-latency performance, and remote management through mobile applications. This Transmitter unit is installed in the Source Section ( Device)
Technical Features
- 4K@30Hz Video Support
- 120m Transmission Distance
- Zero Latency
- Many-to-Many Matrix Distribution
- Bi-Directional IR Passback
- Multi-Mode Control
- 24/7 Continuous Operation
- Lightning Protection
- Surge Protection
- ESD Protection
Highlights
- Supports HDMI over IP distribution through Gigabit switches
- Receive HDMI signals up to 120m over Cat5e/Cat6 cable
- Many-to-many matrix architecture
- Remote control via mobile APP (iOS & Android)
- Bi-directional IR extension (20-60KHz)
- Zero-latency transmission technology
- Compatible with IGMP network switches
- Suitable for commercial AV and digital signage applications
- Stable operation for 24/7 environments
Technical Details
- HDMI Signal : HDMI 1.4, HDCP Compliant
- Network Bandwidth : 28Mbps
- Supported Resolutions : 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4K×2K @24/25/30Hz
- Audio Format : L/R Stereo Audio
- TMDS Signal : 0.7~1.2Vp-p
- DDC Signal : 5Vp-p
- IR Passback : Supports 20~60KHz IR Devices
- APP Control : iOS Support, Android Support, Device Discovery & Configuration
- Matrix Configuration : Up to 100 Input Sources, Unlimited Output Expansion
- Power Supply : DC 5V/2A
- Power Consumption : TX ≤ 6W
- Dimensions : 164 × 107.6 × 23.6mm
- Weight : 310g
- Working Temperature : 0°C ~ 60°C
- Storage Temperature : -20°C ~ 70°C
- Humidity : 0~95% RH (No Condensation)
- Color : Black
