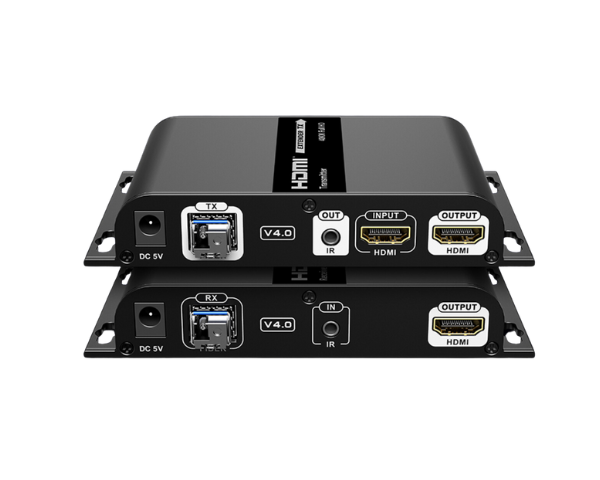

HDMI Optical Fiber Extender 40KM 1080p@60Hz uses single-mode optic fiber (SMF) to transmit high-definition signals to a distance of 40km, and supports local loop-out and IR passback. It can be widely used in security monitoring, medical systems, commercial display and other devices

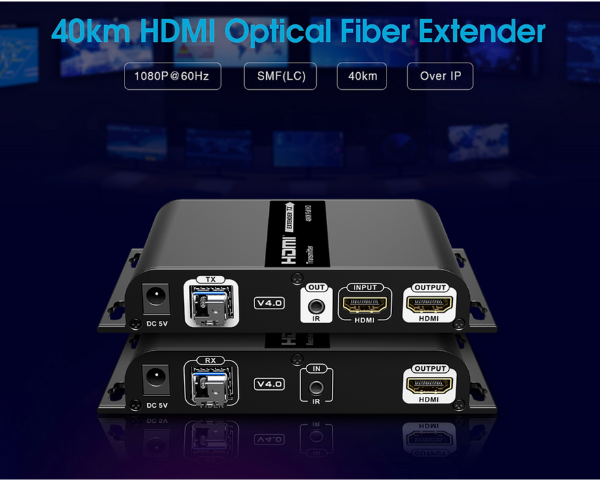

Key Features:
- 1080p@60Hz
- SMF(LC)
- 40km
- Over IP

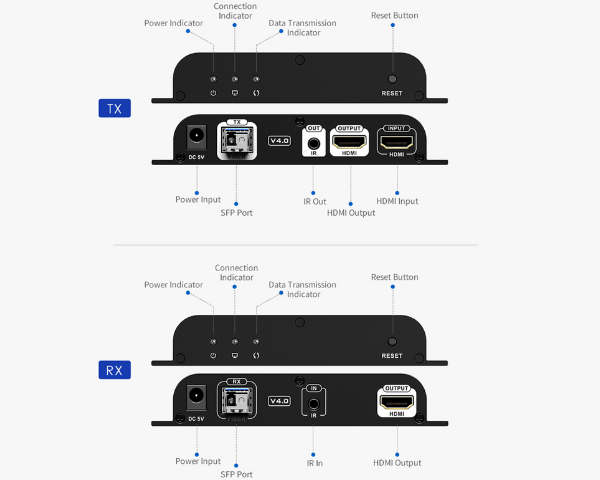

- HDMI Loop Out
- IR Passback
- Lightning/Surge/ESD Protection
Highlights:

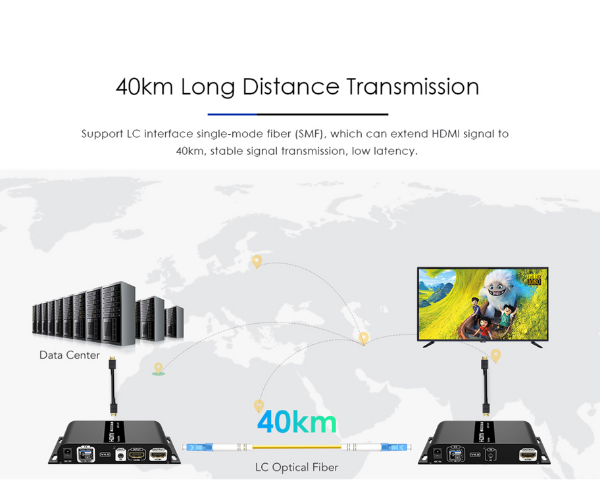

- Supports 1.25Gbps single mode fiber module with a maximum transmission distance of 40km
- Supports resolution up to 1920×1080@60Hz
- Supports IR passback for remote control
- The transmitter supports HDMI loop out for local monitoring
- Lightning Protection,Surge Protection,ESD Protection
- Wall mounted design
Technical Details
- Power Supply : DC 5V/2A
- Power Consumption : TX < 3W , RX < 3W
- HDMI Version : HDMI 1.3, HDCP 1.4 Compatible
- Supported Resolutions : 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz , 1080p@50/60Hz
- DDC Signal Voltage : 5Vp-p (TTL)
- Optical Wavelength : 1310nm, 1550nm
- Fiber Connector : LC
- Optical Fiber Type : Single Mode Fiber (SMF)
- Transmission Rate : 1.25Gbps
- Transmission Distance : Up to 40km
- Output Optical Power : ±3dB
- Input Optical Power : ±3dB
- Receive Sensitivity : ≤ -23dBm
- Return Loss : 12dBm
- IR Control Frequency : 20kHz – 60kHz
- Protection :
- IEC61000-4-2 Standard
- Contact Discharge Level 4 (±8KV)
- Air Discharge Level 4 (±15KV)
- Lightning Protection
- Operating Temperature : -20°C to +60°C
- Storage Temperature : -30°C to +70°C
- Relative Humidity : 0% – 90% RH
- Housing Material : Aluminum Alloy
- Dimensions : 138 × 81.5 × 24mm
- Weight : TX: 180g ,RX: 180g
- Color : Black
| HDD HDMI Loop | Yes |
|---|---|
| HDD Maximum Distance | 40km |
| HDD Maximum Resolution | 1080p@60Hz |
| HDD RX Power Type | 5V PLUG |
| HDD Support IR | Yes |
| HDD Set-type | Set (Rx + Tx) |
| HDD Transmit Type | Over Fiber Cable |
| Manufacturer | Lenkeng |
Downloads
Specifications
| Item | Specification |
|---|---|
| Power supply | DC5V / 2A |
| Power consumption | TX <3W RX <3W |
| HDMI Version | HDMI 1.3, compatible with HDCP 1.4 |
| Support resolution | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| DDC signal voltage | 5Vp-p (TTL) |
| Center wavelength | 1310 / 1550 nm |
| Connector type | LC |
| Transmission rate | 1.25Gbps |
| Optical fiber type | SMF |
| Transmission distance | ≤40km |
| Output light power | ±3dB |
| Input light power | ±3dB |
| Receive sensitivity | ≤ -23dBm |
| Return loss | 12dBm |
| IR remote control | Frequency Range: 20 ~ 60KHz |
| Protection Level | Implementation of the standard: IEC61000-4-2 1a Contact discharge level 4 (8KV) 1b Air discharge level 4 (15KV) |
| Working temperature | -20°C ~ 60°C |
| Storage temperature | -30°C ~ 70°C |
| Relative humidity | 0 ~ 90% RH |
| Enclosure material | Aluminum alloy |
| Product dimension | 138.0 (L) × 81.5 (W) × 24.0 (H) mm |
| Weight | TX: 180g RX: 180g |
| Color | Black |
