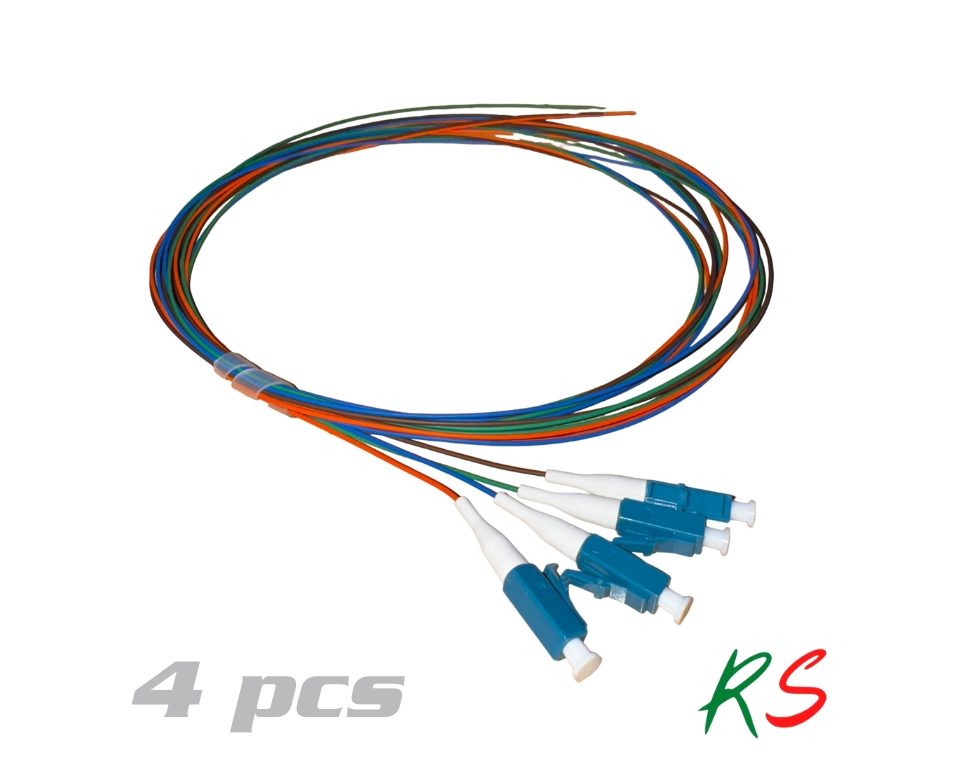

LC/UPC Splicing Pigtail – 0.9mm, 2m, 4 colors
The LC/UPC Splicing Pigtail 0.9mm 2m is a high-quality fiber optic component designed for precise fusion splicing and stable optical transmission. Featuring an LC/UPC connector with low insertion loss and high return loss, this pigtail is ideal for applications requiring reliable single-mode performance.
| Category | Specification |
|---|---|
| Connector Type | LC/UPC |
| Polish Type | UPC |
| Connector Ferrule | Zirconia Ceramic |
| Fiber Type | OS2 (Single Mode) |
| Fiber Grade | G.657.A1 |
| Fiber Count | Simplex |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Blue, Orange, Green, Brown |
| Cable Diameter | 0.9mm |
| Cable Length | 2 meters |
| Minimum Bend Radius | 10mm (static) / 30mm (dynamic) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB (UPC) |
| Packing | Individual ZIP Bag |
| Carton Dimensions | |
| Applications | Splicing, fiber patching, FTTH, SFP/SFP+ links |
