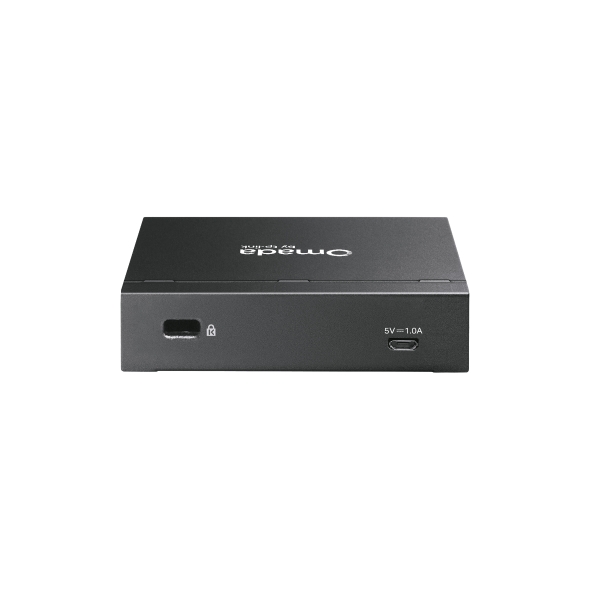

Omada Hardware Controller OC220 , can remotely or locally manage up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and up to 2 selected DeltaStream GPON OLTs via the Omada App or Web UI.
Equipped with an advanced design and the latest chipset, the Omada OC220 delivers more than enough processing power to support massive network management—while its enterprise-grade reliability ensures uninterrupted 24/7 operation under heavy loads. It features 802.3af/at PoE input or Micro USB power supply for easier and more flexible installation. It has 2× Gigabit RJ45 Ports, 1× USB 2.0 Port for Auto-Backup, it is PoE or Micro USB Powered and is Fanless Design for Silent Operation.
Features
Centralized Cloud Management:
- Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs.*
Free Cloud Access:
- Manage and monitor with the Omada app or Web UI from anywhere, anytime.
On-Premises Management:
- Locally monitor and manage devices with the ultimate stability and complete privacy.
Hardware Design for Businesses:
- Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and 2× Gigabit Ethernet ports.
Flexible Deployment:
- Powerd via 802.3af/at PoE or Micro USB (DC 5 V / Minimum 1 A) with a compact desktop or wall mount installation.
| Manufacturer | Omada TP-Link |
|---|
Specifications
| HARDWARE FEATURES | |
|---|---|
| Processor | Quad-Core A53 @ 2.0 GHz/Core |
| Interface | • 2× Gigabit Ethernet Ports • 1× USB 2.0 Port • 1× Micro-USB Port (only for power supply) |
| Physical Security Lock | Kensington Lock |
| Button | Reset Button |
| Power Supply | • 802.3af/at PoE • Micro-USB (DC 5 V / Minimum 1 A) |
| Max. Power Consumption | 11.2 W (powered by a PoE device, with USB 2.0 connected) 3.5 W (powered via Micro-USB port, no USB 2.0 connected) |
| DRAM | 2 GB DDR4 |
| Storage | • 4MB Nor Flash • 8 GB eMMC |
| Weight | 0.305 kg |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Management Features | |
|---|---|
| Omada App | √ |
| Restore & Backup | √ |
| Centralized Management | • 100 Omada access points • 10 Omada gateways • A maximum of 20 Omada switches* • A maximum of two select DeltaStream GPON OLTs* |
| Cloud Access | √ |
| L3 Management | √ |
| Multi-site Management | √ |
| Management Features | • Wired Network • Wireless Network • WLAN Optimization • Network Security (ACL/URL Fitering/Attack Defense) • Transmission (Routing/NAT/Session Limit/Bandwidth Control) • VPN (IPSec/L2TP/PPTP/OpenVPN/WireGuard VPN) • Portal (Voucher/Local User/SMS/RADIUS/External Portal Server) • 802.1x • RADIUS (Authentication/MAC Auth/Accounting) |
| MONITORING | |
|---|---|
| Monitoring | • DPI • IPS/IDS • Dashboard (Custom Dashboard) • Statistics (Performance/Switch Statistics) • Network topology • Network Map • Devices List (Custom Table) • Clients List (Custom Table) • Insights (Known Clients/Past Connections/Past Portal Authorizations/Rogue APs) • Logs (Alerts/Events/Custom Notifications) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Omada Hardware Controller OC220 • Quick Installation Guide • RJ45 Ethernet Cable |
| System Requirements | Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: -5–50 ℃ (23–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
