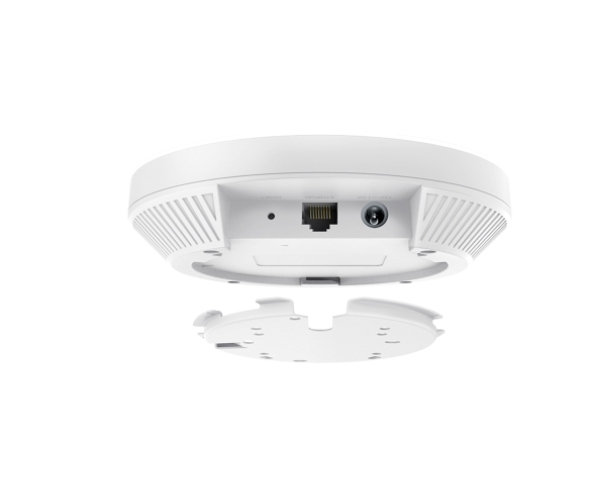

Omada TP-Link Wi-Fi 6 AP Ceiling Mount EAP653UR
- Package does not include Power Supply or Injector
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The TP-Link Omada EAP653 UR is a high-performance AX3000 WiFi 6 access point designed for large commercial environments. With up to 185m² coverage, 160MHz channels, MU-MIMO, OFDMA, Omada Mesh, and centralized cloud management, it delivers fast, reliable, and scalable wireless connectivity.
Technical Features
- AX3000 Dual-Band WiFi 6
- 2402Mbps + 574Mbps WiFi Speeds
- Ultra-Range Coverage up to 185m²
- HE160 160MHz Bandwidth
- MU-MIMO
- OFDMA
- Omada Mesh
- Seamless Roaming
- Centralized Cloud Management
- Bluetooth 5.2
- 802.3at PoE+
- Passive PoE Support
- Beamforming
- Airtime Fairness
- Band Steering
- Ceiling, Wall & Junction Box Mounting
Highlights
- WiFi 6 speeds up to 2976Mbps
- Coverage area up to 185m²
- Supports 250+ concurrent wireless clients
- 160MHz channel width for maximum throughput
- Omada Mesh for flexible wireless deployments
- Seamless roaming with 802.11k/v/r
- Centralized cloud management via Omada SDN
- Supports 802.3at PoE, Passive PoE, and 12V DC power
- Bluetooth 5.2 for simplified deployment and management
- Ideal for hotels, offices, schools, retail stores, and large commercial environments
Technical Details
- Wireless Standard : IEEE 802.11ax/ac/n/g/b/a
- WiFi Speed : 574Mbps (2.4GHz), 2402Mbps (5GHz), 2976Mbps Total
- Coverage : Up to 185m²
- Concurrent Clients : 250+
- Ethernet Ports : 1 × Gigabit PoE+ Port
- Power Supply : 802.3at PoE, 48V Passive PoE, 12V DC / 1.5A
- Power Consumption : EU Version 14.2W, US Version 15.5W
- Bluetooth : Bluetooth 5.2
- Antenna Configuration : 2.4GHz: 2 × 5dBi, 5GHz: 3 × 5dBi
- Wireless Technologies : WiFi 6 (802.11ax), OFDMA, MU-MIMO, HE160, 1024-QAM, Beamforming, Airtime Fairness, Band Steering, Load Balancing, Omada Mesh, Seamless Roaming, QoS (WMM)
- SSID Support : Up to 16 SSIDs, Up to 8 SSIDs per Band
- Wireless Security : Captive Portal Authentication, Access Control, Wireless MAC Filtering, Client Isolation, SSID to VLAN Mapping, Rogue AP Detection, WPA Personal, WPA2 Personal, WPA3 Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise
- Transmission Power (CE) : 2.4GHz: 7-20dBm, 5GHz U-NII-1 & U-NII-2A: 6-23dBm, 5GHz U-NII-2C: 6-29dBm
- Management Features : Omada App, Omada Central Cloud Controller, Omada Hardware Controller, Omada Software Controller, Cloud Access, SNMP v1/v2c/v3, SSH, HTTP/HTTPS Management, Remote Syslog, L3 Management, Multi-Site Management, Management VLAN, Zero-Touch Provisioning
- Dimensions : 160 × 160 × 33.6mm
- Mounting : Ceiling Mounting, Wall Mounting, Junction Box Mounting, T-Bar Mounting
- Operating Temperature : 0°C to 40°C
- Storage Temperature : -40°C to 70°C
- Operating Humidity : 10% to 90% RH
- Storage Humidity : 5% to 90% RH
- Certifications : CE, FCC, RoHS, ISED
- Color : White
| Manufacturer | Omada TP-Link |
|---|---|
| Wi-Fi Generation | WIFI 6 |
