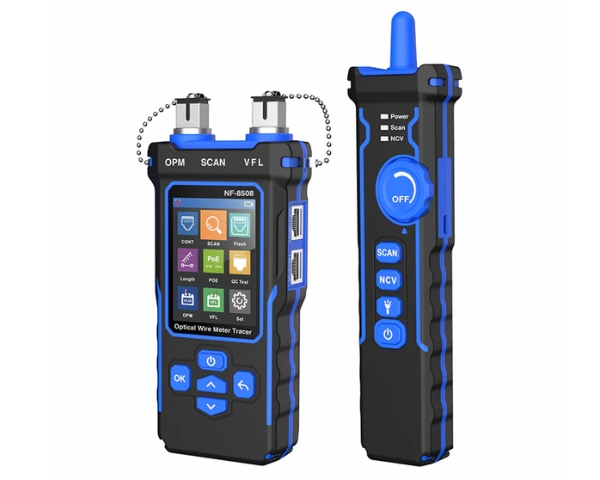

Optical Wire Meter Tracer Tester NF-8508
- Optical Power Meter
- Multifunction for Cable scanning
- Cable length measurement
- POE switch test
- Crimping Test for crystal head
- NCV AC test
- Locate target cables quickly
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
NOYAFA NF-8508 Multi-function Cable Tester For RJ11/45, PoE, Fiber Optic
Features
- Wire mapping & Continuity test: Check Cat5 & Cat6 Cables status. Display length and exact faults like opens, splits, shorts, and crossings on an LCD screen.
- Cable trace: Adjustable signal strength indicator helps find cables from bundled cables, different rooms, walls, and ceilings. (300 meters/984 feet).
- Length test: Measure the length of CAT5/CAT5e/CAT6 cables up to 200 meters (656 feet). Help prepare the suitable cables for installation.
- Port flash: Sending signals through connected cables to flash ports on 10M/100M/1000M hubs, panels, routers, or switches. Sync frequency flashing on Port & LCD Screen.
- PoE test: Diagnose the PoE network by listing pins of the power supply, and other statuses like voltage, polarity, and PSE(af or at standard).

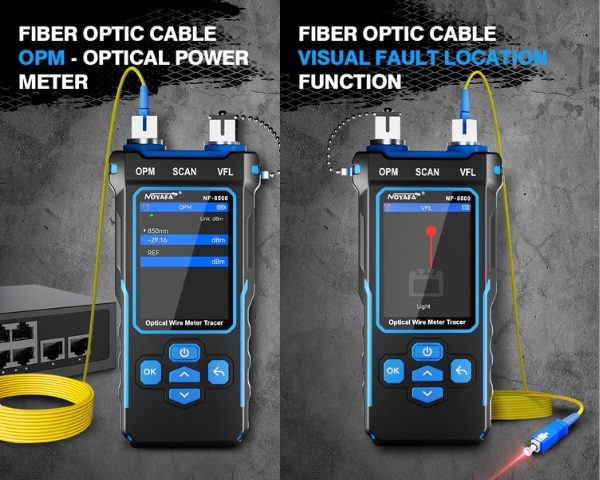

- Optical Power meter: Measure optical power and loss in single-mode optical fibers.
- Visual Fault Locator: Quickly navigate Fiber break points with visible red lights.
- RJ45 Head Test: Tell if RJ45 connectors are properly crimped.
- NCV: Non-contact voltage detector on Receiver levels up safety and reduces chances of damaging devices.
Technical Features
- Cable type: CAT5/CAT6
- Voltage protection : 60V
- Details of CONT function :
- Scan Frequency: 455KHz
- Port Flash: √
- Details of Length function:
- Accuracy: ≤20M+/-1.6M, 20M~100M+/-2.4M, >100M+/-3.2M
- Details of POE function:
- Standard/Non Standard
- End connection /Middle jumper /Powered by 8 cores
- PoE Power supply
- NVL: 10Mw
- OPM: 1310/1550/1625 (Single-mode Wavelength)
- Crimping: RJ45-8 Cores,Min length is 210cm
- Power supply: 3.7V 1500mAh Polymer lithium battery
- Charge : Type-C connector
- NCV: √
- Lamp: √
- Lower voltage warning: √
