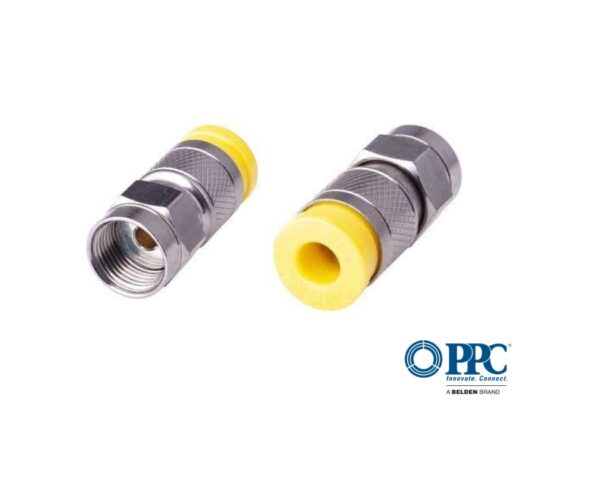

PPC CMP MC 30 compression F connector yellow – H123
Professional brass compression F connector with nickel titanium (NiTin) surface treatment designed for installation on H123 cables.
PPC places maximum emphasis on the quality of its products. Therefore, it has its own laboratory with certified personnel, where all products undergo thorough and detailed quality control from prototype to production. Products undergo, for example, an accelerated aging process thanks to salt spray chamber simulation, accelerated UV exposure, repeated temperature cycles from -40 °C to 85 °C, tensile strength, etc.
Technical Details
- Model: CMP-30
- Brand: PPC
- Bandwidth : 5MHz……2.2GHz
- impedance : 75 OHm
- current load : 2 A
- shielding : > 98 dB / 900 MHz
- installation temperature : -5°C…….+50°C
- operating temperature : -30°C…..+60°C
- tensile strength : 20 kg
- MHz / back reflection / insertion loss : 500 MHz / -42 dB / 0.1 dB
- MHz / back reflection / insertion loss : 860 MHz / -40 dB / 0.1 dB
- MHz / back reflection / insertion loss : 1000MHz / -40dB / 0.1dB
- MHz / back reflection / insertion loss : 1750MHz / -40dB / 0.1dB
- electrical strength : 2 kV
- insulation resistance : (500 V) >29.99 Gohms
- inner conductor : Resistance 1 m ? / 1A DC
- material : Brass
- surface treatment : Nitin
- compression ring : Delrin 527
| Manufacturer | PPC |
|---|
