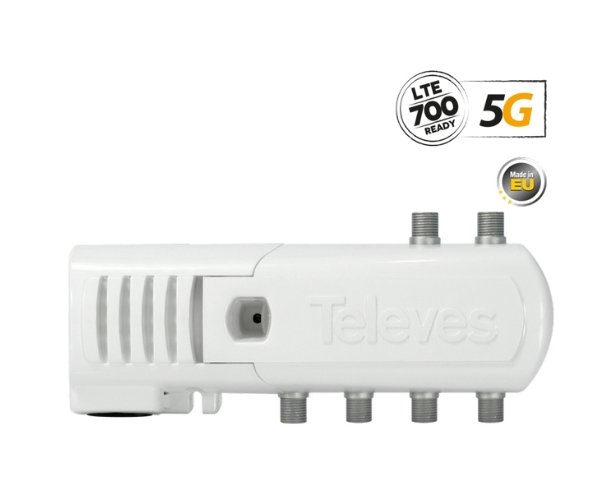

552320 Televes Line Amplifier “F” 5G LTE 16dB 5out (4+TV)

Model: 552320
SKU: 11-01-0019
In Stock
55,00
In Stock
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
SKU: 11-01-0019 Categories: , ,
  • 5 outputs (4+TV)
  • 5G / LTE rejection
  • Adjustable Gain

Description

552320 Televes Line Amplifier “F” domestic amplifier 5 outputs (4+TV): VHF/UHF – LTE700 Ready

552320 Televes Line Amplifier ,Domestic amplifier with 5 outputs (4+TV) to extend the terrestrial television domestic network.
The TV output provides a lower gain for direct connection to the television set (no outlet installation).
Equipped with LTE700/5G filtering.

Highlights
  • Low-impact visual design and limited size
  • Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
  • Fully automated manufacturing subject to the most stringent quality controls
Main features
  • Manual gain control, protected by a folding cover
  • Can be wall-mounted using screws
  • “F” connectors

SKU: 11-01-0019

Number of outputs 3
TV output Yes
Frequency range MHz
47 ... 694
Gain dB
16
Gain @TV dB
12
Output level DIN45004B dBμV
> 102
Output level EN50083 IMD3 2tones -60dB dBμV
109
Noise figure dB
6
Input voltage Vac 196 ... 253
Mains frequency 50 Hz / 60 Hz
Max. current mA 23
Max. power consumption W 2.3
Operating temperature °C -5 ... 45
Protection index 20

Additional information

Brand

Televes

Downloads

Product Sheet
