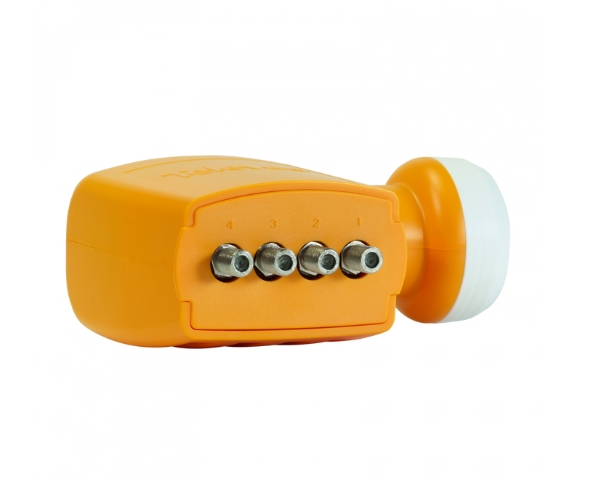

TELEVES QUAD LNB

25,00  inc. VAT

HIGHLIGHTS

Low visual impact design and small casing
High gain
Low noise figure
Outstanding linearity and careful equalization
High discrimination between polarities
Very high IP protection index (IP66)
Can be used under extreme temperature conditions




BACK TO LNBs

TELEVES QUAD LNB

Televes Quad LNB offset

Frequency range GHz 10.7 … 12.75
Control signals Horizontal Vdc 16 … 19
Control signals Vertical Vdc 12 … 14
Output frequency range MHz 950 … 2150
L.O. frequency 0KHz GHz 9.75
L.O. frequency 22KHz GHz 10.6
Gain dB 60
Noise figure dB 0.3
L.O. stability MHz -1.5 … 1.5
Polarities discrimination dB > 20
Phase noise (@10 KHz) dBc -80
Powering Vdc 11 … 19
Max current mA 150
Impedance Ω 75
Clamp diameter mm 40
Operating temperature °C -30 … 60
