RS 42U 19″ Vertical Stand Cabinet 600X600 COMPACT
Model: RS42U60W60VS
- *Not Assembled*
- Fans & Shelfs not included
- Wheels Included
- Rack Unit: 42U
- Width: 60cm
- Depth:60cm
- Height: 200cm
Only 2 left in stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

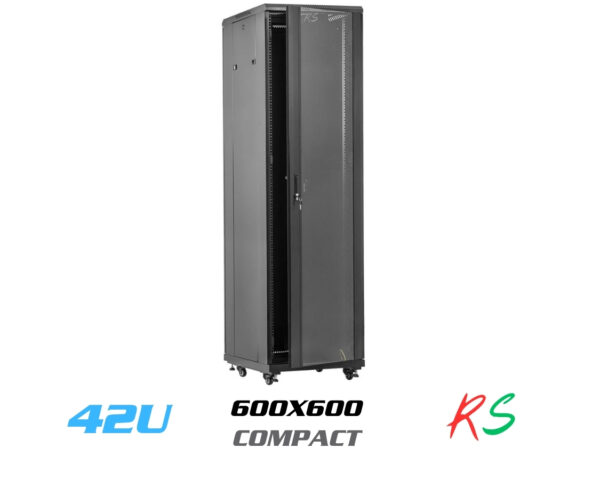

The RS42U60W60VS 42U Floor Cabinet (600×600mm) is a strong and reliable rack designed to safely store networking, CCTV, and server equipment. Made from high-quality steel, it offers durability and stability for professional use in offices, shops, and installations.
It comes empty to become budget friendly, it includes wheels for easy movement, and floor stands (adjustable feet) for stable placement. The cabinet also features lockable front and rear doors, removable side panels, and cable entry points for clean and organized installation.
Technical Specifications:
- Type:Vertical Floor Standing Rack Cabinet 19″
- Code: RS42U60W60VS
- Rack units: 42U
- Dimensions: 600 (W), 600 (D), 1022 (H) mm
- Rack rails width: 19″ / 483 mm (W)
- Rack rails thickness: 2,0 mm
- Number of doors: 2
- Front door: Steel frame, glass 5.0mm and swivel handle lock
- Back door: Yes with lock
- Removable side panels: Yes, with optional lock
- Locking: Yes, on all sides
- Cable entry: 2x on the top, on the base
- Ventilation slots: Yes
- Grounding: Yes
- IP protection: IP20
- Easy Hang System: No
- Load capacity: up to 800 kg
- Material, thickness: Steel 1,2 mm
- Surface finishing: Electrostatic painting
- Color: RAL 9005 Black
- Packing type: Unassembled, 1 Pcs Flat Package
Package includes:
- Free-Standing Cabinet 42U (Unassembled)
- Grounding KIT
- Ground spacers
- 2 x Keys
- Screws & Nuts
Packed in 1 pcs(carton), For assembly please request upon ordering.(EXTRA COST)
Returns will not be acceptable for assembled units
| Dimensions | 60 × 60 × 200 cm |
|---|---|
| Manufacturer | RS |
| Cabinet Size | 42U |
| Cabinet Depth | 60cm |
Instructions
Step 1
- Put 2 frames on the workbench.
- Top and bottom panel from two sides cover the frame, notice top panel with big square hole side is the cabinet back, ensure frame distance: 312/512/612/772 (cabinet depth is 600/800/900/1000).
- Make frame, beam, top panel, and bottom panel inside fitted, tighten up the 25 M8 screws and flange nut.
Step 2
4. Use square nut and M6*12 screw to fix the mounting angle on the front and back frame. (Lower 27U with 4 pcs, above 32U with 6 pcs). The upper and lower ends of the upright column respectively leave a blank square hole, and the mounting angle was installed with 4 square nuts (left 4 holes in front and back). Prepare for the next install mounting profile.
Step 3
5. Use square nut and M612 screws to fix 4 mounting profiles, and check if the mounting profile broadwise is 19 inches. Adjust depth distance suitable for installation of a fixed shelf.
6. Use 16 M58 self-tapping screws to install 4 heavy-duty castors. According to customer needs, decide whether to install feet.
Step 4
7. Slide door bottom stand bar is inserted into the square hole of the bottom panel, make the lock catch fit into the upright column, adjust the two side space uniformly.
Step 5
8. Firstly, install the cabinet door latch into the bottom panel (same as photo). Secondly, install the front and rear door into the cabinet and ensure the upper and upper frame edge spacing is uniform.
9. Fix the earth connection wire on the front back bottom right with an M6 cage nut.
