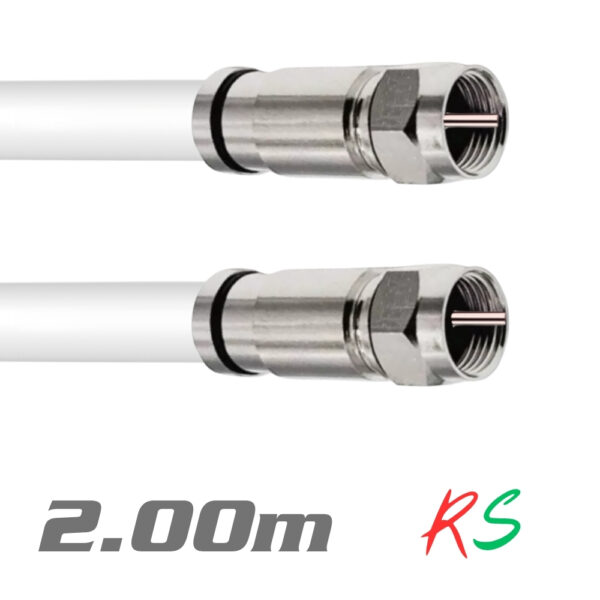

RS58200 is a 2.0 meter long coaxial cable lead, pre-terminated with compression connectors(F Connector for RG6 Compressed RS2240), F Type at one end and F Type at the other end. Made with the COAXIAL Cable ICX Series CCS AL Eca PVC White, offering high shielding and low attenuation.
Cable Details
- Type: Coaxial Cable RG-6, double shielded, 17VAtC indoor
- Suitable for Terrestrial, Cable TV, Satellite reception and CCTV installations
- Class A
- CPR Class: Eca
- Standards: EN 55075
- Inner Conductor: Diameter 1,00 ± 0,02 mm / Material: Copper Clad Steel (CCS)
- Foam Dielectric: Diameter 4,7 mm / Material: Polyethylene foam (FPE)
- Foil: Aluminum (AL) with coverage 100%
- Braid: Aluminum mesh (AL) 16x8x0,12 mm with coverage 77%
- Jacket: Diameter 6,6mm ± 0.10 mm / Material: PVC White
- Impedance: 75 Ohm
- Minimum Bending Radius: 35mm
- Shielding: >85 dB (typ.130dB)
- Return Losses 5-862 MHz: >20 dB / 862-2150 MHz: >18 dB
Connector Details
- Brass with nickel plated
- Works with most standard compression tools.
- Outstanding shielded against interference
- Connector type for RG6 Cable
| Manufacturer | RS |
|---|---|
| Length | 2.00m |
