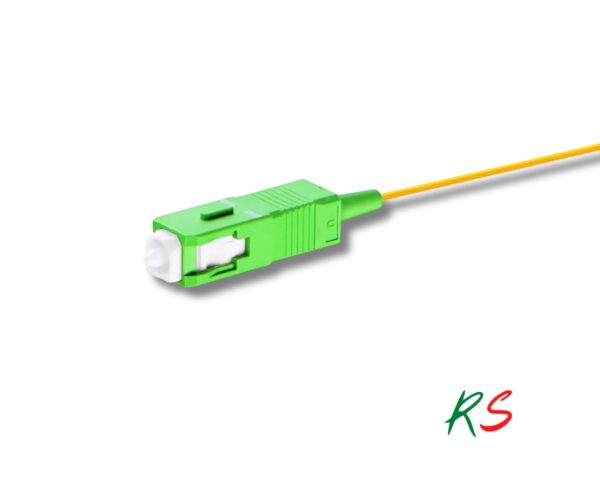

RS460221 – Splicing Fiber Optic Pigtail 0.9mm SC/APC SM G.657A1 1m LSZH
High-quality single-mode fiber optic splicing pigtail with SC/APC connector, G.657A1 bend-insensitive fiber and 0.9mm LSZH jacket. Designed for low insertion loss and reliable indoor fiber terminations.
Key Highlights
- SC/APC connector with low insertion loss & high return loss
- Single Mode OS2 G.657A1 bend-insensitive fiber
- 0.9mm tight buffer for easy splicing and handling
- Factory-polished connector for consistent performance
- Ideal for splice trays, ODFs and fiber enclosures
Technical Data
ss
| Product Type | Fiber Optic Splicing Pigtail |
| Part Number | RS460221 |
| Connector Type | SC / APC |
| Fiber Mode | Single Mode (OS2) |
| Fiber Standard | ITU-T G.657.A1 (Bend Insensitive) |
| Cable Type | Simplex Tight Buffer |
| Cable Diameter | 0.9 mm |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Yellow |
| Length | 1 m |
| Ferrule Material | Zirconia Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 55 dB (APC) |
| Minimum Bend Radius | 10 mm (static) / 30 mm (dynamic) |
| Operating Temperature | -40°C to +85°C |
| Fiber Cable Connector | SC/APC |
|---|---|
| Fiber Count | 1 |
| Fiber Mode | Single Mode |
| Length | 1.00m |
| Manufacturer | RS |
