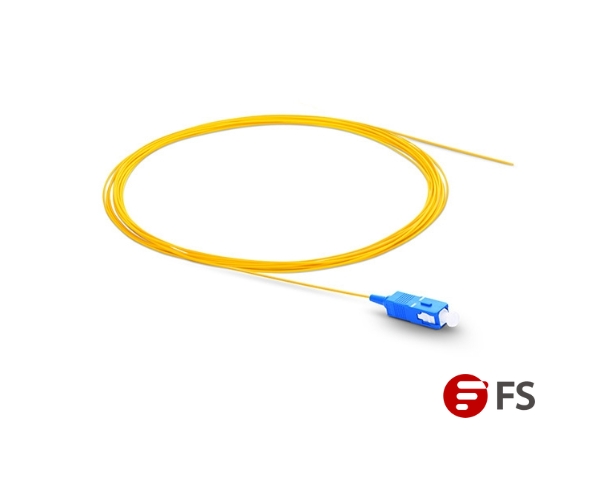

Fiber optic pigtails are designed to support fusion and mechanical splicing for fiber cabling systems. They provide a fast way to make communication devices in the field.
The OS2 bend-insensitive fiber optic pigtails have less attenuation when bent or twisted than traditional fiber optic pigtails, making installation and maintenance more efficient
| Connector A | SC UPC Simplex | Connector B | Unterminated |
| Fiber Count | 1 Fiber | Fiber Grade | G.657.A1 |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Jacket Color | Yellow | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 0.9mm | Cable Jacket | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 Times | Standard | RoHS Compliant |
| Attenuation at 1310nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Vibration | ≤0.2dB | Interchangeability | ≤0.2dB |
| Operating Temperature | -40 to 75°C (-40 to 167°F) | Storage Temperature | -45 to 85°C (-49 to 185°F) |
| Manufacturer | FS |
|---|---|
| Fiber Cable Connector | SC/UPC |
| Fiber Count | 1 |
| Fiber Mode | Single Mode |
| Length | 1.00m |
