TELEVES 560601 PicoKom Line Amplifier 5G LTE UHF/VHF/SAT 2out
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

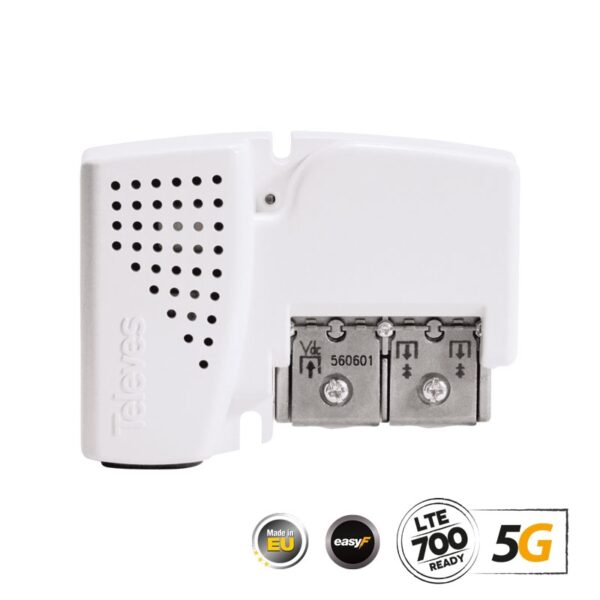

The TELEVES 560601 PicoKom Line Amplifier AGC UHF/VHF/SAT 2out 5G LTE, is a Plug & Play indoor line amplifier for bands UHF/VHF/FM and SAT, with SAT amplifier (when the DC OUT function is ON), in a very compact and sleek design . It provides splitband amplification VHF/UHF with a built-in switched power supply unit. It also features a switch on the back, for DC output towards Televes TForce BOSS antennas, active dipoles, etc., while the function of Automatic Gain Control (AGC), continouously monitors and adjusts high input signal levels ιν UHF/VHF, to provide the optimal signal to TVs. Made of Zamak alloy, for corrosion resistance and electromagnetic shielding. With Easy-F connections for fast and secure connection without plugs.
With pre-amp DC output, ideal for Televes TFORCE B.O.S.S. antennas.
Technical features:
- With pre-amp DC output (on/off), ideal A.G.C amlifier, for Televes TFORCE B.O.S.S. antennas.
- Integrated function for 5G cutoff
- Inputs: 1, UHF/VHF/FM (MHZ 47…694) / SATmix (MHZ 950…2150) and SAT amplifier with DC switch “ON”. With 5G interference cutoff from channel UHF 49 upwards
- Outputs: 2
- EASY-F connections
- Gain: UHF/VHF/FM: 12 db, SATmix: 0 db, SAT amplifier with DC switch “ON”: 23 db. Plus, Automatic Gain Control for UHF/VHF/FM
- Automatic Gain Control : dB 0…20
- Output level dBμV: 103 / DIN 45004B
- Noise figure dB: UHF, VHF/FM: 5 , SAT: 4
- Supply VAC 196-253, Frequency 220ν: Hz 50/60
- Pre-amplifier power supply: VDC 12V, max.mA 150
- Through current Output-to-Input, mA: 300 max
- Power consumption: 3,7 W
- IP rate: ΙΡ20
- Working Temperature: -5…+45 C
- Dimensions: 90 Χ 68 Χ 28 mm
| Manufacturer | TELEVES |
|---|---|
| Project Scenario | In-Line |
| Frequency Range | 47-694 |
