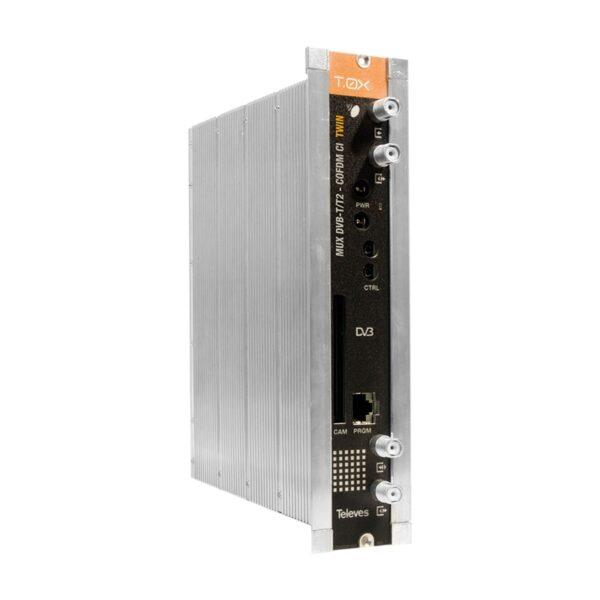

Televes 565101 T.0X DVB-T/T2-COFDM CI TWIN MUX REGENERATOR
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
These twin DTT multiplexers distribute two different MUX COFDM outputs services from the TWO DTT input multiplexes, either in DVB-T or DVB-T2 format. The main function is the regeneration of DTT signals and/or input services filtering. They also offer a new feature which allows the possibility of distributing DVBT2 signals to those TVs or DTT/QAM receivers incompatible with this new broadcast standard. They can mix FTA and encrypted services in the same multiplex and also include a SECURE DCY to prevent CAM card flooding in case new PIDs appear.
Technical features:
DVB-T2 COMPATIBILITY FOR DVB-T RECEIVERS
– Fully configurable TWIN (2-multiplex) output.
– Mix in the same output multiplex services from both DVB-T or DVB-T2 input multiplexes.
– Edit the transport stream parameters (TS_id, ON_id and LCN).
– Compatible with professional CAM modules/cards.
– Configurable and remote-monitored via CDC.
– Set the services of the output multiplexes by only adding the desired PIDs.
– Information about the useful rate of the input services.
– Information about the output channel occupancy.
DVB-T / DVB-T2 Input
– Input frequency MHz: 150 – 862
– Frequency Step kHz: 125, 166 (Selec.)
– Input/Output connectors: ”F” female
– Input impedance ohm: 75
– Through losses (tip.) dB: < 1,5
– Bandwidth DVB-T MHz: 6, 7, 8
– Bandwidth DVB-T2 MHz: 1.7, 5, 6, 7, 8
– Pre-amplifier powering Vdc: 0, 12, 24 (Selec)
– Input R.O.E (min.) dB: 10
COFDM Modulator
– Modulation format: QPSK, 16QAM, 64QAM
– Guard Interval: 1/4, 1/8, 1/16, 1/32
– FEC: 1/2, 2/3, 3/4, 5/6, 7/8
– Bandwidth MHz: 7,8
– Scrambling:DVB ET300744
– Interleaving: DVB ET300744
– Cell_id: Selectable
– Output spectrum (selec.): Regular / Inverted
RF Output (TWIN)
– Output frequency (selec.) MHz 46 – 862
– Maximum output level (selec.) dBμV 80 ±5
– Frequency step kHz: 166 – 125 (user selectable)
– Attenuation (progr.) dB: > 15
– Through losses (typ.) dB: < 1,5
– Return losses (typ.) dB > 12
– Input/Output connectors: ”F” female
– Input impedance ohm: 75
General
– 24Vdc consumption mA: 450 – 600, depnding on pre-amplifier powering or inserted CAM
– Protection Index: IP20
| Weight | 1.22 kg |
|---|---|
| Manufacturer | TELEVES |
