Televes 565801 T.0X DVB-S2 MUX 3TP CI to 32 IP STREAMS

Televes 565801 Satellite IP Streamer

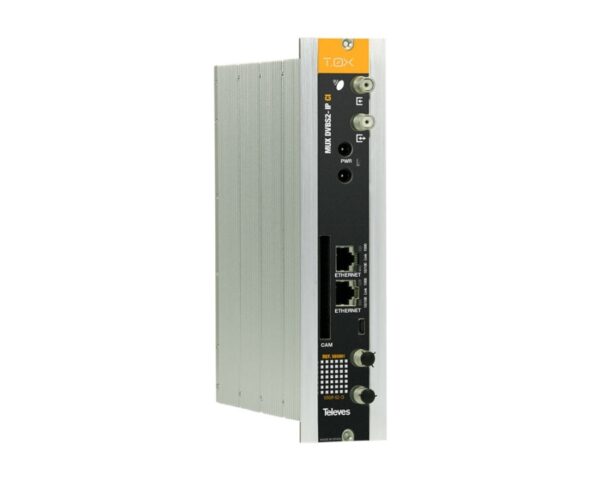

The 565801 T.0X DVB-S2 MUX 3TP CI to 32 IP STREAMS, has three demodulators (TS A, TS B, TS C). It generates an IP encapsulated output from the multiplexing of the services available in these 3 different TV SAT transponders, from 2 different satellites (2 independent SAT inputs), or from a single satellite, using the headend’s input loop. The encrypted satellite channels can be transformed into free IP services through the CI interface and the appropriate CAM module. It produces from its output 32 IP streams SPTS and has DiSEqC 1.0 for multiswitches control. It also features: Web Interface, Service decryption by insertion of a PCMCIA module, Access to the headend configuration through a self-created WiFi network (using the kit with ref.216802), Internal switch for IP out Daisy chain of several modules, Programming of the entire headend selecting one of the module as a master. Once the master mode is activated, the unit searches for other units connected to the network (ETH2). The units can be visually ordered in the web interface to identify them more easily with the real position in the headend.

Main features:

– CONTROL & CONFIGURATION: via Wi-Fi with OTG USB-microUSB cable + WiFi adapter (Ref. 216802) and/or Embedded Web Interface for module configuration: Configuration of the entire headend selecting one of the module as a master, Automatic detection of the modules that are connected to the master, Selection of services among the 3 input transponders to distribute in streaming, Provides flow information of each service to estimate the global output flow of the module, Device monitoring and signal status LEDs.
– Multiple services can be added at once by selecting one base IP address and one base port, such as the wanted services, and an IP address or port auto-increment. The web interface will automatically generate the IP multicast addresses of each of the services, in terms of the selected parameters.
– Separated networks in each module: Each unit has two Ethernet RJ45 connectors, which can be used on an single network or on two separate networks, one for control and the other for video distribution. Users can be enable the separation of these networks (Split Net Ports) and configure the IP address, subnet mask, and default port link, as well as the DHCP client mode.
– Cloning of headends configurations: The web interface allows to export/import files for duplicating units (or complete headends) configurations. This function helps to reduce time in typical installations, due of having previously a configured file. The exportation of these files also allows to have a headend configuration backup.
– Status reports generation: Users can download report files on the selected unit, or of the complete headend, to make easier debugging in the event of an incident.

Technical features:

SATELLITE INPUT
– Input frequency MHz: 950…2150
– Input level dBm: -60 to -20
– Symbol rate Mbaud: 2 – 45
– Frequency steps MHz: 1
– In/Out connectors: F female
– Input impedance: Ω75
– LNB powering Vdc/KHz: 13 – 17 – OFF / 22KHz (ON-OFF)
– Satellite selection (DiSEqC): A, B, C, D
– Through losses (typ.) dB: < 1,5
– Modulation: DVB-S2: QPSK, 8PSK, DVB-S: QPSK
– FEC inner code LDPC: 9/10, 8/9, 5/6, 4/5, 3/4, 2/3, 3/5, 1/2
– FEC outer code: Bose-Chaudhuri-Hocquenghem
– Roll-Off factor %: 20, 25, 35
– Input SWR (min.) dB: 10

IP OUTPUT
– Number of IP services: Max. 32
– Maximum bitrate Mbps 150
– Mode: Multicast/Unicast
– Format: UDP SPTS
– Protocol: IPv4, UDP, DHCP
– Service signaling SAP / M3U/ Pro:Centric
– Connectors: 2 X RJ45 (1 GB Ethernet 1000 BaseT)

GENERAL
– Consumption 24Vdc (Unit+CAM+LNB) mA: 1050 max. (450+100+250/LNB)
– Protection index IP: IP20
– Operating temperature range C: 0…45 (higher temperatures demand forced ventilation)
