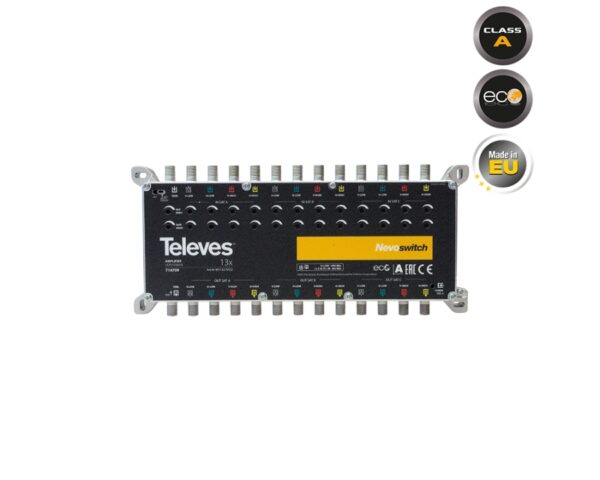

TELEVES 714709 NEVOSWITCH AMPLIFIER 13×13
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
714709 NEVOSWITCH 13×13 amplifier belongs to a new range of input/multiple output switches. NEVOSWITCH 13 is a range of 13 input multiswitches (12 satellite polarities + Freeview). Expand the number of users by cascading two or more units. Small and compact design to provide an easy and quick installation. Highlights: Radiation inmune thanks to its zamak made chassis. All switch references are valid for standalone, star or cascade configuration. Selectable IF gain for each group of users to balance the output signals. The voltage/current can be activated/deactivated in the MSW amplifiers to power pre-amplifiers, BOSS antennas, etc.. ECO mode: the overall consumption is reduced as the number of users decreases. Main features:Use the same multiswitch in either star/cascade or standalone configuration. Small sized design: Make the most of space to accomodate more TV subscribers.
Technical features:
– Type 13×13
– Frequency range MHz: SAT 950-2400 , TER 88-862 Return 5-65
– Output level dBμV: SAT 110 , TER 110
– Gain db: SAT 25, RF 27, RP -3, Regulation 10, Slope 0 .. 7
– Isolation db: >25
– Powering: Vdc 12
– DC pass In-Out /Out-In
– Max. total consumption mA: Power Supply 12Vdc (PWR) 950
– Temperature Range C : -5 +45
– Protection level: IP20
– Dimensions mm 280 x 120 x 30
– 2-year warranty
| Multiswitch Inputs | 13 inputs |
|---|
