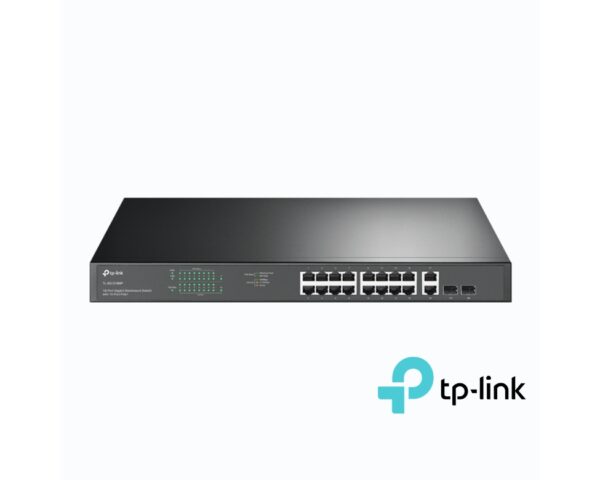

TP-Link 18-Port Gigabit Switch with 16 PoE+ TL-SG1218MP
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

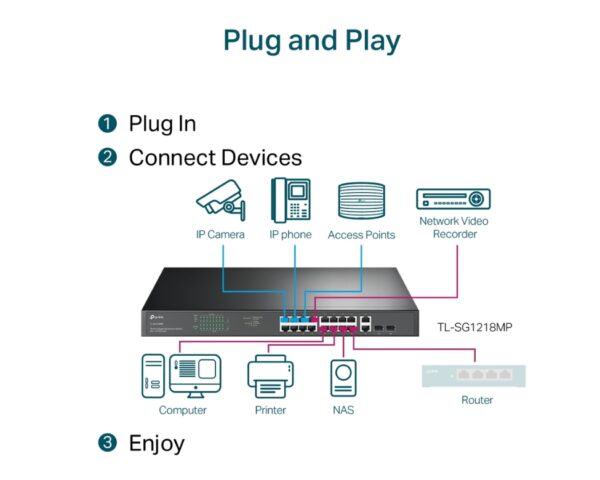

The TP-Link TL-SG1218MP is an 18-Port Gigabit Rackmount PoE+ Switch featuring 16 PoE+ ports, 2 Gigabit uplink ports and 2 Combo SFP slots. With a powerful 250W PoE budget, QoS support and Gigabit performance, it is ideal for IP surveillance, wireless access points, VoIP systems and business networks.
Technical Features
- 16 Gigabit PoE+ Ports
- 2 Gigabit RJ45 Uplink Ports
- 2 Combo Gigabit SFP Slots

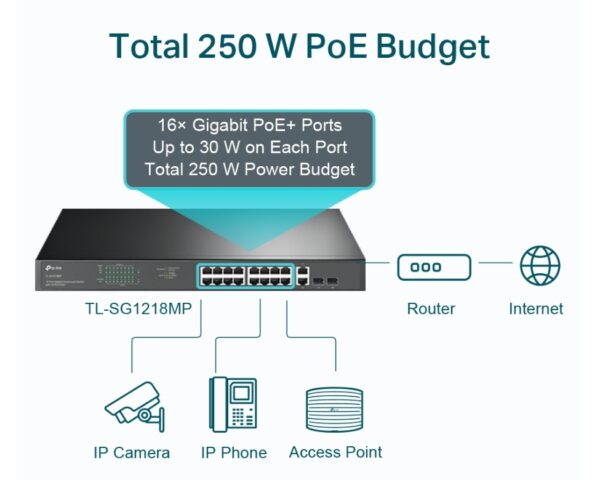

- 250W Total PoE Budget
- Up To 30W Per PoE+ Port
- IEEE802.3af/at PoE Support
- 36Gbps Switching Capacity
- QoS Traffic Prioritization
- 10KB Jumbo Frame Support
- Rackmount Design
- Ideal For CCTV, WiFi and VoIP Deployments
Technical Details
- Standards and Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1q, IEEE802.1p

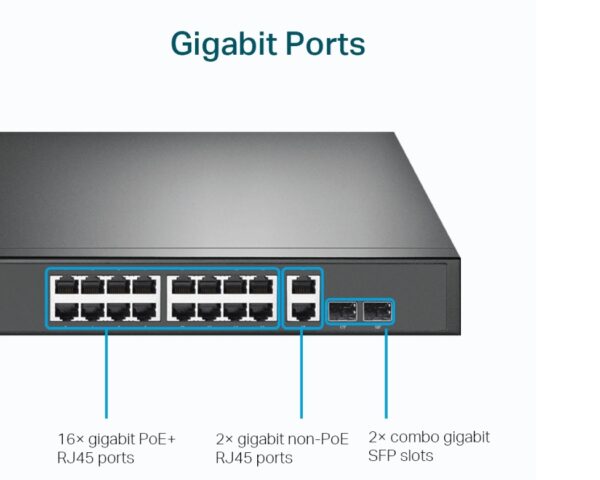

- Interfaces:
- 16 × Gigabit PoE+ RJ45 Ports
- 2 × Gigabit Non-PoE RJ45 Ports
- 2 × Combo Gigabit SFP Slots
- Network Media:
- 10BASE-T: UTP Category 3, 4, 5 Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 100BASE-TX: UTP Category 5, 5e Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 1000BASE-T: UTP Category 5, 5e, 6 Or Above Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 1000BASE-X: MMF, SMF
- Fan Quantity: 2
- Physical Security Lock: Yes
- Power Supply: 100-240VAC, 50/60Hz
- PoE Standard: IEEE802.3af/at
- PoE Ports: Ports 1-16
- PoE Budget: 250W

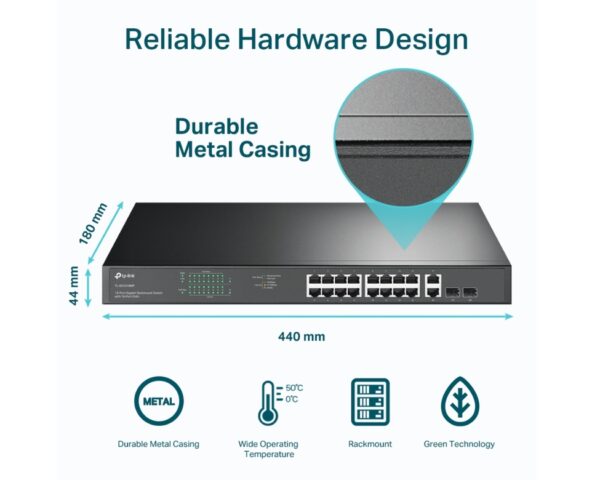

- Dimensions: 440 × 180 × 44mm
- Mounting: 19″ 1U Rack Mountable
- Maximum Power Consumption: 21.4W (No PD Connected), 286.6W (With 250W PD Load)
- Maximum Heat Dissipation: 73.0 BTU/h (No PD Connected), 977.4 BTU/h (With 250W PD Load)
- Switching Capacity: 36Gbps
- Packet Forwarding Rate: 26.78Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1Mbit
- Jumbo Frame: 10KB
- Advanced Features:
- Compatible With IEEE802.3af/at Powered Devices
- 802.1p/DSCP QoS
- MAC Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control
- Backpressure For Half-Duplex Mode
- Transmission Method: Store-And-Forward
- Certifications: CE, FCC, RoHS
- Operating Temperature: 0°C ~ 50°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% RH Non-Condensing
- Storage Humidity: 5% ~ 90% RH Non-Condensing
Package Contents:
- TL-SG1218MP Switch
- Installation Guide
- Power Cord
- Rackmount Kit
- Rubber Feet
| Manufacturer | TP-Link |
|---|---|
| POE Budget | 250W |
| POE Ports | 16 |
| Power over Ethernet (PoE) | PoE+ |
| Switch Type | Unmanaged |
| No of SFP Ports | 2 |
| Device Total Ports | 18 |
| Speed | Gigabit |
| Mount Type | Rack Mount |
| POE Switch | Yes |
| SFP Ports | With SFP Ports |
