24 FO Fiber Distribution Box Large RS460805
Item code: RS460805
Brand Model: FDB-19024E
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

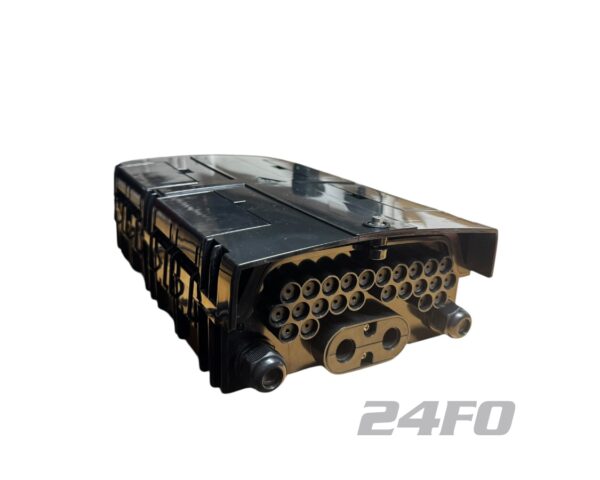

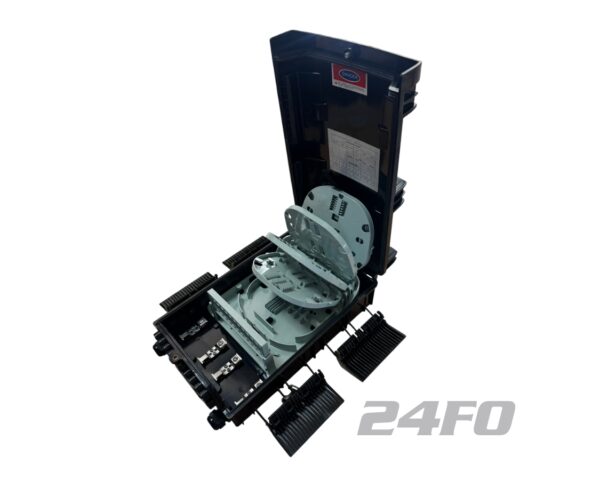

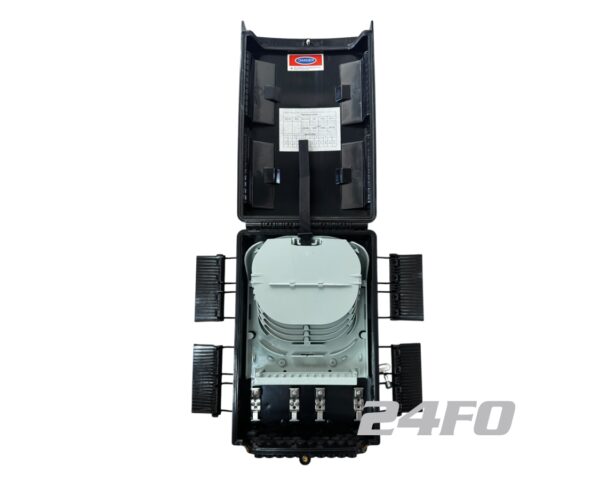

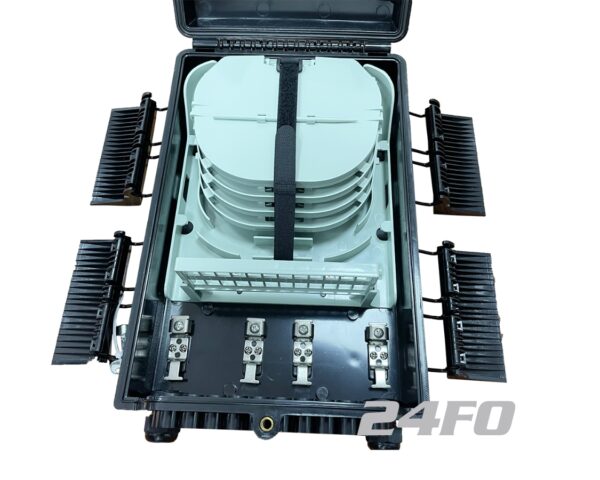

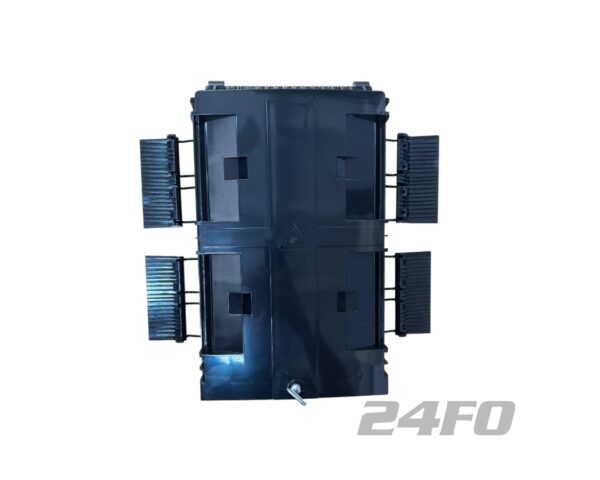

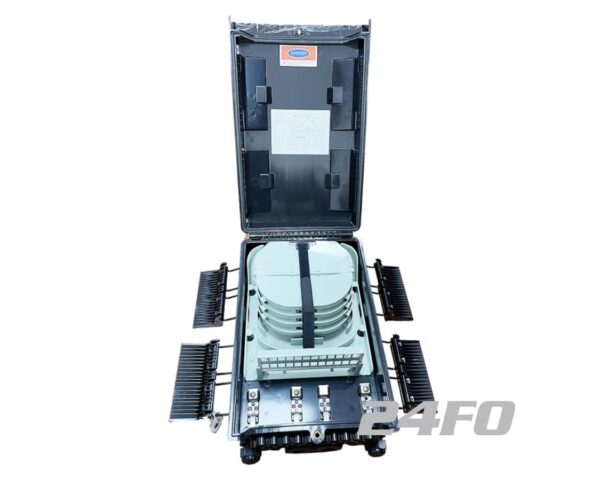

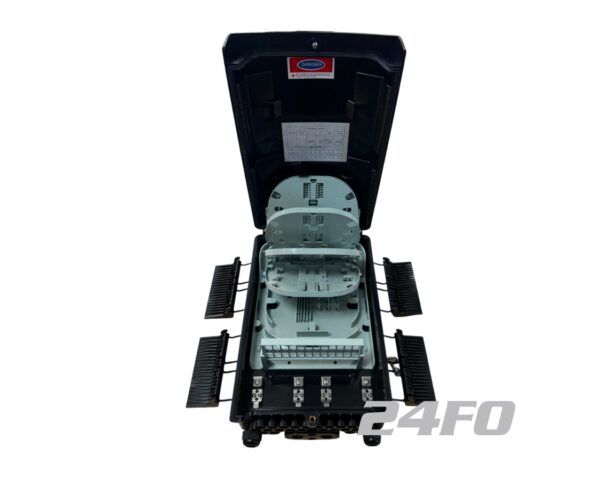

FDB-19024E Fiber Termination Box RS460805 24 Fibers
Designed for FTTx networks, the 24-core fiber box supports splicing, distribution & protection in compact IP65-rated housing.
Wall or pole mounted, supports 24 SC adapters & 4 splice trays. Perfect for reliable indoor/outdoor fiber terminations.
| Specification | Details |
|---|---|
| Model | FDB-19024E |
| Material | PC+ABS |
| Protection Level | IP65 |
| Max Capacity | 24 SC Adapters, 4 Trays x 24F, 1:8 x 4 PLC Splitters,24 LC DX |
| Size (AxBxC) | 340 x 220 x 95 mm |
| Installation Size (DxE) | 50 x 335 mm |
| Working Temp | -40℃ to +60℃ |
| Relative Humidity | ≤85% (+30℃) |
| Atmospheric Pressure | 70KPa ~ 106KPa |
| Insertion Loss | ≤0.3dB |
| UPC Return Loss | ≥50dB |
| APC Return Loss | ≥55dB |
| Durability | ≥1000 insertions |
| Ground Isolation | ≥2×10⁴ MΩ/500V (DC) |
| Withstand Voltage | ≥3000V (DC)/min, no puncture |
