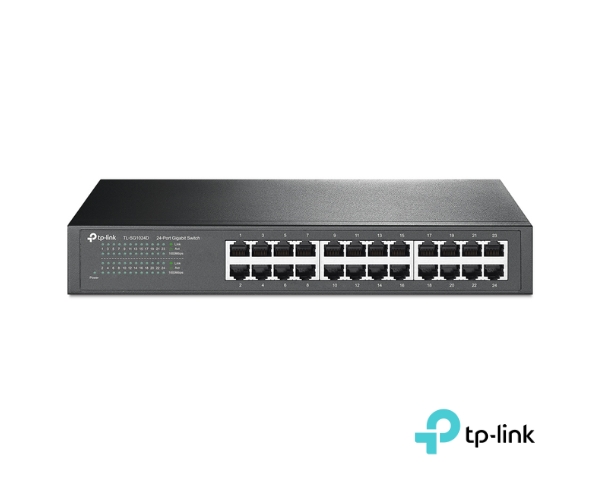

TP-Link 24Port Gigabit Rackmount Switch TL-SG1024D
- 24Port Gigabit Unmanaged Desktop Switch
- Connect up to 23 devices
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The TP-Link TL-SG1024D is a 24-Port Gigabit Desktop/Rackmount Switch designed for high-performance business networking. Featuring 24 Gigabit ports, energy-efficient technology, isolation mode and plug-and-play installation, it delivers reliable network expansion for offices, workgroups and CCTV systems.
Technical Features
- 24 Gigabit Ethernet Ports
- 10/100/1000Mbps Auto-Negotiation
- Auto MDI/MDIX Support
- 48Gbps Switching Capacity
- Isolation Mode Support
- Loop Prevention Function
- Energy Efficient Technology
- 10KB Jumbo Frame Support
- Store-and-Forward Switching
- Rackmount Installation
- Plug and Play Operation
- Fanless Design
Technical Details
- Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x
- Interfaces: 24 × 10/100/1000Mbps RJ45 Ports
- Auto Negotiation: Yes
- Auto MDI/MDIX: Yes
- Network Media:
- 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
- 100BASE-TX / 1000BASE-T: UTP Category 5, 5e Or Above Cable (Maximum 100m)
- Fan: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Power Consumption: Maximum 13.1W (220V/50Hz)
- Maximum Power Consumption: 13.62W (220V/50Hz)
- Maximum Heat Dissipation: 46.44 BTU/h
- Dimensions: 294 × 180 × 44mm
- Mounting: Rack Mountable
- Switching Capacity: 48Gbps
- Packet Forwarding Rate: 35.7Mpps
- MAC Address Table: 8K
- Isolation Mode: Ports 1-22
- Loop Prevention: Ports 1-24
- Jumbo Frame: 10KB
- Green Technology: Yes
- Transfer Method: Store-and-Forward
- Certifications: FCC, RoHS
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% Non-Condensing
- Storage Humidity: 5% ~ 90% Non-Condensing
Package Contents:
- 24-Port Gigabit Desktop/Rackmount Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet
| Switch Type | Unmanaged |
|---|---|
| Speed | Gigabit |
| Device Total Ports | 24 |
| Mount Type | Desktop, Rack Mount |
| Manufacturer | TP-Link |
| POE Switch | No |
