RS 28-Port Gigabit POE Switch SST-P24ET2ET2S
- 24 Port POE
- 2 Uplink
- 2SFP
- POE Budget: 285W
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

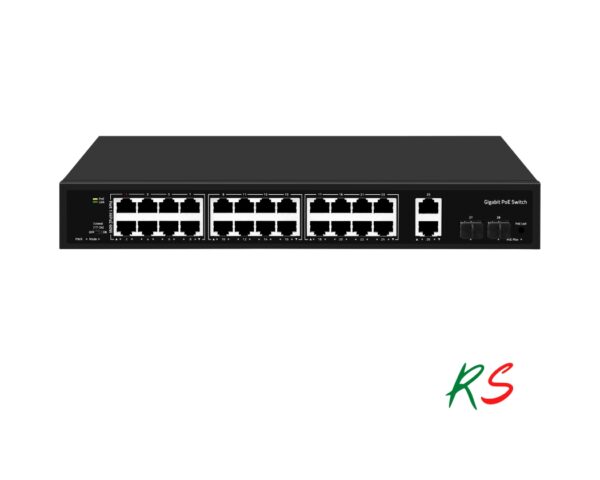

The RS 28-Port Gigabit PoE Switch combines 24 Gigabit PoE ports, 2 Gigabit uplink ports and 2 SFP fiber ports in a high-performance rackmount solution. With a 285W PoE budget, HiPoE 60W support, PoE Watchdog and Extend Mode up to 250m, it is ideal for CCTV, IP telephony and enterprise networks.
Technical Features
- 24 × Gigabit PoE Ports
- 2 × Gigabit RJ45 Uplink Ports
- 2 × Gigabit SFP Fiber Ports
- Port 1 HiPoE 60W Support
- IEEE802.3af / IEEE802.3at PoE Standards
- 285W Total PoE Power Budget
- Extend Mode up to 250m
- Automatic PoE Watchdog Function
- 56Gbps Switching Capacity
- 4KV Surge Protection
- Rackmount/Desktop Installation
- Ideal for CCTV, Access Control and IP Networks
Technical Details
- Model: SST-P24ET2ET2S
- Interfaces: 24 × 1Gbps PoE Ports, 2 × 1Gbps RJ45 Ports, 2 × 1Gbps SFP Ports
- Port Standards: IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE802.3z (Gigabit Ethernet Fiber Standard)
- Switching Bandwidth: 56Gbps
- Packet Forwarding Rate: 41.644Mpps
- Packet Buffer: 3Mbit
- MAC Address Table: 2K
- Transmission Method: Store and Forward
- PoE Standards: IEEE802.3af (15.4W), IEEE802.3at (30W)
- PoE Output Voltage: DC 44-57V
- Port 1: HiPoE 60W
- Ports 2-24: PoE Output <30W per Port
- PoE Power Budget: 285W
- AC Input: 100-240V 50/60Hz
- DC Output: 52V 5.76A
- Mainboard Power Consumption: 14.27W
- Product Dimensions: 320 × 207 × 44mm
- Packaging Dimensions: 370 × 290 × 85mm
- Product Net Weight: 1.967kg
- Product Gross Weight: 2.497kg
- Fan Quantity: 1
- Installation: Desktop
- Port Surge Protection: Common Mode 4KV, Differential Mode 2KV
- Electrostatic ESD Protection: Air 8KV, Contact 6KV (Class C)
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90%, Non-Condensing
- Storage Humidity: 5% ~ 95%, Non-Condensing
- LED Indicators
- PWR Green LED: On – Powered On, Off – Powered Off
- Ports 1-28 Green LED: On – 10/100/1000Mbps Link Normal, Off – Link Blocked, Flashing – Data Transmitting
- PoE Yellow LED: On – PoE Powered On, Off – PoE Powered Off
- PoE Max Green LED: Off – PoE Usage Less Than 90%, Flashing Once Per Second – PoE Usage 90% ≤ P ≤ 95%, On – PoE Usage 95% < P < 100%
- Mode Green LED: Off – Extend Off, Flashing – Extend On
- PoE LED Button: Dual Color Light Selection, Default Green (Link Data), Switch Yellow (PoE)
- Extend Mode Button: Off – All Ports Communicate Normally, Distance Up To 100m, Speed 10/100/1000Mbps Adaptive, PoE Watchdog Off
- Extend Mode Button: On – Ports 17-24 Forced To 10Mbps, Transmission Distance Extended Up To 250m, PoE Watchdog Automatically Activated

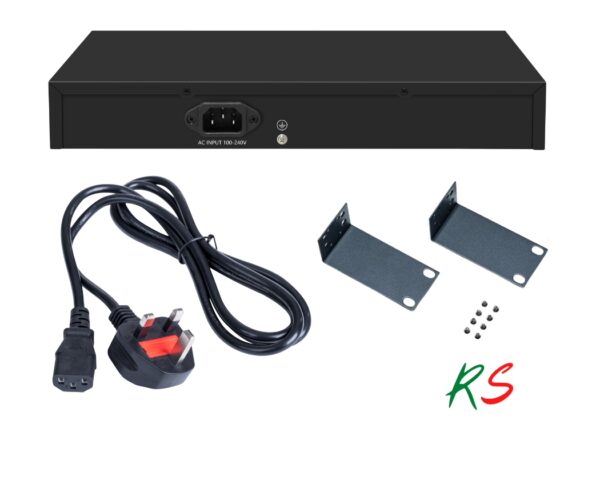

- Package Contents: Switch × 1, Power Cord × 1, Manual × 1, Certificate of Inspection × 1
| Manufacturer | RS |
|---|---|
| Device Total Ports | 28 |
| POE Budget | 285W |
| POE Switch | Yes |
| Power over Ethernet (PoE) | PoE |
| No of SFP Ports | 2 |
| SFP Ports | With SFP Ports |
| Speed | Gigabit |
| Mount Type | Rack Mount |
| POE Ports | 24 |
| Switch Type | Unmanaged |
