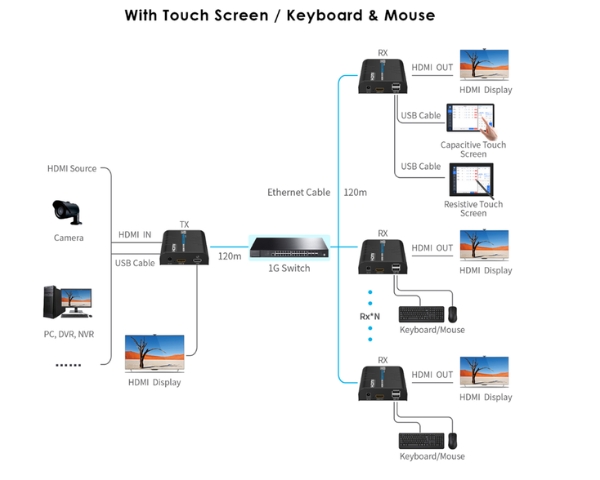

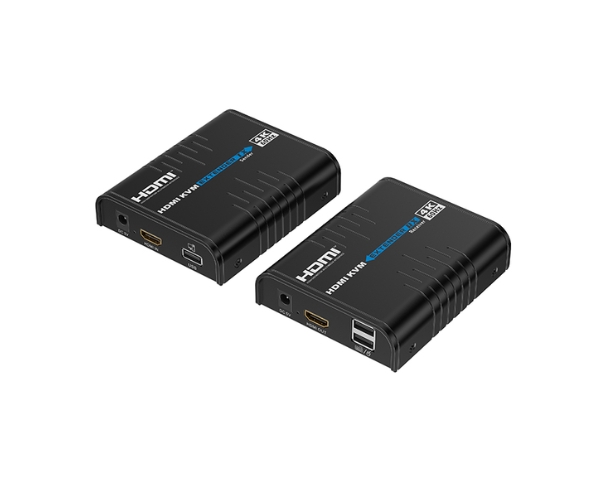

4K@60Hz HDMI™ KVM Extender Over IP kit consisting of a sender and a receiver. The 4K@60Hz HDMI™ signal can be extended up to 120m via Cat 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades, It also supports KVM function, and can be widely used in meetings, home entertainment, educational presentations, and other fields.

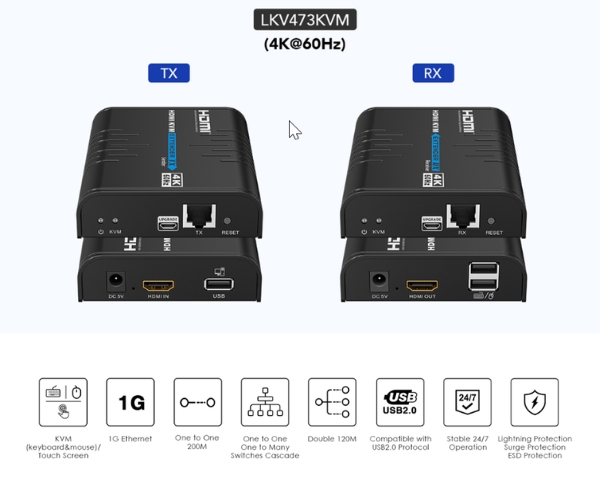

Technical Features
- 1G Ethernet

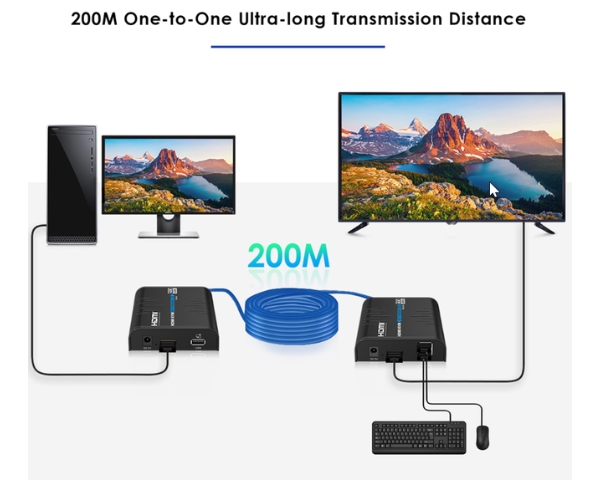

- One to One 200m, One to One/ One to Many, Switches Cascade
- Up to 120m CAT6
- Compatible with USB2.0 Protocol
- Support stable 24/7 Operation
- HD and Low Latency
- Support up to 4096×2160@60Hz resolution
- Support KVM control signal passback
- ESD Protection
Technical Details
- HDMI length: ≤ 5m
- Maximum transfer rate:18Gbps
- Compatibility:HDMI 2.0，HDCP 1.4/HDCP 2.2
- Resolutions: 4096×2160@24/30/50/60Hz, 3840×2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920×1200, 1680×1050, 1600×900, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600
- Transmission distance: CAT5 80m / CAT5E 100m / CAT6 120m
- Transmission latency: 1080P: 80~110ms ，4K@60Hz: 120~170ms
- HDMI output: LPCM 2.0
- Power Supply: TX：DC 5V/1A，RX：DC 5V/1A
- Power Consumption: TX ≤ 3.5W，RX ≤ 2.5W
- Working temperature: – 20℃~60℃
- Storage temperature: – 30℃~70℃
- Humidity: 0~90%RH (no condensation）
- Housing: Aluminium(Top cover); lron(Bottom cover)
- Weight: TX：240g，RX：243g
- Color: Black
- Dimensions: 109.6(L)x89.5(w)x26.3(H)mm*2pcs
- Protection
- ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
| HDD type | KVM |
|---|---|
| HDD Transmit Type | Over IP |
| HDD HDMI Loop | No |
| HDD Maximum Distance | 120m |
| HDD Maximum Resolution | 4K@60Hz |
| HDD RX Power Type | 5V PLUG |
| HDD Support IR | No |
| HDD Set-type | Set (Rx + Tx) |
| Manufacturer | Lenkeng |
