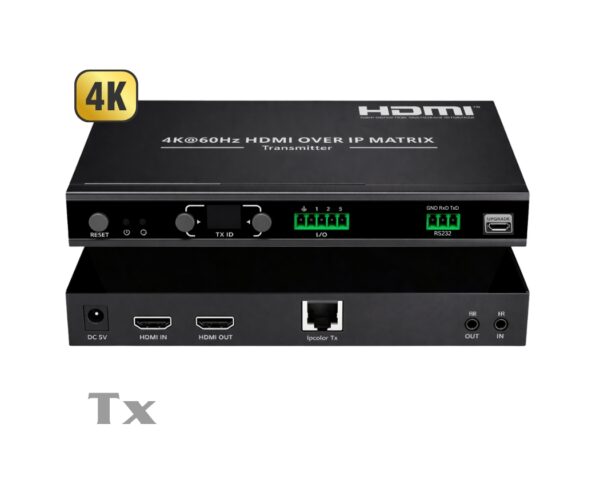

4K@60Hz HDMI over IP Matrix POE Transmitter IMMS-IM02-TX
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The iMMS-IM02 Transmitter is a professional-grade HDMI over IP solution designed for large-scale AV distribution systems. Supporting resolutions up to 4K@60Hz, it transmits HDMI signals over standard Cat5e/Cat6 network infrastructure up to 120m away. Ideal for digital signage, control rooms, video walls, retail displays, hospitality, education, and corporate environments, it supports PoE, HDMI loop out, RS-232 control, bi-directional IR, and flexible matrix configurations up to 256×256 endpoints.

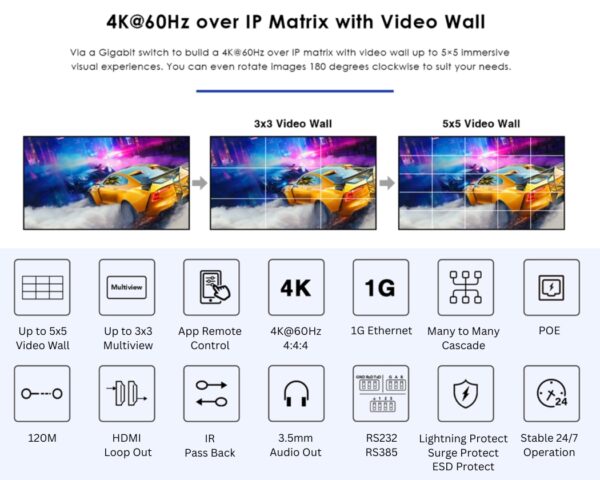

Technical Features

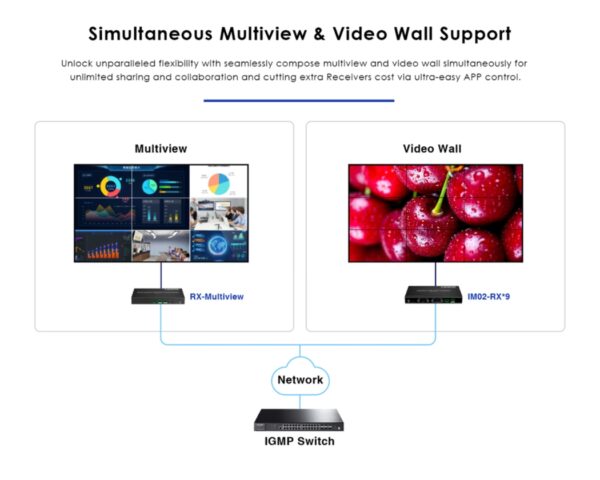

- Up to 5×5 Video Wall

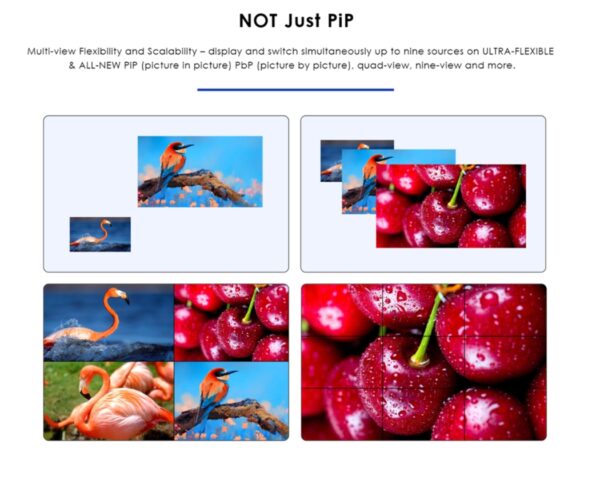

- Up to 3×3 Multiview

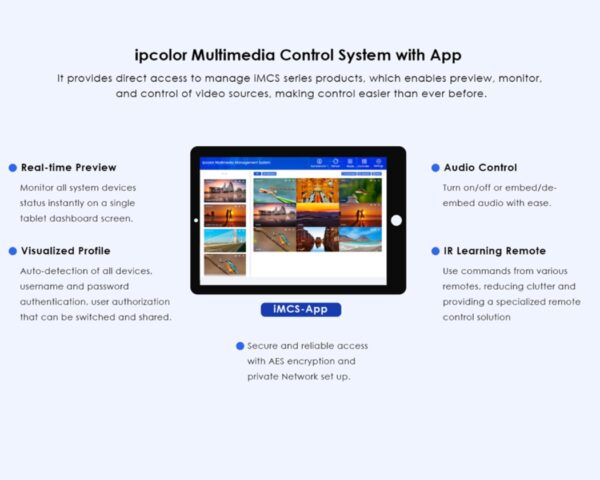

- App Remote Control
- 4K@60Hz 4:4:4
- 1G Ethernet
- Many to Many Cascade
- POE
- 120M
- HDMI Loop Out
- Bi-Directional IR Pass Back
- IR Learning Function
- RS-232/485 and I/O Control
- Lightning/Surge/ESD Protection
- Stable 24/7 Operation
Technical Details
- HDMI length : ≤ 5m
- Maximum transfer rate : 18Gbps
- Compatibility : HDMI 2.0, HDCP 1.4 / HDCP 2.2
- Resolutions : 4096×2160@24/30Hz, 3840×2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920×1200@60Hz, 2560×1440@60Hz

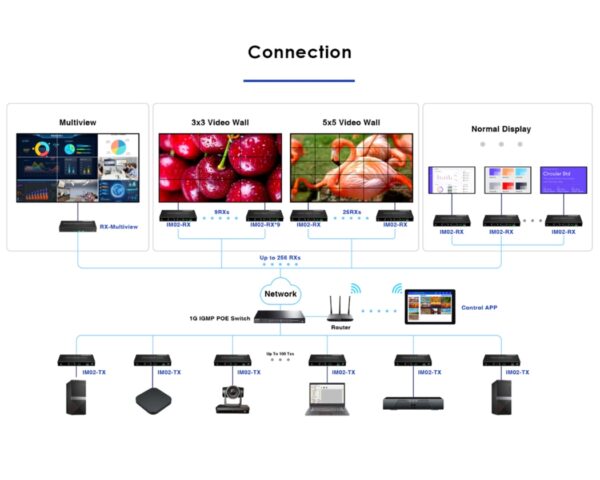

- Connection types
- One-to-one connection
- Many-to-many connection
- Switch cascading
- Transmission distance : CAT5 80m / CAT5E 100m / CAT6 120m
- Transmission latency
- 4K@60Hz: 130~200ms
- 1080P@60Hz: 70~130ms
- HDMI Loop Output : Supported
- HDMI audio : LPCM 2.0
- IR receiving range : ≤ 5m
- IR frequency : 20kHz~60kHz
- RS-232 (GND/RXD/TXD)
- Default baud rate: 115200
- Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
- I/O Control : Supported

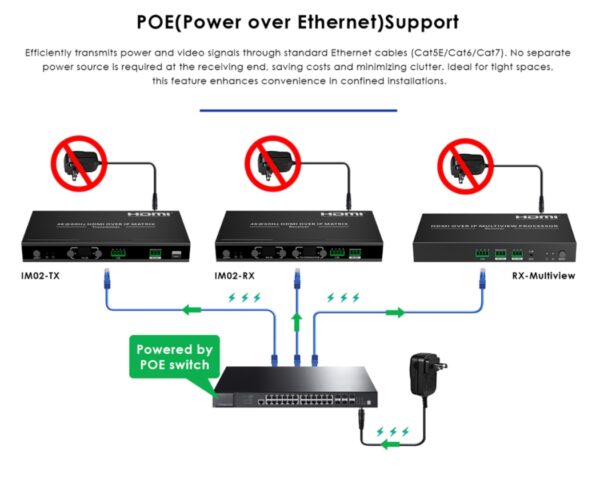

- Power Supply : DC 5V/2A (Alternative) or PoE (Power over Ethernet)
- Power Consumption : TX ≤ 5.5W
- Working temperature : -20℃~60℃
- Storage temperature : -30℃~70℃
- Humidity : 0~90%RH (no condensation)
- Housing : Iron
- Weight : 523g
- Color : Black
- Dimensions : 191.0(L) × 96.0(W) × 25.0(H)mm
- Protection
- ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
| HDD type | HDMI Matrix |
|---|---|
| HDD HDMI Loop | Yes |
| HDD Maximum Distance | 120m |
| HDD Maximum Resolution | 4K@60Hz |
| HDD RX Power Type | POE |
| HDD Support IR | Yes |
| Manufacturer | Lenkeng |
| HDD Set-type | Transmitter ( Tx ) |
| HDD Transmit Type | Over IP |
Specifications
Technical Specifications
| Specification | Details |
|---|---|
| HDMI Length | ≤ 5m |
| Maximum Transfer Rate | 18Gbps |
| Compatibility | HDMI 2.0, HDCP 1.4 / HDCP 2.2 |
| Resolutions | 4096×2160@24/30Hz, 3840×2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920×1200@60Hz, 2560×1440@60Hz |
| Connection Types | One-to-one, Many-to-many, Switch cascading |
| Transmission Distance | CAT5 80m / CAT5E 100m / CAT6 120m |
| Transmission Latency | 4K@60Hz: 130~200ms 1080P@60Hz: 70~130ms |
| HDMI Output | LPCM 2.0 |
| IR Receiving Range | ≤ 5m |
| IR Frequency | 20kHz~60kHz |
| RS-232 | GND / RXD / TXD Default: 115200 Supported: 2400–115200 |
| Power Supply | TX/RX: DC 5V/2A (alternative) / PoE |
| Power Consumption | TX ≤ 5.5W RX ≤ 3.5W |
| Working Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -30℃ ~ 70℃ |
| Humidity | 0~90% RH (no condensation) |
| Housing | Iron |
| Weight | TX: 523g / RX: 514g |
| Color | Black |
| Dimensions | 191.0(L) × 96.0(W) × 25.0(H) mm |
| Protection | ESD Protection (±4KV Contact / ±8KV Air) IEC61000-4-2 Lightning & Surge Protection |
