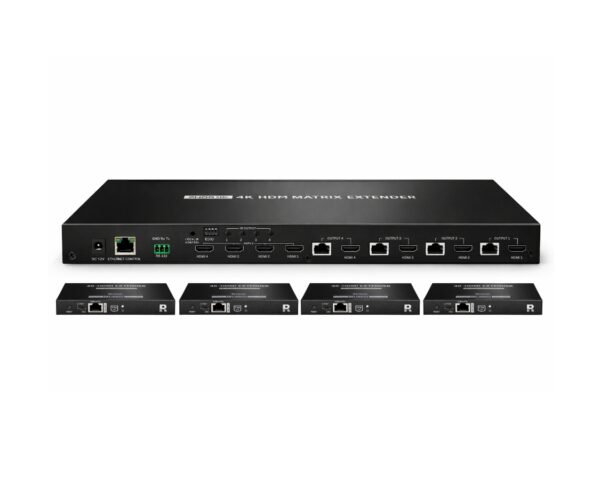

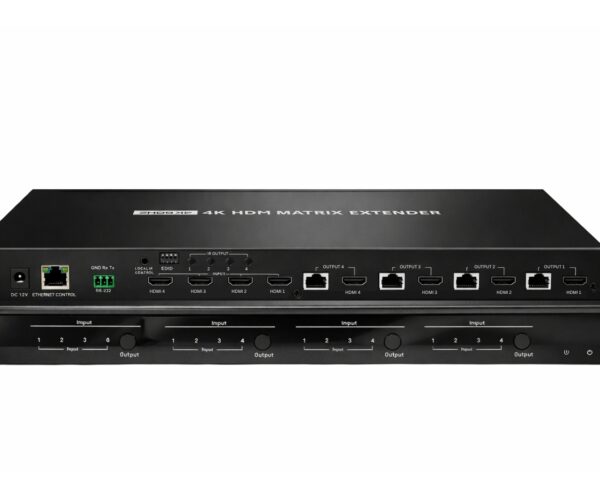

4X4 HDMI Matrix Extender 4K@60Hz 70M LKV844
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

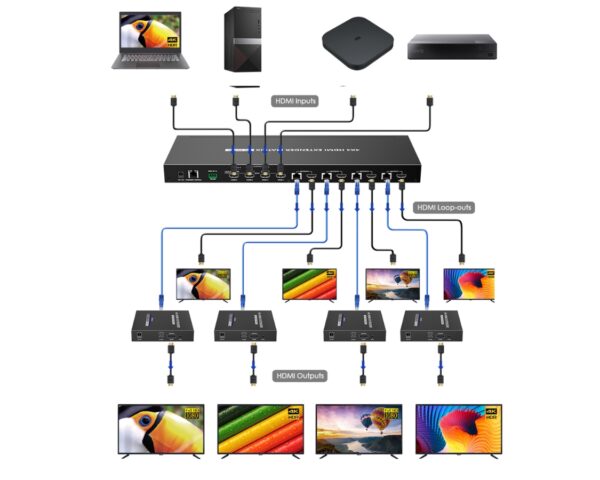

This product is a 4×4 HDMI™ matrix extender over network cable, with 4 HDMI™ inputs, 4 RJ45 outputs and 4 HDMI™ loop-out. 4 HDMI™ outputs send the high-definition audio/video signals to 4 UHD displays at the local site. At the same time, 4 RJ45 outputs transmit and extend the audio/video signals to 4 UHD displays 70 meters away via 4 receivers. RS-232 control, Ethernet control, button control and remote control make switching/setting the input and output easily. This product is perfect for security, school education, exhibition center multimedia conference, etc.
Key Features:
- IPColor Image
- Zero Latency
- 4K@60Hz HDR
- 70M
- 4 HDMI Inputs/4HDMI Outputs/4HDMI Loop-Outs
- IR Pass Back
- Auto Downscaling
- Ethernet Control
- Power Over Cable (PoC)
- Lightning/Surge/ESD Protection
Highlights:
- IPColor Image – A new Standard for Visually Lossless Transmitter Solution
- 4K@60Hz HDR Transmission for 70M
- 4HDMI Inputs – 4 HDMI Outputs ( Extend 4 ways of HDMI Signal to 4 Displays plus additional loop outs for local location
- 4 Output Ports Auto Downscaling

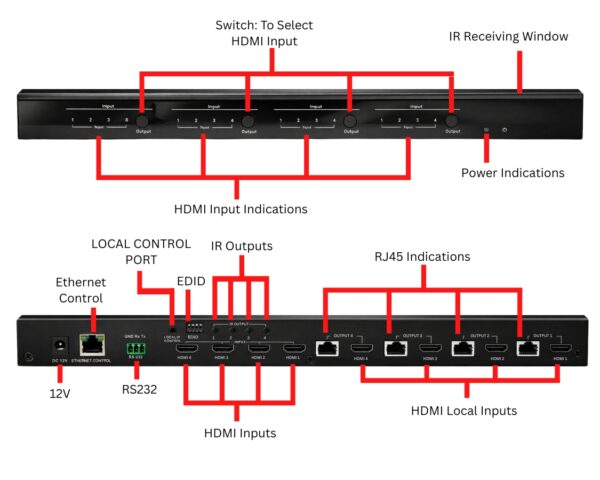

- Various Control Methods ( Button, Remote Control,RS-232,Ethernet)
Technical Details
- HDMI version: HDMI 2.0
- HDCP version: HDCP 2.2, HDCP 1.4
- Transmission media: Cat6/Cat6A/Cat7
- Transmission distance: ≤70m
- Video bandwidth: 600MHz (18Gbps)
- Resolution supported: 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1080i@50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz, 3440×1440, 2560×1440, 2560×1080, 2048×1080, 1920×1440, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
- HDR10: Yes
- HDMI loop-out: TX：Yes
- IR passback: Unidirectional
- S/PDIF audio separation: RX：Yes
- EDID DIP switch: TX：Yes
- Audio format supported: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
- Input TMDS signal: 0.5~1.2Vp-p
- Input DDC Signal: 5Vp-p
- RS-232 control: Yes
- Ethernet control: Yes
- Remote control: Yes
- Power over cable (PoC): TX to RX
- HDMI interface: Type-A 19 Pins, Female
- Case material: Iron
- Dimensions: TX: 411.0(L)×147.0(W)×29.0(H) mm, RX: 105.5(L)×02.5(W)×20(H) mm
- Weight: TX :1530g， RX: 243g
- Color: Black
- Power supply: DC12V/3A
- Consumption: TX+RX≤30W
- Working temperature: -20~60℃
- Storage temperature: -30~70℃
- Humidity (no condensation): 0～90%RH (no condensation)
- Protection
- ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
| HDD HDMI Loop | Yes |
|---|---|
| HDD Maximum Distance | 70m |
| HDD Maximum Resolution | 4K@60Hz |
| HDD RX Power Type | POC |
| HDD Support IR | Yes |
| HDD type | HDMI Extender, HDMI Matrix |
| HDD Set-type | Set (Rx + Tx) |
| HDD Transmit Type | Point to Point ( Network Cable ) |
| Manufacturer | Lenkeng |
