Televes 593501 H30EVOLUTION DVB-S/S2 + DVB-T

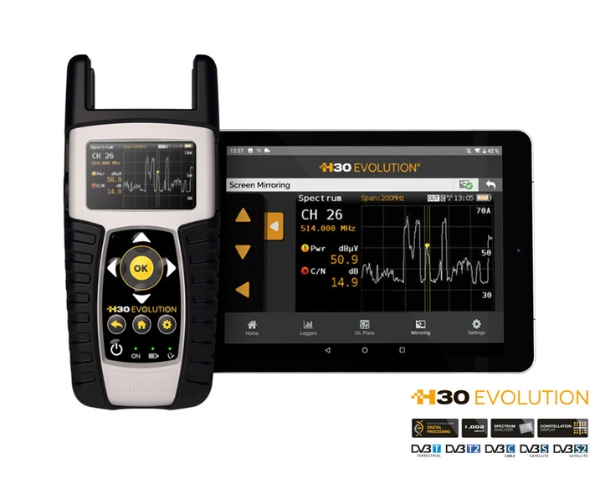

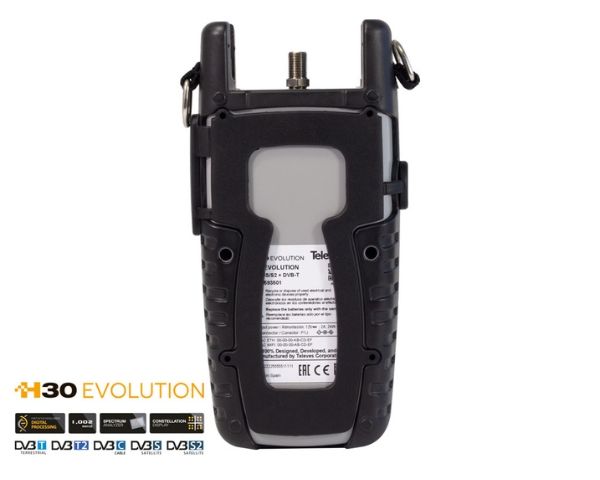

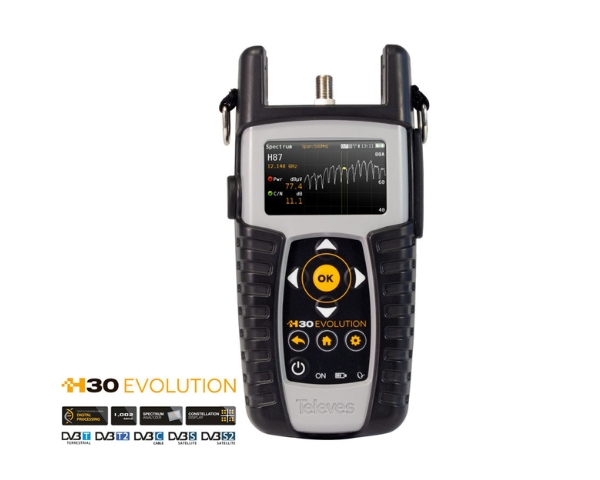

Televes 593501 H30Evolution is a professional analyzer that combines the best features of a portable and compact equipment with revolutionary functionalities.

The extra optional features include IPTV (option 593251), HEVC (option 593252), WiFi analyser (option 593250). The on-board functions offer Multiscreen and remote control (Control with Android/iOS or PC), Wi-Fi and Bluetooth connectivity (Wireless access to the meter) via smartphone (universal bracelet provided for devices up to 6″) and Wideband LNB compatible (250 to 2300 MHz). H30Evolution is a lightweight, compact and robust equipment that includes a full range of tools and functionalities to successfully perform installation, maintenance and troubleshooting tasks in analogue and digital networks with DVB-S/S2, DVB-T (Τ2 upgradable) channels.

The options are installed with license-based downloadable software. The 593501 H30Evolution embedds digital processing technology, to provide the user with speed and mathematical accuracy equivalent to that of laboratory equipment.

Technical features:
– Multiscreen and remote control (Controllable from Android/iOS or PC)
– Wi-Fi and Bluetooth connectivity (Wireless access)
– Wideband LNB compatible (From 250 to 2300 MHz)

Frequency:
– Range: 50-880MHz/ 950-2200MHz
– Resolution: 125 kHz
– Tuning: Frequency or channel

Spectrum Analyzer:
– Span: 5, 10, 20, 50, 100, 200, 500 MHz and Full
– Scale: 5 and 10 dB/div
– Auto and manual reference level: Yes
– Hold mode: Yes, peaks

DVB-S Measurements:
– MPEG image: Yes
– Power: 45-110 dBuV (25-120dBuV opt.593235)
– CBER: 9.9E-2 – 1.0E-6
– VBER: 1.0E-4 – 1.0E-8
– MER: Up to 20 dB
– C/N: Up to 20 dB Automatic
– Constellation: Yes

DVB-S2 Measurements:
– MPEG image: Yes.
– Modulations: QPSK, 8PSK
– Power: 45-110 dBuV (25-120dBuV opt.593235)
– Link Margin: Up to 10 dB
– MER: Up to 20dB
– LDPCBER: 9.9E-2 – 1.0E-6
– BCHBER: 9.9E-2 – 1.0E-8
– Constellation: Yes

DVB-T Measurements:
– MPEG image: Yes.
– Modulations: CFDM (QPSK, 16QAM, 64QAM)
– Power: 45 – 110 dBuV (25-120dBuV opt.593235)
– CBER: 9.9E-2 – 1.0E-6
– VBER: 1.0E-3 – 1.0E-8
– MER: Up to 35 dB
– C/N: Up to 40dB
– Echoes: Yes
– Constellation: Yes

Analog Measurements:
– Level measurement: 25 – 125dBuV
– V/A: Yes
– C/N: up to 45 dB

Channel Plans:
– Factory SAT channel plans: 68E INTEL C, 68E INTEL, 42E TURK, 39E HELLAS, 33E EUTEL, 28E EUTEL, 28E ASTRA, 26E BADR, 25E EUTEL, 23E ASTRA, 21E EUTEL, 19E ASTRA, 16E EUTEL, 13E HOTB, 10E EUTEL C, 10 EUTEL, 9E EUTEL, 7E EUTEL, 4E ASTRA, 1W THOR5, 1W THOR6, 5W EUTELC, 5W EUTEL, 7W NILE, 30W HISPA, 48W AMZC, 48W AMAZ, SIM.
– Factory TERR channel plans: CCIR, CCIR + LTE, OIRT, KBW, FCC, DAB, SIM.
– Custom channel plans (learning): Yes

Configuration:
– Units: dBuV, dBmV, dBm
– LNB: 13, 18Vdc (max. current 475, 370mA)
– LNB Tone: 22 Khz
– DiSEqC: Yes
– SCR (EN50494): Yes, dCSS (EN 50607): Yes (with Option 593234)
– Wi-Fi Analyser: Yes (Opt. 593250)
– Video Camera: Yes

Features:
– Screen: 2.8 TFT 400 x 240 full color
– Channel Info: Yes
– System Scan: Yes
– Learning Plan: Yes
– Constellation: Yes
– MPEG: Yes
– Firmware Update detection: Automatic, when connected to the internet

Communication:

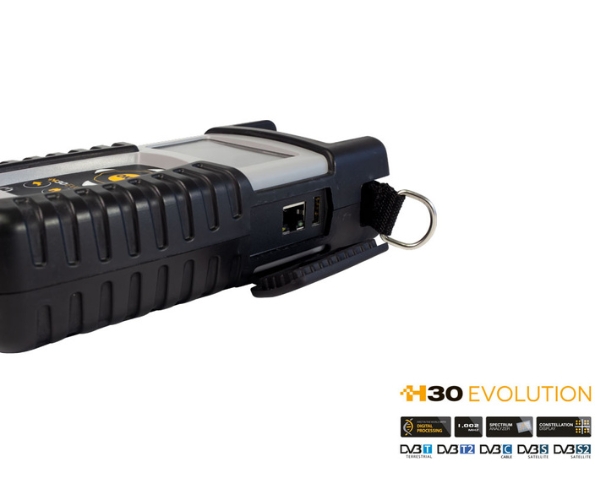

– Interfaces: Bluetooth, Wi-Fi 2.4GHz (5GHz upgrade 593250), Ethernet 1Gb, USB 2.0 for Data log download and software upgrades.
– Storage 400 MB (internal) for measurements
– Power up time < 10 seconds

General:
– Ruggedness: Survives 1 m (3 ft) drop to concrete on all sides
– Dimensions 6.9 x 3.9 x 2 in / 175 x 100 x 52 mm (H x W x D)
– AC Adaptor Input: 100-240V~ 50-60Hz, Output: 12VDC, 2A,
– LiIon smart battery (7.2VDC, 2300mAh), – Operation: More than 4 hours without LNB powering.
– Operating Temperature 23F to 104F (-5C to 45C), – Storage Temperature -4F to 158F (-20C to 70C)
– Humidity 5% to 95% non-condensing

(Specifications are subject to change without notice)
