TDR Cable Tracer Tester with PoE / Ping NF-8601S
- Port : RJ45, RJ11, BNC
- Test length : RJ11,RJ45 ,BNC
- Tracking Type : RJ45, RJ11, BNC , and Metal Cable
- Other Function : PING & PoE & Portflash function
- Power : 3.7V Lithium battery
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

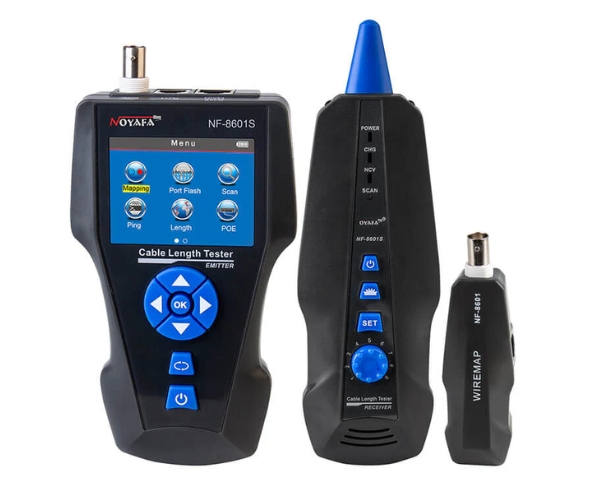

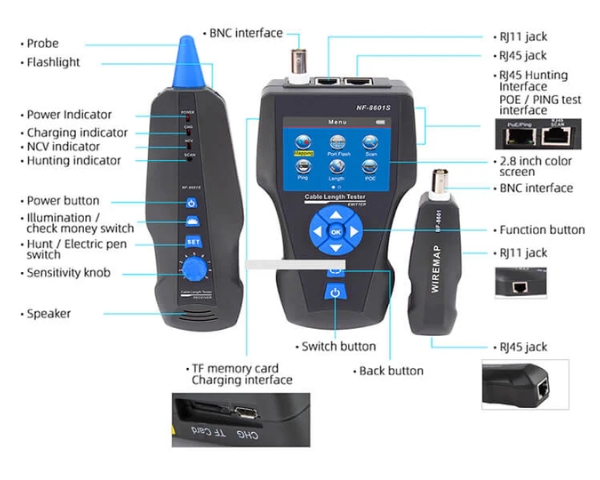

Noyafa NF-8601 cable tester. Locate faults for RJ45/RJ11/BNC Cable with PING/POE function
Technical Features
- CAT5/6/7 tester
- Continuity testing for Coaxial cables, RJ45 network cables, and RJ11 telephone cables. Display wiring fault names directly like Open Circuit, Short Circuit, etc.
- TDR test
- With TDR technology, 500m max (1640ft) length measurement for RJ11, RJ45, Coaxial, and power cables (only 2% error!). When faults exist, the NF-8601S TDR meter displays the distance to the fault.
- Ethernet cable tester
- Identify the power over ethernet cables and detect the exact voltage. It tells the pins delivering DC powers and data.
Network toner: Toner probe with complete AC interference rejection to trace ethernet cables. Three modes are available for fast and accurate cable tracing: high frequency / PoE switch / low frequency.
- Identify the power over ethernet cables and detect the exact voltage. It tells the pins delivering DC powers and data.
- Port blinking
- Easy and quick locating ethernet ports on the server/switch/hub/router port by the generated flashing light. It is convenient for identifying a cable connected to the switch.
- Ping test
- Network performance check and quality measurements. Examine the data packet and the minimum & maximum time to send and receive data.
- Non-Contact Voltage Tester
- Toner probe with NCV detector (90-1000V). One tap to tell if electricity runs through an object without touching it.
- Extra accessories
- 3.7V 1800mAh rechargeable lithium battery, 1GB TF card for data storage and export, adapters, and clamps to improve compatibility.
Technical Details
- Tracing Cables: RJ45 (CAT7 included), RJ11, BNC, Power Cable
- Measure Cable Length: RJ45(CAT7 included), RJ11, BNC, Power Cable
- Check Cable Error: RJ45(CAT7 included), RJ11, BNC, Power Cable
- Max. Cable Length: 500m (1640ft)
- Power Supply: Li-battery
- Display Screen: Color
- Length Measure Theory: TDR
- Anti-current INterference: Yes
- Data exported to PC: Yes
- Port Flash: Yes
- Scan on PoE Switch: Yes
- High / Low Freq. Scan Mode; Yes
- PoE Detecting: Yes
- Ping Function: Yes
- AC Voltage Detecting: Yes
- Length Measurement Range: 5m-500m (18ft-1640ft)
- Calibration Precision: 2%(+/-0.5m, or +/-1.5feet)
- Measurement Precision: 3%(+/-0.5m, or +/-1.5feet)
- Remote Units: 1pc
| Manufacturer | Noyafa |
|---|
