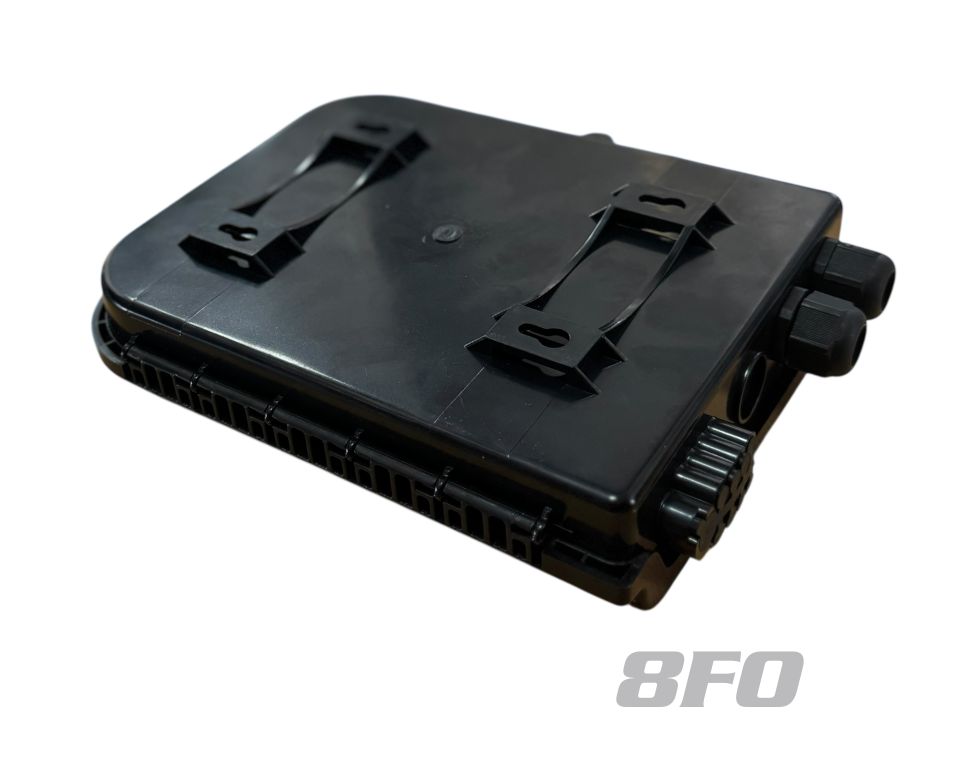

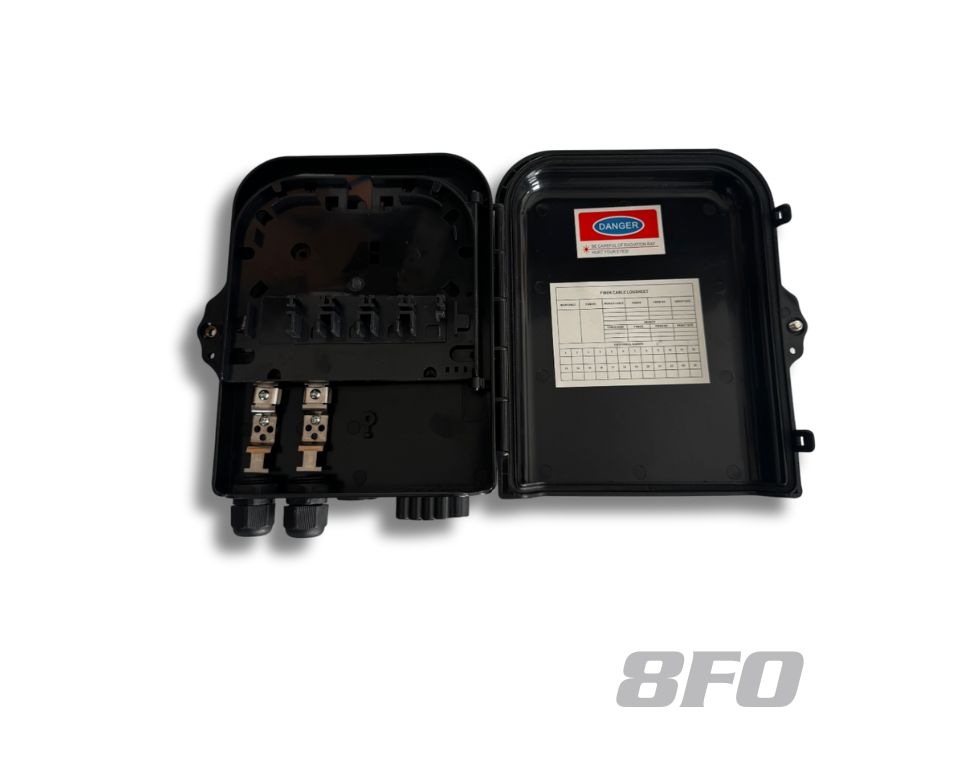

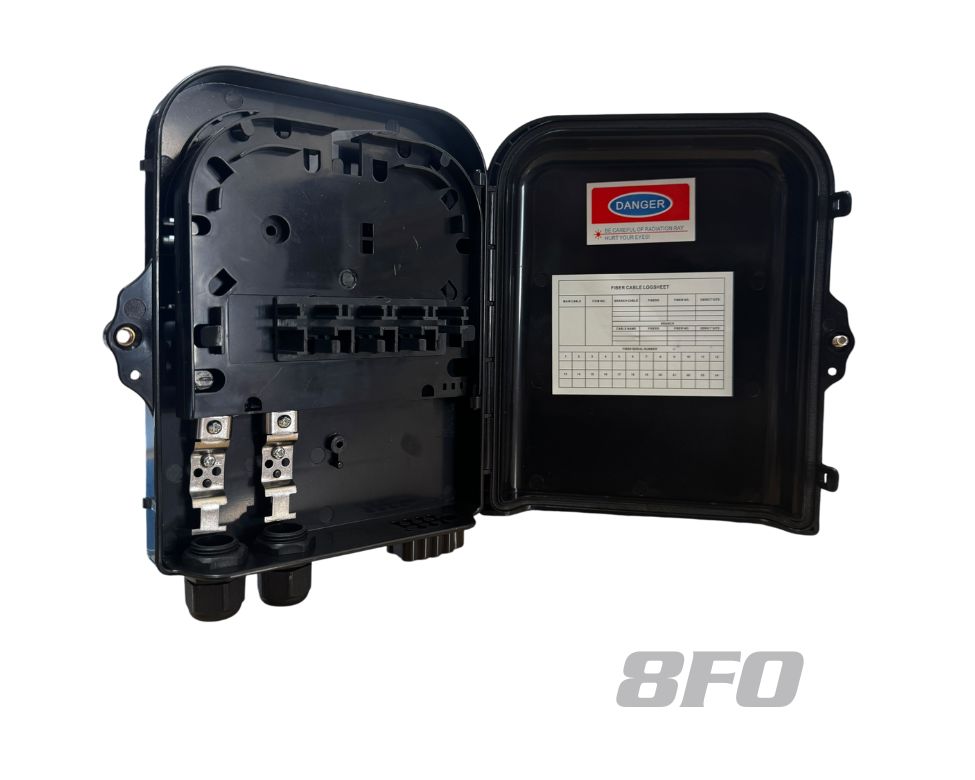

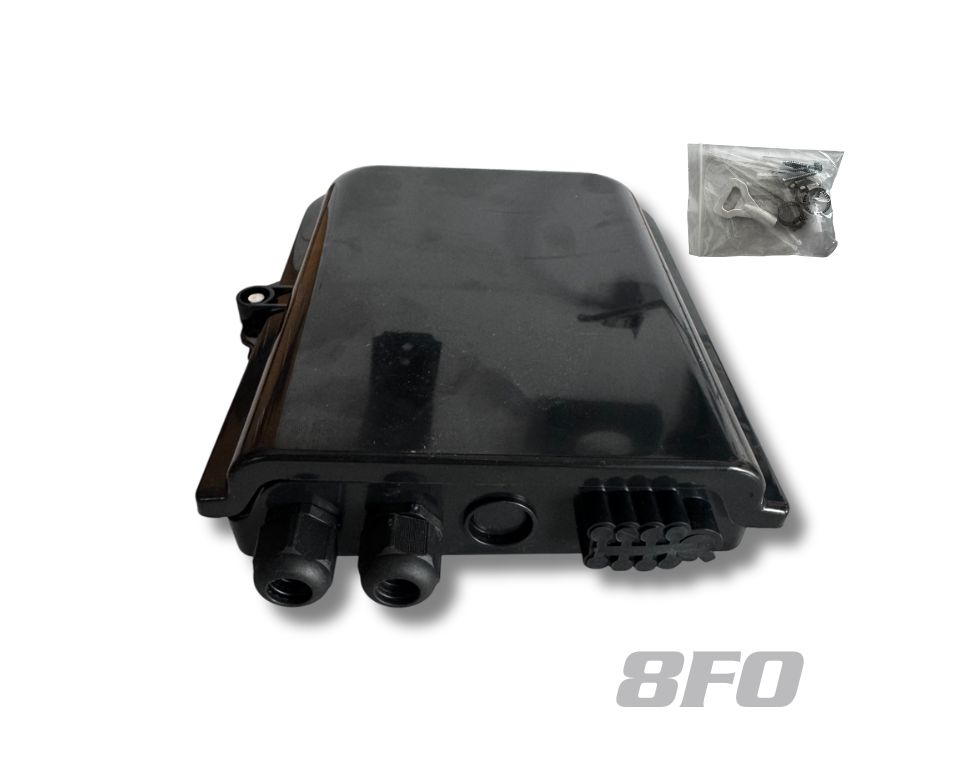

8 FO Fiber Optic Termination Box Black RS460810
Model: RS460810
Factory Name: FDB-8B
Color: Black
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Description
- The equipment is used as a termination point for the feeder cable to connect with drop cable inFTTX communication network system. The fiber splicing. splitting, distribution can be done in this box and meanwhile it provides solid protection and management for the FTTX network building
Features
- Total enclosed structure.
- Material: ABS、 wet-proof、 water-proof、dust proof、anti- aging, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution … etc all in one.
- Cable, pigtails, patch cord:s are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Cabinet can be installed lby the way of wall-mounted or poled- mounted,suitable for both indoor and outdoor uses.
Applications
- Wall mounting
- FTTH pre-installation and filed installation
- 5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
- Key
- heat shrink tubing
- setscrew
- screw
- plastic strapping
| Material | Size | Max Capacity | PLC Splitter | Nos of Adaptor | Weight | Color |
|---|---|---|---|---|---|---|
| Strengthen ABS | 220*180*55 mm | Splice 8 Fibers | 1pcs of 1×8 | 8pcs of SC (max) | 0.62 kg | Black |
