CAT7 STP RJ45 Tool Less Connector Termination RS8702
Easy to install without any tools!
Model number: C158RS7P
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

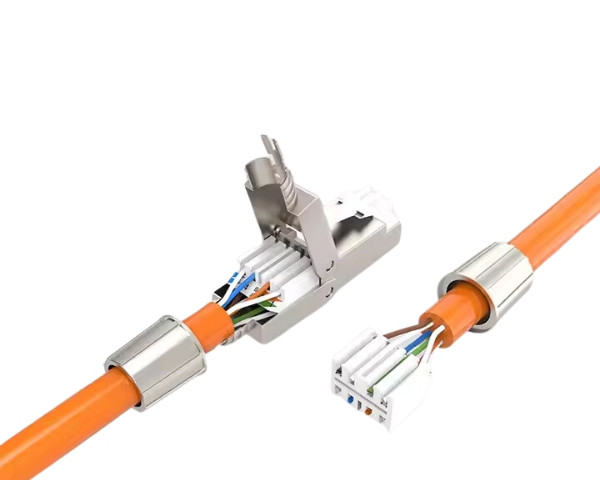

The RS8702 CAT7 STP Shielded RJ45 Field Termination Connector is a professional tool-free network connector designed for fast and reliable on-site cable termination. Supporting CAT7 and CAT6A installations, it enables 10 Gigabit Ethernet transmission up to 500 MHz while providing excellent shielding against electromagnetic interference. Featuring a convenient toolless IDC design, gold-plated contacts, and compatibility with PoE++, this connector is ideal for data centers, structured cabling, CCTV, industrial networks, and high-performance Ethernet installations.
Technical Details
- Model: RS8702
- Brand: RS
- Connector Type: RJ45 Male (8P8C)
- Field Termination Connector
- Tool-Free IDC Installation
- Cable Compatibility: CAT7 Network Cable, CAT6A Compatible
- Solid Conductors: AWG 22/1 – 26/1
- Stranded Conductors: AWG 22/7 – 24/7
- Cable Diameter: 5.0 – 8.5 mm
- Conductor Insulation Diameter: 1.0 – 1.5 mm
- Shielding: STP Shielded Design, Enhanced EMI & RFI Protection
- Gold-Plated Contacts (3μm)
- 8-Pin Configuration

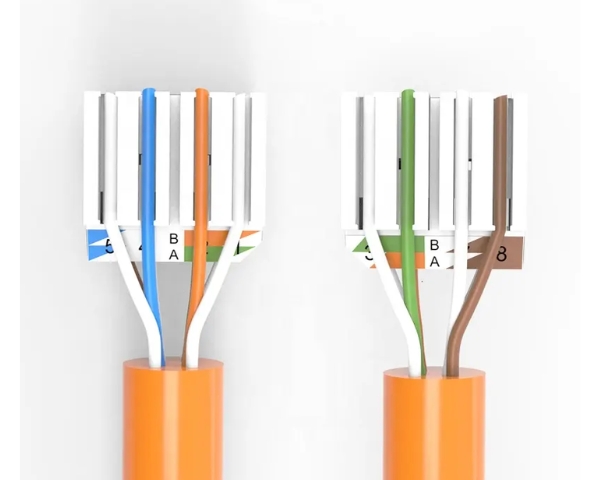

- TIA-568A/B Colour Coding
- Bandwidth: Up to 500 MHz
- Supports 10GBase-T Ethernet
- PoE++, 4PPoE & Ultra PoE Compatible
- IEEE 802.3bt Support
- Features: Tool-Free IDC Termination, Quick Fold-and-Lock Installation, Integrated Strain Relief Cap, 180° Cable Entry, Suitable for Field Assembly
- Dimensions: Length: 49.7 mm, Width: 14.4 mm
- Package Contents: 1 × CAT7 STP RJ45 Field Termination Connector
| Manufacturer | RS |
|---|---|
| LAN Category | cat7 |
