COMBINER TV-SAT DC PASS CTS-1 EDISION
Package includes:
- -Combiner TV-SAT CTS-1
- Mounting screws
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

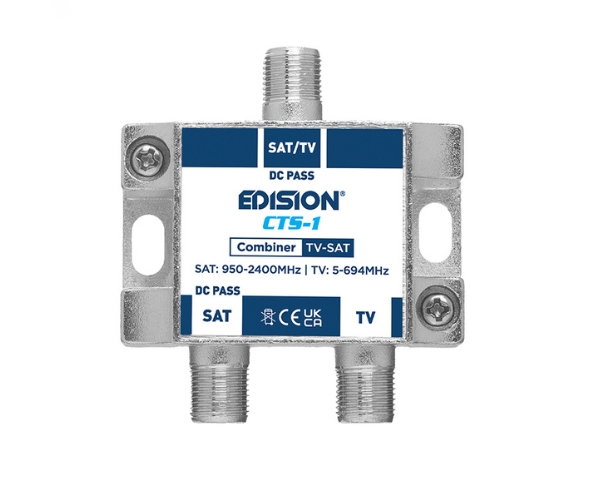

EDISION COMBINER TV-SAT DC PASS 5G 21-48 CTS-1, is a Combiner and Diplexer TV & SAT (works bidirectionally), with DC PASS (SAT) and 5G interference cutoff. Its construction features F-female type plugs and nickel plated high quality zinc diecast casing. It is designed and manufactured with high standards, providing low through loss, high isolation and can be used in all TV antenna installations, when the coaxial cabling needs Combining or Diplexing (works bidirectionally). Plus, with its DC-pass in SAT port, it facilitates the technician in satellite TV installations. It can also be used behind a TV point/TV set, for separating Digital Terrestrial TV signal and Satellite TV signal.
Technical features:
- COMBINER and DIPLEXER TV & SAT with DC PASS (SAT) and 5G interference cutoff
- Frequency Range SAT: 950-2400 MHz , 75 Ohm
- Frequency Range TV: 5-694 MHz, 75 Ohm
- Channels TV: 21 to 48 UHF
- 5G LTE Protection
- As COMBINER, Inputs: 2 (1SAT+1TV), Outputs: 1 (SAT+TV mixed)
- As DIPLEXER, Inputs: 1 (SAT+TV mixed), Outputs: 2 (1SAT+1TV)
- Nickel plated high quality zinc diecast casing
- Through loss TERR.: 2.5 dB
- Through loss SAT.: 2.5 dB
- DC Pass: SAT port, 12vdc/24vdc, up to 500mA maximum
- Grounding ports
- Dimensions (W x H x D): 52x58x22 mm
- Packing: High Quality colored giftbox with hanging port
Insertion loss (TV-SAT) maximum:
- 5-694 MHz: 2.5 dB
- 950-2400 MHz: 2.5 dB
Isolation (TV/SAT) minimum:
- 5-694 MHz: 20 dB
- 950-2400 MHz: 20 dB
| Manufacturer | EDISION |
|---|
