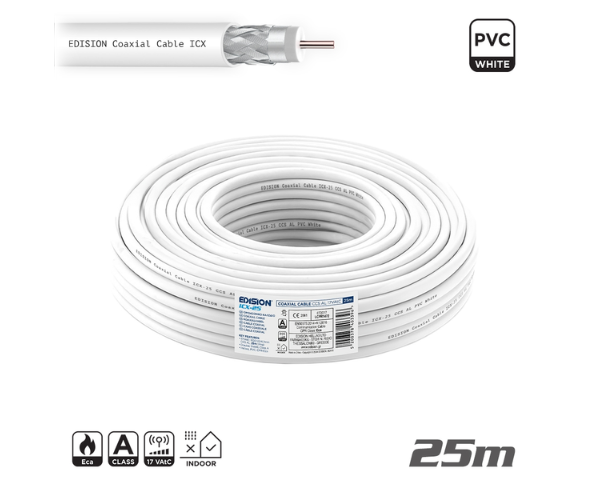

EDISION COAXIAL Cable ICX-25 CCS AL Eca PVC White 25m. TV Antenna cable, in a 25-meter coil, for distributing Digital Terrestrial, Cable and Satellite TV signals, indoors.
Ideal for extending a TV antenna cable, for adding a section or replacing a worn one, but also for a brand new installation with a cable length of up to 25m. between antenna and TV. Also suitable for CCTV camera signal. Compatible with all TV and F plugs 7 mm.
Technical features:
- Type: Coaxial Cable RG-6, double shielded, 17VAtC indoor ICX-25
- Suitable for Terrestrial, Cable TV, Satellite reception and CCTV installations
- Class A
- CPR Class: Eca
- Standards: EN 55075
- Inner Conductor: Diameter 1,00 ± 0,02 mm / Material: Copper Clad Steel (CCS)
- Foam Dielectric: Diameter 4,7 mm / Material: Polyethylene foam (FPE)
- Foil: Aluminum (AL) with coverage 100%
- Braid: Aluminum mesh (AL) 16x8x0,12 mm with coverage 77%
- Jacket: Diameter 6,6mm ± 0.10 mm / Material: PVC White
- Impedance: 75 Ohm
- Minimum Bending Radius: 35mm
- Shielding: >85 dB (typ.130dB)
- Return Losses 5-862 MHz: >20 dB / 862-2150 MHz: >18 dB
Attenuation dB per 1 meter:
- 5 MHz / 0,03 dB
- 30 MHz / 0,04 dB
- 50 MHz / 0,05 dB
- 200 MHz / 0,08 dB
- 400 MHz / 0,12 dB
- 500 MHz / 0,13 dB
- 800 MHz / 0,17 dB
- 860 MHz / 0,18 dB
- 1000 MHz / 0,19 dB
- 1350 MHz / 0,22 dB
- 1750 MHz / 0,26 dB
- 2050 MHz / 0,28 dB
- 2150 MHz / 0,29 dB
General
- Environmental Operating Temperature: -30°C … +70°C
- Application: Indoor
- Length: 25m (marked per 1 meter)
- Weight: 1,03 kg
- Color: White
- Packing: Ring 25m
- Packing Quantity: 20 pcs x 25m
| Weight | 1 kg |
|---|---|
| Manufacturer | EDISION |
| Length | 25.00m |
