EDISION MAST AMP. KIT MAK-100 5G 1UHF +PSU 24V
Package includes:
- Mast Amplifier AMP-10
- Installation outdoor box
- Mast Amplifier Power Supply PSU-2402
- Tie-wrap
- Plastic screwdriver for adjustments
- 2 sets of upat and mounting screws
- Manual GR/EN/DE/ES/IT/FR
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

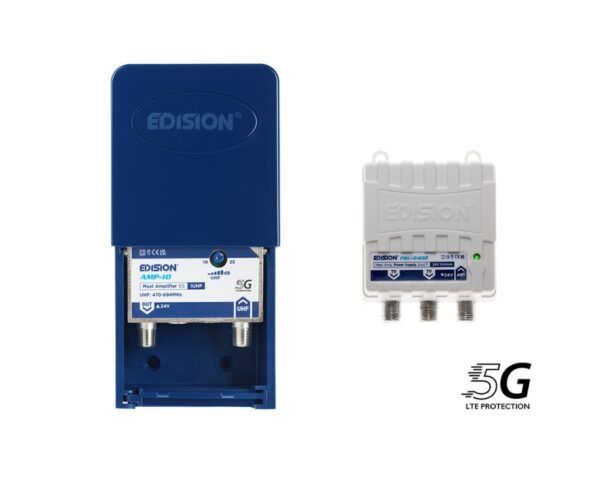

The EDISION MAST AMPLIFIER KIT MAK-100 5G 1UHF +PSU 24V, is a SET of a mast-type amplifier and its power supply unit, both compatible for Digital Terrestrial TV antenna installations and consists of:
EDISION AMP-10 MAST AMPLIFIER 5G 1UHF 10-25db 24V
A Mast-type amplifier for Digital Terrestrial channels, with 1 signal input with its own gain control switch, for the appropriate selection by the technician. It provides the option of connecting 1 UHF antenna and it has a 5G LTE interference cut-off filter. Its circuit is contained in a fully metal shell, for protection against electromagnetic interference. This unit is inside a box made of synthetic material, in free tilt, for easy access to the wiring connections. It can also be removed to facilitate the technician but also to guarantee the best possible installation and connection, with quality performance in time.
EDISION PSU-2402 MAST AMPLIFIER POWER SUPPLY 2out F 24V

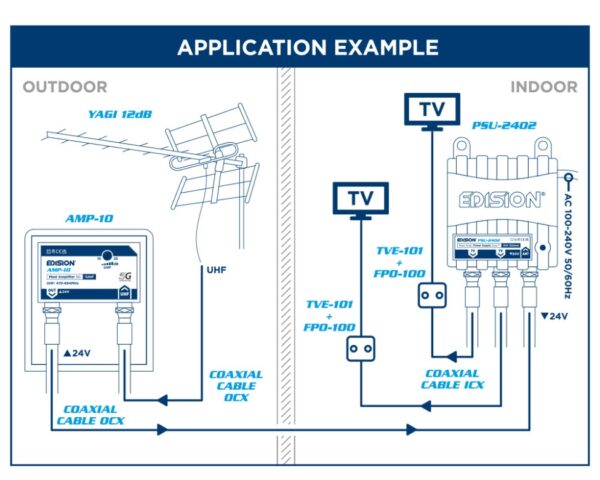

A power supply unit for mast amplifiers that operate with 24Vdc through coaxial cable. It provides 2 outputs with F-type plugs for connection to the coaxial distribution to TVs, while it powers the mast amplifier with current 24Vdc 200mA. The power supply unit, in white color, comes in extra compact dimensions and it can be installed easily and discreetly, at a point selected by the technician. It features LED indication for correct operation and inside the package it has installation materials, for ease of application.
Technical features AMP-10:
- Mast Amplifier for Digital Terrestrial TV channels, with 5G LTE interference cutoff
- For OUTDOOR or INDOOR installation
- Installation options: pole/mast or wall mounting
- Frequency Range UHF: 470-694 Mhz
- Protection from 5G LTE interference: YES
- 5G LTE interference rejection: <20dB
- Input ports: 1 UHF
- Output ports: 1 for connection to compatible Mast Amplifier PSU (e.g. EDISION PSU-2402)
- Maximum Output Level: 107 dbμV
- Individual trimmer switch, for adjusting the gain of each input
- Adjustable gain UHF: 10 up to 25 dB
- Noise Figure: 4 dB
- Impedance: 75 Ohm
- Connections: Type-F plugs, female
- Powering: 24V DC
- Consumption: 60 mA
- Dimensions with Installation box (W x H x D): 78x85x42 mm
- Weight: 0,12 kg
- Installation box color: Blue
- Packing: High Quality colored giftbox with hanging port
- Warranty: 2 years
Technical features PSU-2402:
- Power supply unit for mast amplifiers that operate with 24Vdc through coaxial cable
- For INDOOR use only
- Installation on horizontal or vertical surface, by using the 2 installation points
- Frequency Range: 5-862 Mhz
- Input: AC 100-240V 50/60Hz with 2ΡΙΝ EU plug
- Output: DC 24V 200mA
- Connections: Type-F plugs, female
- Input ports RF: 1 ANT for connection to the output of the mast amplifier, provides 24Vdc.
- Outputs ports RF: 2 TV
- Through loss: 4.5 dB
- Operating Temperature: 0°C … +50°C
- Storage Temperature: -20°C … +70°C
- Humidity Range: 10% … 85% RH, non-condensing
- Dimensions (W x H x D): 57x80x33 mm
- Weight: 0,14 kg
- Color: white
- Packing: High Quality colored giftbox with hanging port
- Warranty: 2 years
| Manufacturer | EDISION |
|---|---|
| Project Scenario | Mast Kit |
| Frequency Range | 47-694 |
