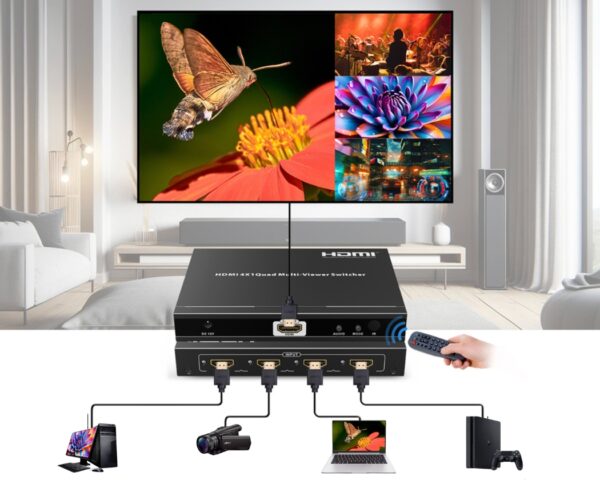

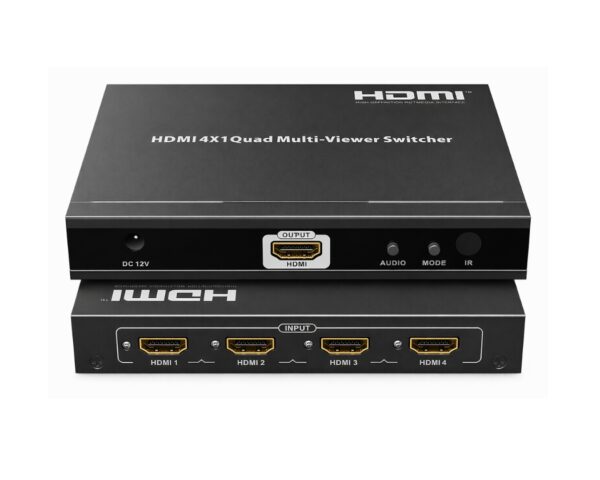

The HDMI 4×1 Quad Multi-Viewer Switcher connects up to four HDMI sources to one display and supports quad, dual, and full-screen viewing modes. With resolution up to 1920×1200@60Hz, remote and front-panel control, durable metal housing, wall-mount design, plug-and-play setup, and reliable 24/7 operation.

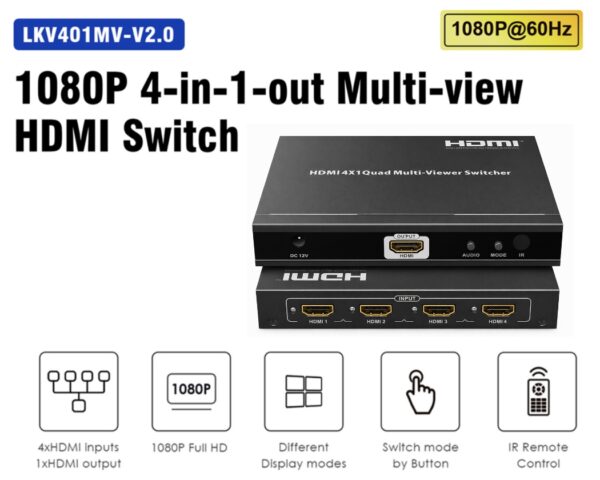

Technical Features:
- 4 × HDMI Inputs, 1 × HDMI Output
- 1080P Full HD Support
- Multiple Display Modes
- Switch Modes via Front Panel Button
- IR Remote Control Support
Highlights:

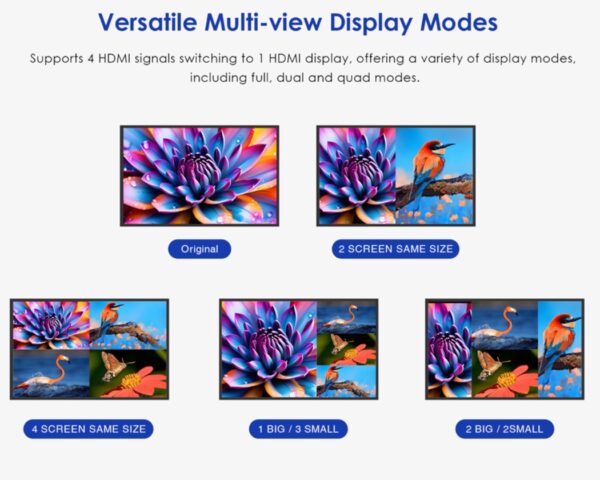

- Versatile Multi-view Display Modes – Supports 4 HDMI inputs to 1 HDMI display, offering multiple viewing layouts including full screen, dual screen, and quad screen modes for flexible video monitoring and switching.
- 1080P HD Display Resolution – Compatible with HDMI 1.3 and HDCP 1.4 for stable Full HD video transmission.

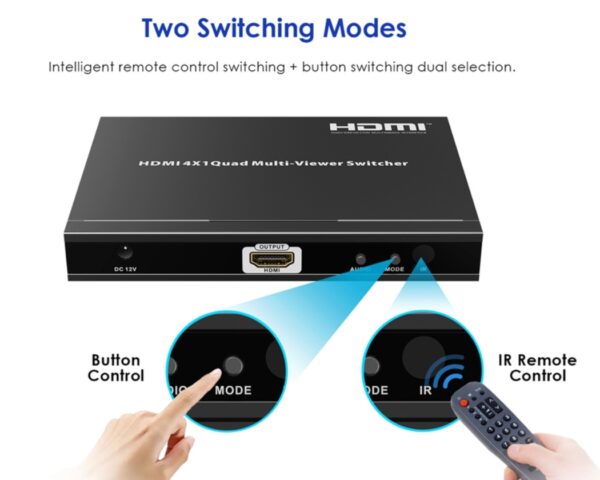

- Two Switching Modes – Supports IR remote control switching and front panel button switching for flexible and convenient operation.
Technical Details
- Input interface: 4x HDMI
- Output interface: 1x HDMI
- HDMI length: ≤ 5m
- Compatibility: HDMI1.3，HDCP1.4
- Audio support: LPCM 2.0
- Support mode: Support quad mode, full screen mode and dual mode
- Support Resolutions
- Input: 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 1920×1200@60Hz, 1680×1050@60Hz, 1600×1200@60Hz, 1600×900@60Hz, 1440×900@60Hz, 1400×1050@60Hz, 1366×768@60Hz, 1360×768@60Hz, 1280×1024@60Hz, 1280×960@60Hz, 1280×800@60Hz, 1280×768@60Hz, 1024×768@60Hz, 800×600@60Hz, 576P@50Hz, 480P@60Hz, 640×480@60Hz
- Support Resolutions
- Output: 720P@60Hz, 1080P@60Hz
- Control mode: IR/Button
- Power Supply: DC12V/1A
- Power Consumption: < 7W
- Working Temperature: – 20℃~60℃
- Storage Temperature: – 30℃~70℃
- Humidity: 0~90%RH (no condensation）
- Housing: lron
- Weight: 340g
- Color: Black
- Dimensions: 178.50×104.74×21.20mm
- Protection
- ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
| HDD type | HDMI Multiviewer |
|---|---|
| HDD Maximum Resolution | 1080p@60Hz |
| HDD Support IR | No |
| HDD Set-type | Transmitter ( Tx ) |
| HDD Transmit Type | HDMI Cable Direct |
| Manufacturer | Lenkeng |
