HDMI Extender 90M 4K@60Hz LKV-676A
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

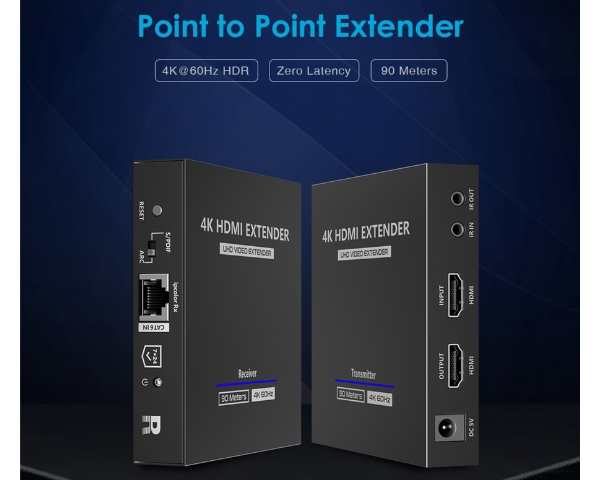

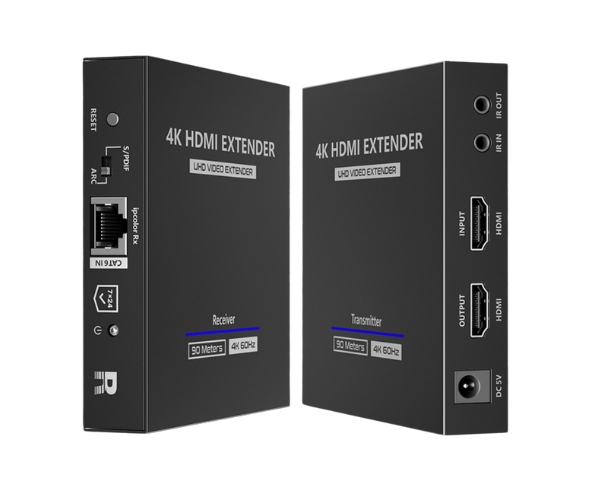

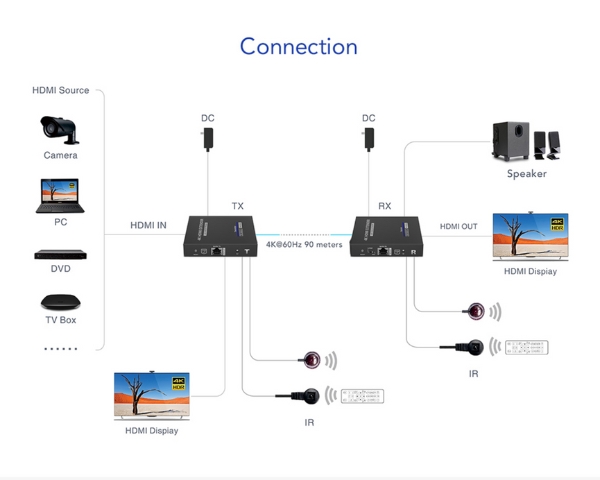

This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI™ signal to be transmitted up to 90 meters at 4K resolution using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc.

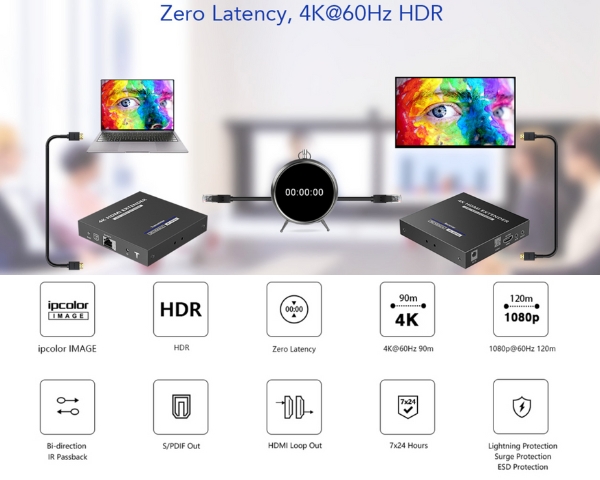

Technical Features
- Ipcolor IMAGE™ Technology
- HDR (High Dynamic Range) Support
- Zero Latency Transmission
- 4K@60Hz Transmission up to 90m
- 1080P@60Hz Transmission up to 120m
- Bi-Directional IR Pass-Back
- S/PDIF Digital Audio Output
- HDMI Loop Output
- Designed for 24/7 Continuous Operation
- Lightning,Surge,ESD Protection
Technical Details
- Power Supply: DC5V/1A
- Power Consumption: TX：4W，RX：4W
- HDMI Compliance: HDMI2.0，HDMI2.2
- HDMI resolution: 576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、1080p@50/60Hz、 3840×2160@24/25/30/50/60Hz 4096×2160@24/25Hz、3440×1440、 2560×1440、 2560×1080、2048×1080、 1920×1440、1280×960、1280×800、 1280×768、1680×1050、1360×768、 1366×768
- Supports Audio Formats: LPCM/DTS-H D/DTS-Audi／ Dolby Digital 5.1CH／Dolby Atmos
- Input and output TMDS signal: 0.7~1.2Vp-p（TMDS）
- Input and output DDC signal: 5Vp-p（TTL）
- Input cable length: ≦8m（AWG24）
- Output cable length: ≦8m（AWG24）

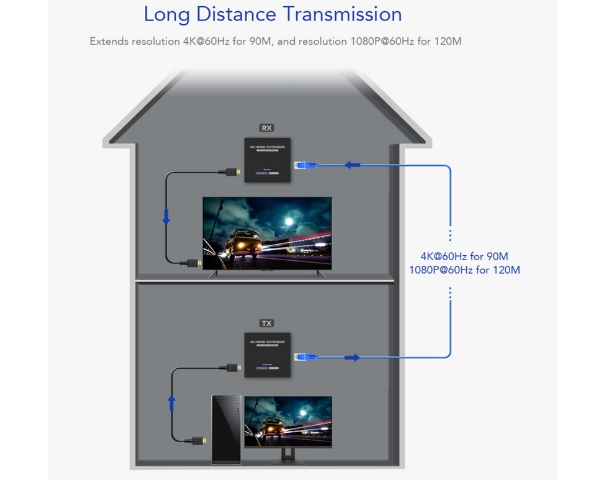

- CAT6/6A/7 Transmission Distance
- 4K@60Hz transmission 90m
- 1080p@60Hz transmission 120m
- Protection Level
- 1a Contact discharge level 3
- 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2
- Working temperature: -20~60℃
- Storage temperature: -30~70℃
- Humidity (no condensation): 0～90%RH
- Dimension: 105.5(L) x 102.5(W) x 20(H)mm
- Material: Iron
- Color: Black
- Weight: TX: 243g，RX: 243g
| HDD Set-type | Set (Rx + Tx) |
|---|---|
| HDD Transmit Type | Point to Point ( Network Cable ) |
| HDD HDMI Loop | Yes |
| HDD Maximum Distance | 90m, 120m |
| HDD Maximum Resolution | 1080p@60Hz, 4K@60Hz |
| HDD RX Power Type | 5V PLUG |
| HDD Support IR | Yes |
| Manufacturer | Lenkeng |
