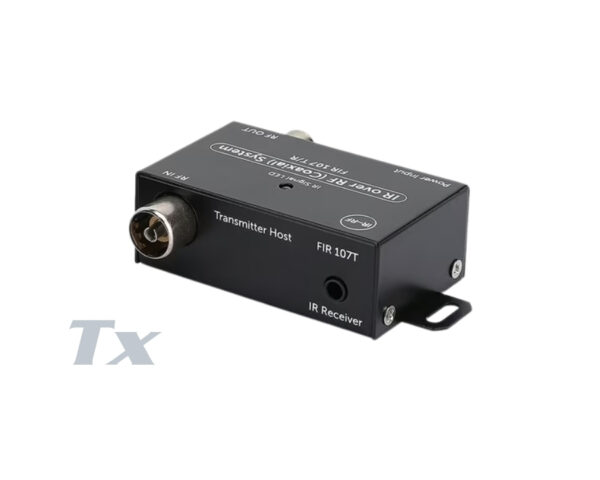

IR Extender over Coax (Tx) Transmitter Host for FIR107
For Operation needs:
- DC Pass Splitters
- RF Amplifiers with Return Path option
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The FIR 107 T/R system is an IR Extender over Coaxial System that allows user to control audio/video source from another room using your exisng remote control. This system consist of 2 main parts namely FIR 107R (Receiver Host) and FIR 107T (Transmier Host). FIR 107R (Receiver Host) Place at the same locaon as A/V system.
Example: Living Room Living room- FIR 107R (Receiver Host) is connected to the coaxial cabling and the IR Emier on FIR 107R is to be pasted on the IR sensor of the A/V system. FIR 107T (Transmier Host)- Place at another locaon (example: bedroom) where you want to remote control the A/V system (living room). Room – FIR 107T (Transmier Host) is connected to the coax cabling in the room where you want to control your A/V system (living room). The IR Receiver on FIR 107T receive signal from remote control and send signal to the living room.
Note: The remote control has to be line of sight with the IR Receiver in order to control well.
Note: This IR extender kit do not extend the Audio and video signal. User has to prelay cable (HDMI, RCA cables) from A/V systems in the living room to TV in the bedroom.
Technical Details
FIR107T – Transmitter Host
- Dimensions: 78 × 36 × 22 mm
- Weight (unit): 65g
- Connectors: IEC60 169.2 (9.5mm), 3.5mm Stereo Jack
- IR Receiver Cable Frequency: 30–60 kHz
- IR Receiver Cable Length: 3.0 m
- IR Receiver Cable Weight: 45g
- Power Supply Input: AC 110/220V
- Power Supply Output: DC 5V 500mA
- Power Supply Cable Length: 1.2 m
- Power Supply Weight: 68g
- FIR107T Total Weight: 180g
Package Includes
- 1 x RF Transmitter Module (FIR-107T)
- 1 x IR Single eye Emitter Cable 1.0m
- 1 x IR Single Head Receiver Cable 3.0m
- 1 x Power Adapter DC 5V 500mAh 1.2m
- 1 x User Manual
| Manufacturer | JYC |
|---|
