IR Extender with 1 IR and 4 IR Emitters HT1Y4
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The Professional IR Extender system offers several new features including smaller form factor, aesthec designs, and increased compability. Like other IR Extender products in the our product range, this professional system support dual band IR signals and also RC-MM Protocol.
Note: RC-MM is a new IR protocol with much shorter waves than a typical IR signal and uses less power. lt is becoming more prevalent with major brands. Mulple Funcons: Modern family loves to hide all their home theater Audio/ video systems and cables in cabinet to keep things neat and dy. However, remote controlling the A/V systems in the cabinet can be a frustraon due to the inability.

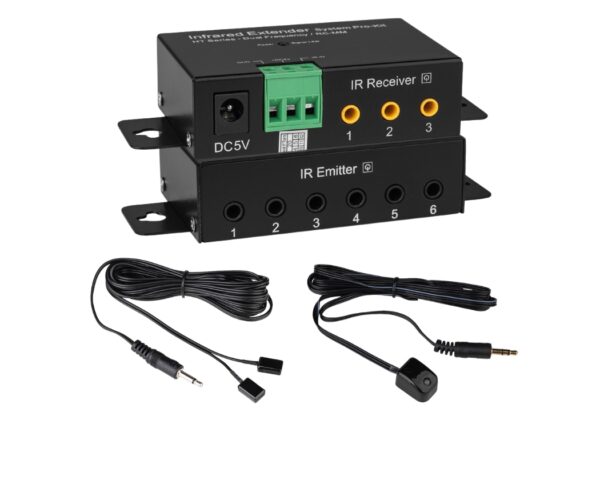

This kit includes an IR receiver, a connecng block (which serves as a signal repeater), and IR emitters. The IR receiver is a small target device which communicate directly with your remote control. It can be mounted on your HDTV’s bezel or anywhere in the room where you will want to point your remote to but the IR Receiver must be in lineof-sight with your remote control.
The IR receiver receives your remote control’s commands and sends the signal to the connecng block (which you can hide behind walls or cabinet). The connecng block then repeats and sends the same signal through the IR emitter (connected to the block). Your A/V system will received the signal/command from the emitter and react accordingly. (IR Emitter to be pasted on the IR sensor of the parcular A/V system).
Technical Details
- Receiving Frequency:34kHz ~ 60kHz (RC-MM protocol)
- Eming Frequency:38 kHz
- Receiving Distance: > 25 feet or 8 meter
- Eming Distance: > 4 inches or 10 cm
- Power Consumpon: 5VDC 100mA max
- Jack Size: 3.5mm
- Main Block: 103(L) x 47(W) x 23(H) mm
- Receiver cable length: 1.5mm
- Dual eye Emitter cable length: 3.0m
- Main Block: 97g
- Receiver cable: 12g
- Dual eye Emitter cable: 22g x 2
- DC Adaptor: 60g

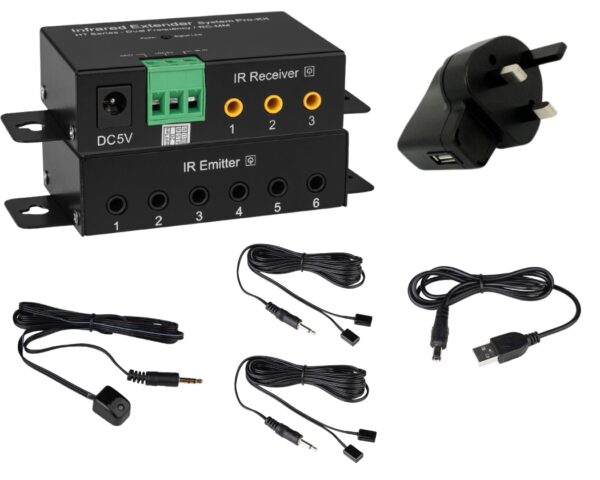

Package Includes
- 1 x Main Block
- 1 x IR Receiver cable
- 2 x Dual Eye IR Emitter cable
- 1 x DC5V adaptor
- 1 x User Manual
| Manufacturer | JYC |
|---|
