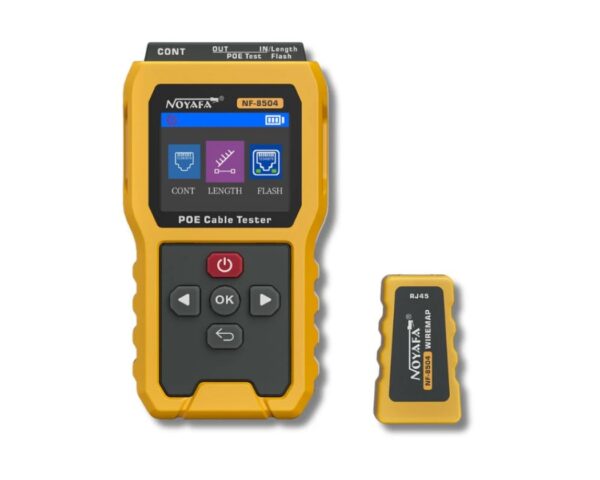

NOYAFA Network Cable Tester Rechargeable NF-8504
- Wire Mapping
- Length Test
- POE Test
- Port Flash Test
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

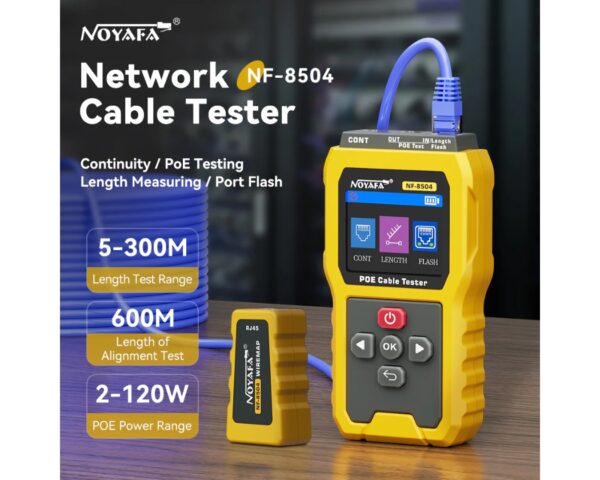

Noyafa NF-8504 PoE Cable Tester – Continuity, Length, Port Flash & PoE Diagnostics, 2.4″ Full-Color LCD Display
- Continuity & Wiremap: Instantly verify each pair on CAT5/CAT6 cables for open/short or miswiring, preventing downtime.

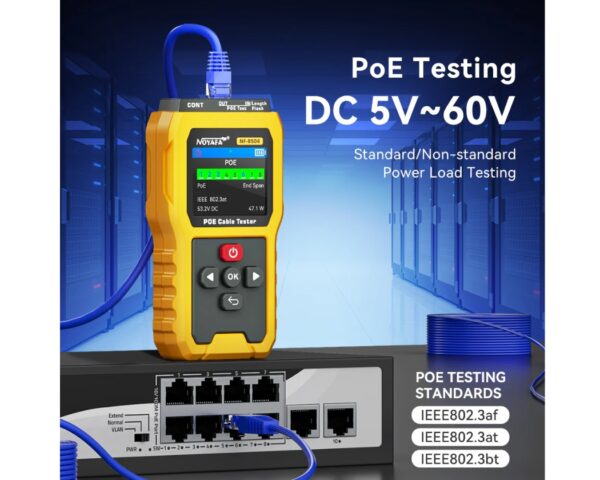

- PoE Testing (DC 5–60 V): Support IEEE802.3af/at/bt standards and non-standard loads; ensures safe PoE power delivery.

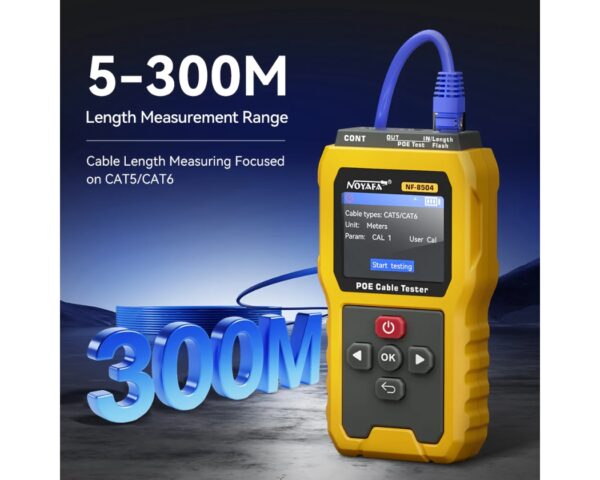

- Length Measurement (5–300 m): Pinpoints cable breaks or distance to fault up to 300 m, saving time on cable runs.

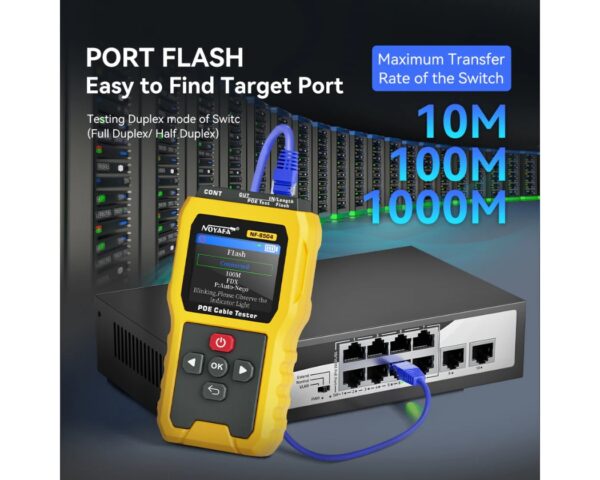

- Port Flash (10/100/1000 Mbps): Quickly identify active switch ports and duplex mode (full/half) by flashing link LEDs.

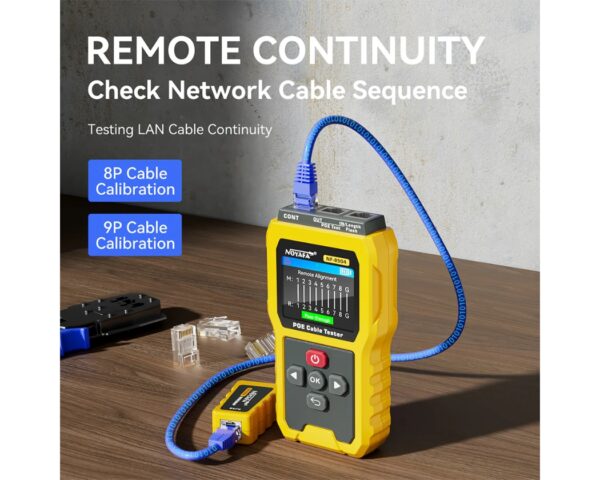

- Remote Continuity Alignment: Includes a detachable RJ45 remote to check cable sequence in-wall or across patch panels.
- 2.4″ Full-Color LCD: Large, easy-to-read screen displays test modes, icons and results at a glance—even in low light.
- Anti-Burning Protection (≤ 60 V): Safeguards the tester against accidental live voltage up to 60 V, prolonging device lifespan.

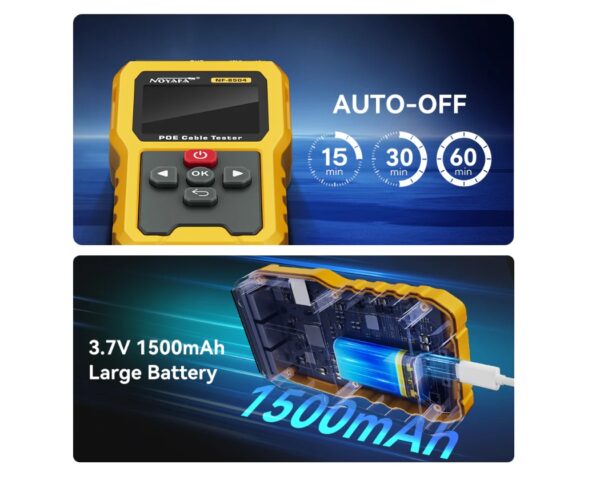

- 3.7 V 1500 mAh Rechargeable Battery: Delivers hours of continuous use; USB-C charging means no more disposable batteries.
- Auto-Off: Conserves battery life by powering down after 5/15/30/60 minutes of inactivity.
| POE Network Cable Tester – Specifications | |
|---|---|
| LCD Display | 2.4″ Color Screen |
| Cable Type | CAT5 / CAT6 |
| Continuity Testing Range | Up to 600m |
| Supports STP/UTP | Yes (√) |
| Short Circuit Detection | Yes (√) |
| PoE Voltage Range | DC 5V–60V |
| PoE Standards Supported | IEEE802.3af / at / bt |
| Load Testing Range | 2–80W |
| PoE Output Detection | Yes (√) |
| Power Supply Pin Detection | Yes (√) |
| Port Flash Function | Yes (√) |
| Length Measurement Range | 5–300m |
| Low Battery Indicator | Yes (√) |
| Battery | 3.7V 1500mAh Lithium |
| Auto Power Off | 15 min / 30 min / 60 min / OFF |
| Anti-Burning Protection | DC 60V |
| Dimensions | 138.5 × 76 × 30 mm |
