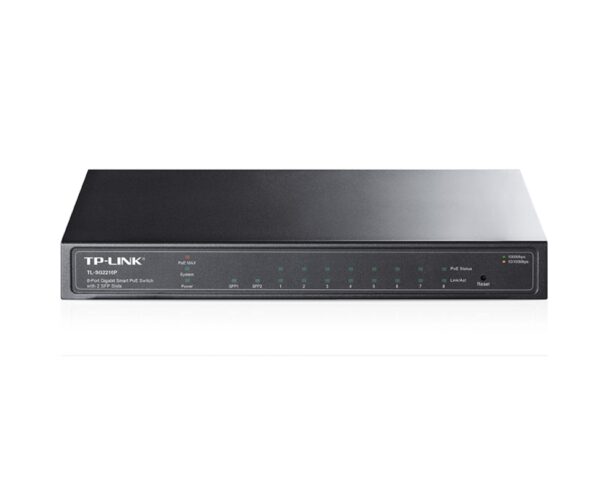

Omada 8-Port Gigabit PoE Switch with 2 SFP Slots TL-SG2210P
- 8 Gigabit POE Ports
- 2 SFP
- 53W POE Budget
- Cloud Managed
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The TP-Link Omada TL-SG2210P is a smart managed Gigabit PoE switch with 8 PoE ports, 2 SFP uplink slots and a 53W PoE budget. Featuring VLANs, ACLs, QoS, static routing and Omada cloud management, it is ideal for CCTV systems, wireless networks, VoIP deployments and business environments.
Technical Features
- 8 Gigabit PoE Ports
- 2 Gigabit SFP Uplink Slots
- 53W Total PoE Budget
- IEEE802.3af PoE Support
- Omada SDN Cloud Management
- Static Routing
- VLAN and ACL Support
- Advanced QoS Features
- IGMP Snooping
- Enterprise Security Features
- IPv4 and IPv6 Support
- Fanless Design
Technical Details
- Standards and Protocols:
- IEEE802.3i
- IEEE802.3u
- IEEE802.3z
- IEEE802.3ab
- IEEE802.3ad
- IEEE802.3af
- IEEE802.3x
- IEEE802.1d
- IEEE802.1s
- IEEE802.1w
- IEEE802.1q
- IEEE802.1p
- IEEE802.1x
- Interfaces:

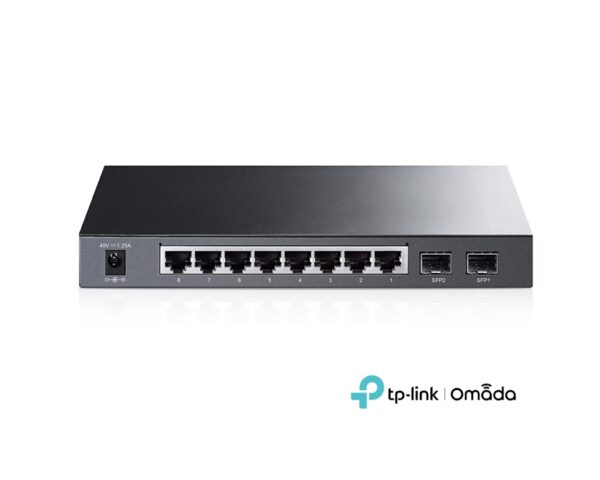

- 8 × 10/100/1000Mbps RJ45 Ports
- 2 × 1000Mbps SFP Slots
- Auto Negotiation
- Auto MDI/MDIX
- Network Media:
- 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
- 100BASE-TX/1000BASE-T: UTP Category 5, 5e Or Above Cable (Maximum 100m)
- 1000BASE-X: MMF, SMF
- Fan Quantity: Fanless
- Power Supply: 100-240VAC, 50/60Hz
- External Power Adapter: 48VDC / 1.25A
- PoE Standard: IEEE802.3af
- PoE Ports: 8
- PoE Budget: 53W
- Dimensions: 209 × 126 × 26mm
- Mounting: Desktop / Wall Mount
- Maximum Power Consumption:
- 63.4W (PoE On)
- 10.4W (PoE Off)
- Switching Capacity: 20Gbps
- Bandwidth / Backplane: 20Gbps
- Packet Forwarding Rate: 14.9Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 512KB
- Jumbo Frame: 9216 Bytes
- Quality of Service:
- 802.1p CoS Priority
- DSCP Priority
- 4 Priority Queues
- SP Scheduling
- WRR Scheduling
- SP+WRR Scheduling
- Port-Based Rate Limiting
- Flow-Based Rate Limiting
- Voice VLAN
- L2 and L2+ Features:
- 16 IPv4/IPv6 Interfaces
- Static Routing
- 32 IPv4/IPv6 Static Routes
- DHCP Server
- DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Static ARP
- Proxy ARP
- Gratuitous ARP
- Static Link Aggregation
- 802.3ad LACP
- Up To 8 Aggregation Groups
- Up To 8 Ports Per Group
- STP (802.1D)
- RSTP (802.1W)
- MSTP (802.1S)
- TC Protect
- BPDU Filter
- BPDU Protect
- Root Protect
- Loopback Detection
- 802.3x Flow Control
- Port Mirroring
- CPU Mirroring
- One-To-One Mirroring
- Many-To-One Mirroring
- Flow-Based Mirroring
- Ingress/Egress/Both Monitoring
- DLDP
- LLDP
- LLDP-MED
- Advanced Features:
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- VLAN Features:
- Supports Up To 512 VLANs Simultaneously
- 4K VLAN IDs
- 802.1Q VLAN
- Access Control Lists:
- L2-L4 Packet Filtering
- MAC ACL
- IP ACL
- TCP/UDP Port Filtering
- 802.1p Filtering
- DSCP Filtering
- Protocol Filtering
- VLAN ID Filtering
- Time-Based ACL
- Security Features:
- SSH v1/v2
- SSL v2/v3
- TLS v1
- Port Security
- Storm Control
- 802.1X Authentication
- RADIUS Authentication
- IP-MAC-Port-VID Binding
- ARP Inspection
- DHCP Snooping
- DoS Protection
- IPv6 Features:
- IPv6 Static Routing
- IPv6 ACL
- Dual IPv4/IPv6 Stack
- IPv6 Interface
- MLD Snooping
- Neighbor Discovery
- Path MTU Discovery
- ICMPv6
- TCPv6
- UDPv6
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet IPv6
- SNMP IPv6
- SSH IPv6
- SSL IPv6
- HTTP/HTTPS IPv6
- IPv6 TFTP
- Multicast Features:
- IGMP Snooping V1/V2/V3
- Management Features:
- Omada App Support
- Omada Cloud Controller
- OC200 Controller Support
- OC300 Controller Support
- Omada Software Controller
- Cloud Access
- Zero-Touch Provisioning
- Web GUI
- CLI Management
- SNMP v1/v2c/v3
- SNMP Trap/Inform
- RMON
- CPU Monitoring
- Cable Diagnostics
- EEE
- SNTP
- System Log
- MIB Support:
- RFC1213 MIB II
- RFC1493 Bridge MIB
- RFC2674 P/Q Bridge MIB
- RFC2620 Radius Accounting Client MIB
- RFC2618 Radius Authentication Client MIB
- RFC2925 Remote Ping And Traceroute MIB
- TP-Link Private MIBs
- RMON MIB RFC1757
- Certifications: CE, FCC, RoHS
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% Non-Condensing
- Storage Humidity: 5% ~ 90% Non-Condensing
Package Contents:
- TL-SG2210P
- Power Adapter
- Installation Guide
- Resource CD
- Rubber Feet
| Manufacturer | Omada TP-Link |
|---|---|
| Switch Type | Cloud Managed |
| Speed | Gigabit |
| No of SFP Ports | 2 |
| POE Budget | 53W |
| Power over Ethernet (PoE) | PoE |
| POE Ports | 8 |
| Device Total Ports | 8, 10 |
| POE Switch | Yes |
| SFP Ports | With SFP Ports |
| Mount Type | Desktop |
